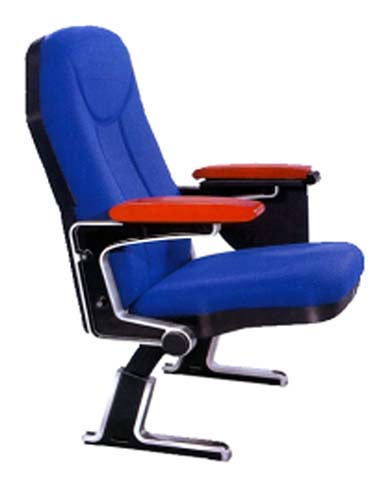

Name: Fixed Ganged Floor-Mounted Auditorium Chair with Blue Fabric Upholstery and Wood-Effect Armrests
Brand: Yaqi Furniture
SKU: YVQVKT

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 760 × 1010 mm
Seat center-to-center width	590 mm
Seat height from floor	440 mm
Seat depth	480 mm
Backrest height from seat surface	570 mm
Armrest width	85 mm
Armrest height from floor	600 mm
Seat cushion thickness	150 mm
Backrest cushion thickness	140 mm
Steel support frame tube thickness	2.5 mm
Floor mounting footprint per leg	120 x 80 mm
Ganged row lateral connection offset	20 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per seat	22 kg
Static vertical load capacity per seat	1500 N
Recommended maximum occupant weight	160 kg
Seat foam density	55 kg/m³
Back foam density	45 kg/m³
Fabric abrasion resistance	50000 cycles
Seat tip-up return cycle life	50000 cycles
Structural warranty period	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Woven commercial blue polyester fabric
Seat padding	Cold-cured molded polyurethane foam
Backrest padding	Contoured molded polyurethane foam
Armrest tops	Solid wood-effect panel with polished red-orange finish
Support frame	2.5mm cold-rolled steel with black powder coating
Frame trim	Polished chrome-plated steel edging
Seat pivot mechanism	Steel hinge with gravity/spring return
Internal seat shell	15mm thick molded plywood
Internal back shell	15mm thick molded plywood
Floor mounting hardware	Zinc-plated steel expansion bolts
Seat underside trim	Black impact-resistant polypropylene cover
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat operation	Gravity-assisted automatic tip-up return
Mounting configuration	Fixed permanent floor-mounted ganged row installation
Ganged row connection	Interlocking steel brackets to connect adjacent seats
Ergonomic support	Contoured backrest with integrated lumbar curve
Armrest function	Fixed flat wide armrests on both seat sides
Row clearance	Tip-up seat provides 300mm clear aisle space when folded
Noise damping	Rubber pivot bushings to reduce seat return noise
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference hall seating	Permanent ganged installation for corporate and government meeting spaces
Auditorium and theater use	Fixed row seating for lecture halls, school auditoriums and performance venues
Cinema screening rooms	Durable upholstered seating for public movie theater auditoriums
University lecture halls	High-traffic fixed seating for classroom and lecture room installations
Hospital and public assembly spaces	Heavy-duty seating for waiting halls and public gathering areas
Government assembly chambers	Formal fixed seating for council chambers and official meeting rooms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Furniture – Seating for public areas, strength and durability test methods
EN 1021-1:2014	Upholstered furniture ignitability resistance (cigarette test) for public spaces
EN 1021-2:2014	Upholstered furniture ignitability resistance (match test) for public assembly areas

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood armrest components
GB/T 24821-2009	Auditorium seating general technical requirements, baseline for structural safety
GB 20286-2006	Fire performance requirements for public venue upholstered furniture, mandatory for assembly spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood armrest components;
2. GB/T 24821-2009: Auditorium seating general technical requirements, baseline for structural safety;
3. GB 20286-2006: Fire performance requirements for public venue upholstered furniture, mandatory for assembly spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-FAB-WDARM-590

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-FAB-WDARM-590

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-FAB-WDARM-590Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fixed Ganged Floor-Mounted Auditorium Chair from Yaqi Furniture, model AUD-FAB-WDARM-590, delivers purpose-built public venue seating with a polished, cohesive visual profile suited to formal and high-traffic spaces. Designed for continuous row installation, each unit features a deep blue woven commercial polyester upholstered seat and back, paired with solid wood-effect armrest tops finished in a polished red-orange tone that adds warm, refined contrast to the seating line. The support structure is finished in matte black powder-coated steel, accented with polished chrome-plated steel edging for a clean, professional appearance across installed rows. Each seat is dimensioned for balanced personal space and efficient row layout, with fixed flat wide armrests positioned on both sides for consistent user support. Construction prioritizes long-term durability for frequent public use. The internal seat and back shells are formed from 15mm molded plywood, wrapped in cold-cured molded polyurethane foam for the seat cushion and contoured molded polyurethane foam for the backrest, delivering structured, even support. The 2.5mm cold-rolled steel support frame is finished with a scratch-resistant black powder coating, while adjacent seats connect via interlocking steel brackets to create stable, uniform ganged rows. The seat pivot uses a steel hinge with gravity and spring return, fitted with rubber pivot bushings to minimize operational noise. The linen-look woven polyester upholstery is engineered to withstand repeated use, with tested abrasion resistance aligned to high-traffic public space requirements. Functional design supports smooth venue operations and occupant comfort. The contoured backrest integrates a built-in lumbar curve to support extended seated use, while the gravity-assisted automatic tip-up seat returns to a folded position when unoccupied, opening 300mm of clear aisle space per row to improve foot traffic flow and simplify cleaning between events. The fixed floor-mounted installation creates a permanent, stable seating layout that resists shifting even with heavy, regular use. This model is suited for a wide range of commercial and institutional settings, including corporate and government conference halls, school auditoriums, lecture halls, performance theaters, public cinema screening rooms, hospital waiting and assembly areas, and formal government council chambers. It is engineered to accommodate high daily occupancy volumes, with weight capacity tailored to diverse user groups. For procurement planning, note that each seat is packaged across two cartons, with a stated assembly time of 40 minutes per set. Shipping and staging plans can be calibrated around the provided packaged weight and carton volume metrics, with container load calculations available for bulk orders to support large-scale installation project planning.
