PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 500 × 480 mm
Seat height	460 mm
Upholstered body thickness	460 mm
Individual channel segment width	175 mm
Leg height	100 mm
Leg footprint per unit	40 x 40 mm
Edge radius on seat corners	25 mm
Base trim width	20 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static weight capacity	300 kg
Seating capacity	3 adults
Net weight	20 kg
Foam density (seat fill)	45 kg/m³
Foam thickness (seat/body)	80 mm
Surface abrasion resistance (upholstery)	50000 double rubs
Seam stitch pitch	8 stitches per 30mm
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery surface	Dark gray PU faux leather, smooth matte semi-gloss finish
Internal support frame	15mm thick plywood panel core under foam padding
Seat fill material	High-density polyurethane foam, fully wrapped channel segments
Support legs	Polished chrome-plated steel, square block profile
Perimeter base trim	20mm wide polished chrome-plated steel strip, full perimeter of bench base
Stitching thread	High-tensile polyester thread, matched dark gray color for channel seams
Floor protection pads	Rubber anti-scuff pads fitted to base of each metal leg
Internal frame hardware	Zinc-plated steel screws and brackets connecting legs to internal frame
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating function	Fixed-height multi-person seating, no recline or adjustable components
Floor protection	Integrated rubber leg pads prevent hard floor scratching and reduce movement noise
Assembly requirement	Knockdown assembly requiring leg attachment to pre-built upholstered body with included hardware
Cleaning suitability	Spot-cleanable smooth upholstery surface, compatible with mild leather cleaning agents
Weight distribution	Continuous internal frame evenly distributes seated load across all four support legs
Placement versatility	Low-profile armless design fits under windows, at bed ends, or in entryways without arm obstruction
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Bedroom end-of-bed placement	Sized to align with king or queen bed width for dressing and supplementary seating
Residential entryway seating	Low-profile narrow profile fits standard hallway widths for shoe removal seating
Commercial lounge waiting area	3-person capacity and durable upholstery suitable for office or hotel reception spaces
Living room supplementary seating	Armless backless form can be placed under window sills or in front of media consoles
Walk-in closet seating	Compact height and length fit in closet aisles for dressing assistance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture – Strength, durability and safety for domestic seating
EN 1022:2018	Applicable standards and test results require confirmation
EN 13759:2003	Furniture – Upholstered furniture – Ignitability of upholstery components

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal plywood frame components
GB/T 16799-2008	Performance standard for polyurethane synthetic leather used in furniture upholstery
GB 28007-2011	Safety standard for children's furniture if used in family spaces, requires no sharp edges

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal plywood frame components;
2. GB/T 16799-2008: Performance standard for polyurethane synthetic leather used in furniture upholstery;
3. GB 28007-2011: Safety standard for children's furniture if used in family spaces, requires no sharp edges;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UB-BNCH-001-CHG-MTL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UB-BNCH-001-CHG-MTL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UB-BNCH-001-CHG-MTLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

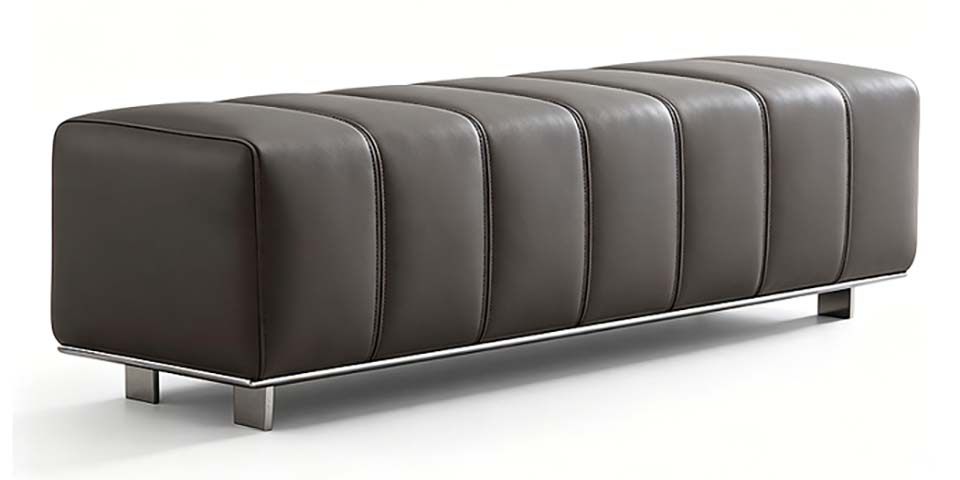

The Dark Gray Vertical Channel-Tufted Upholstered Backless Bench with Polished Metal Legs, model UB-BNCH-001-CHG-MTL, is a contemporary, minimalist unbranded upholstered bench designed for flexible multi-occupant seating. Its streamlined, armless, backless form features evenly spaced vertical channel tufting across the full length of the seat, with 25mm rounded corners on all seat edges for a soft, polished silhouette. A 20mm wide polished chrome-plated steel trim runs the full perimeter of the bench base, matching the low-profile square block polished chrome-plated steel legs that lift the seat to a 460mm height, with a total product dimension of 1400 x 500 x 480 mm. The bench is constructed for long-term durability, with a 15mm thick plywood internal seat frame secured to legs using zinc-plated steel screws and brackets, with at least two fixing points at every major joint. The seat is padded with 80mm thick 45 kg/m³ high-density polyurethane foam formed into fully wrapped individual channel segments, each 175mm wide, upholstered in dark gray PU faux leather with a smooth matte semi-gloss finish. Channel seams use color-matched high-tensile polyester thread stitched at a consistent 8 stitches per 30mm, while the upholstery delivers 50000 double rubs of abrasion resistance. Each leg is fitted with rubber anti-scuff floor protection pads to prevent hard surface damage and reduce movement noise. This fixed-height bench seats 3 adults with a 300 kg static weight capacity, with its continuous internal frame distributing seated weight evenly across all four legs. The smooth upholstery surface supports spot cleaning with mild leather cleaning agents, and the unit ships in knockdown format requiring leg attachment to the pre-built upholstered body with included hardware, with an assembly time of 40 minutes per set. Shipped across 2 cartons, the set has a net weight of 20 kg, a packaged gross weight of 120 kg, and a packaging volume of 0.8 m³. The low-profile, obstruction-free armless design fits a wide range of spaces: it aligns with king or queen bed widths for end-of-bed dressing seating, fits standard hallway widths for residential entryway shoe removal, suits office or hotel reception waiting areas, tucks under window sills or in front of media consoles for living room supplementary seating, and fits within walk-in closet aisles for dressing support. For procurement, note the assembly requirement, compatibility with intended space dimensions, and consistent finish alignment across units if ordering for coordinated multi-space installations.

Dark Gray Vertical Channel-Tufted Upholstered Backless Bench with Polished Metal Legs Specifications
