PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2400 x 1800 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	145 kg
Distributed desktop load	80 kg
Drawer load per drawer	25 kg
Credenza top load	60 kg
User capacity	1 person
Drawer slide cycle target	50000 cycles
Edge impact resistance target	45 kg impact
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	Wood-grain high-pressure laminate on 50 mm engineered-wood substrate with matching edge band
Rear inset panel	Dark gray laminate or faux-leather desk pad panel set flush into the worktop
Cabinet carcass	25 mm dark gray and light gray laminated particleboard or MDF panels
Drawer fronts	Three horizontal light gray laminate drawer fronts with fine separation gaps
Support base	Dark charcoal laminate panel support with angled right end and floor-stabilizing plinth
Edge protection	2 mm PVC or ABS edge banding on exposed desktop and cabinet edges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main desk and left return create separate computer work, writing, and document-handling zones
Integrated drawer storage	Three drawer fronts provide personal storage, with the lower drawer suitable for suspension files
Panel-support knee bay	Open central under-desk space allows seated access and chair push-in clearance
Rear cable and equipment zone	Dark rear inset supports placement of monitor, power, and cable-routing accessories

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for a private manager office where computer work, filing, and visitor discussion occur at one L-shaped station
Senior administrative workspace	Supports monitors, documents, printer accessories, and personal filing in a compact side-return layout

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety guidance	EN 527
Mechanical test guidance	EN 527
Surface emission guidance	EN 16516

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission guidance	GB/T 39600 E1
Physical property guidance	GB/T 3324
Safety and stability guidance	GB/T 10357

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission guidance: GB/T 39600 E1;
2. Physical property guidance: GB/T 3324;
3. Safety and stability guidance: GB/T 10357;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-WC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-WC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-WCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

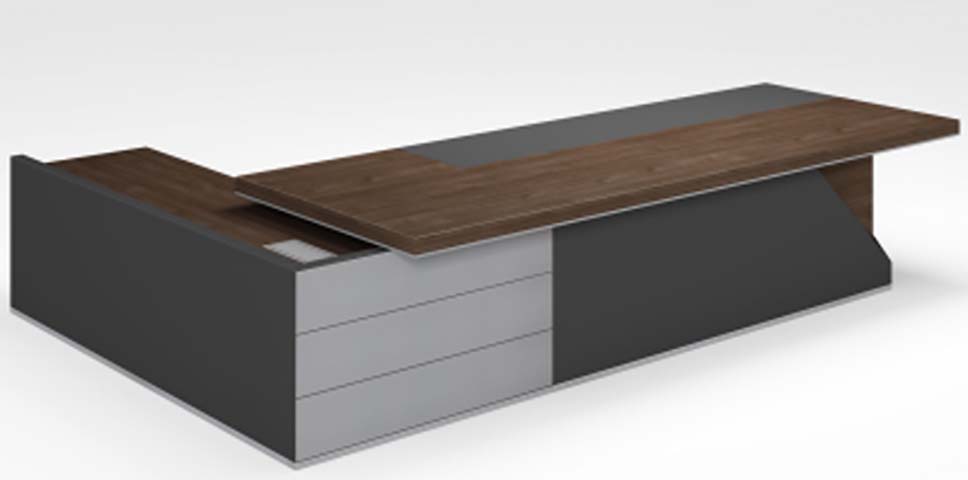

The L-Shaped Executive Desk with Integrated Storage Credenza, model ED-L2400-WC, presents a modern executive workstation defined by a broad wood-grain worktop and a coordinated gray storage system. Its layout pairs the main desk with a left return, creating distinct zones for computer work, writing, and document handling without requiring separate tables in the room. The rear work surface includes a flush dark gray laminate or faux-leather inset panel that supports monitor placement and cable accessories, while three light gray drawer fronts add a clean, horizontal storage element with fine separation gaps. A dark charcoal panel-support base with an angled right end and floor-stabilizing plinth gives the desk a substantial visual anchor. Construction uses a wood-grain high-pressure laminate top on a 50 mm engineered-wood substrate, finished with matching edge banding. Exposed desktop and cabinet edges are protected by 2 mm PVC or ABS edge banding. Cabinet construction uses 25 mm laminated particleboard or MDF panels in dark and light gray, and the main support section combines an 80 mm panel form with a 2 mm metal wall. The overall footprint is 2400 x 1800 x 750 mm, with 680 mm of knee height and 900 mm of knee width at the main seat. The open central under-desk bay allows seated access and space to push in a task chair. Integrated storage is built directly into the workstation. Three drawers provide personal storage, and the lower drawer accommodates suspension files for office paperwork. The credenza top provides a secondary load-bearing surface, while the rear inset and 80 mm cable opening support a tidier monitor and power setup. A cable tray with 120 mm depth offers room for routed cables and related equipment. The desk is intended for one user, with a distributed desktop load of 80 kg, a 60 kg credenza top load, and a 25 kg load per drawer. Its design targets include 50,000 drawer-slide cycles and 45 kg edge impact resistance. This configuration is well suited to private manager offices where computing, filing, writing, and visitor discussion take place in one location. It also fits senior administrative workspaces that need monitors, documents, printer accessories, and personal filing within a compact side-return arrangement. Procurement planning should account for its 145 kg net weight and large packaged components. Reference logistics list one set across two cartons, with a packaged gross weight of 180 kg and 1 cubic meter of packaging volume; the main top carton is sized at 2500 x 1050 x 350 mm, with the return and pedestal packed separately. Assembly time is referenced at 40 minutes per set, so delivery access, floor protection, and on-site assembly support should be confirmed before purchase.

L-Shaped Executive Desk with Integrated Storage Credenza Specifications
