PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Main desktop distributed static load	80 kg
Side-return top distributed static load	60 kg
Pedestal drawer or shelf load	25 kg per storage level
Recommended seated user capacity	1 person
Surface vertical impact resistance	45 N drop load
Horizontal stability verification load	450 N
Hardware cycle target	80,000 drawer or sliding-door cycles
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25 mm engineered wood-core board with light oak-grain melamine surface and 2 mm impact-resistant edge banding
Cabinet carcass	18 mm melamine-faced engineered wood panels in light oak and matte light grey
Vertical support and modesty panel	Matte light grey engineered wood panels with concealed floor-bearing edges
Storage fronts and internal compartments	Light grey melamine panels with horizontal-grooved sliding or drawer fronts
Ventilation grille	Black polymer or powder-coated metal horizontal-slot grille set into the cabinet side
Joining hardware	Cam-lock connectors, corner brackets, screws and adjustable floor glides assumed for flat-pack office construction

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Provides a primary 2200 mm laptop and writing zone with a 1800 mm side return for documents, meetings or peripheral equipment
Integrated storage support	Left return is supported by a low cabinet body intended for files and office supplies, with visible grooved front panels
Cable and equipment ventilation	The side cabinet includes a horizontal-slot ventilation grille to support CPU or powered equipment placement
Privacy and leg-space separation	A full-width light grey modesty panel shields the seated area while retaining an open central knee bay

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	2300 x 950 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and private manager office	Suited to a manager or director room where laptop work, document review and side-return storage are required in one workstation
Professional meeting and consultation layout	The return can accommodate lateral discussions or temporary document placement while keeping the user centered at the main work surface

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desks safety, strength and durability	Applicable European reference for a commercial seated work desk used in office environments
EN 527-2 office desks mechanical safety, strength and durability	Suggested acceptance basis for static load, stability and repeated-use structural tests
EN 717-1 wood-based panels formaldehyde release	Suggested panel emission reference when project specifications use European environmental criteria
EN 15372 furniture durability for non-domestic storage	Applicable to the integrated storage cabinet if it is specified for contract-office use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 wooden furniture general technical requirements	Applicable acceptance reference for panel dimensions, edge finishing, stability and workmanship of wooden office furniture
GB/T 3325-2017 metal furniture general technical requirements	Applicable if metal rails, brackets or support hardware are included in the final BOM
GB 18580-2017 formaldehyde emission for wood-based panels	Suggested procurement verification for all engineered wood boards used in desk and cabinet panels
GB/T 10357 furniture mechanical test methods	Suggested test framework for desktop load, stability, durability and structural strength verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017 wooden furniture general technical requirements: Applicable acceptance reference for panel dimensions, edge finishing, stability and workmanship of wooden office furniture;
2. GB/T 3325-2017 metal furniture general technical requirements: Applicable if metal rails, brackets or support hardware are included in the final BOM;
3. GB 18580-2017 formaldehyde emission for wood-based panels: Suggested procurement verification for all engineered wood boards used in desk and cabinet panels;
4. GB/T 10357 furniture mechanical test methods: Suggested test framework for desktop load, stability, durability and structural strength verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2400-SIDE-RETURN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2400-SIDE-RETURN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2400-SIDE-RETURNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

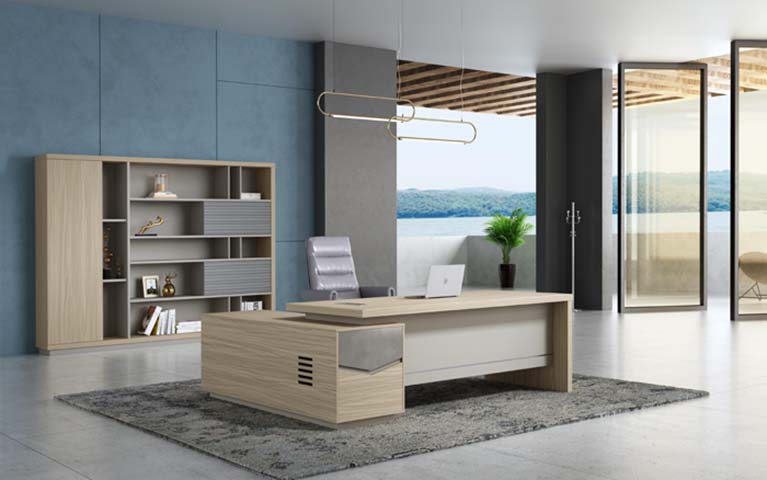

This L-shaped executive office desk combines a broad primary workspace with an integrated side-return cabinet, creating a coordinated workstation for private offices and managerial environments. Its layout places the user at the main desk while the return provides a distinct area for documents, meetings, or peripheral equipment. A full-width matte light grey modesty panel separates and shields the seated zone, while the open central knee bay keeps the primary position accessible and uncluttered. The desk uses light oak-grain engineered wood panels paired with matte light grey panels, giving the workstation a contemporary executive appearance. The desktop features a light oak-grain melamine surface with impact-resistant edge banding, while the cabinet carcass combines light oak and light grey melamine-faced panels. Storage fronts and internal compartments use light grey panels with horizontal-grooved sliding or drawer fronts, adding subtle texture to the side cabinet. Black ventilation detailing and metal hardware provide understated contrast. The support structure uses panel sections, cam-lock connectors, corner brackets, screws, and adjustable floor glides suited to flat-pack office construction. Functionally, the low cabinet supports the left return and offers storage for files and office supplies. A horizontal-slot black polymer or powder-coated metal grille is set into the cabinet side, supporting placement of CPU or powered equipment within the storage area. The work surface includes cable management provision through an opening and cable tray, helping keep the desktop organized. The stated finished top thickness is 50 mm, with 680 mm high and 900 mm wide knee clearance at the main seat. The desk is intended for one seated user and carries published distributed static load capacities of 80 kg on the main desktop, 60 kg on the side-return top, and 25 kg per storage level. The product is well suited to a manager or director office where laptop work, paperwork, consultation, and storage need to be consolidated in one workstation. The return also supports lateral discussions or temporary document placement without moving the user away from the main work surface. It can be considered for professional private offices, consultation rooms, and executive residential studies where a larger, built-in look is preferred. Procurement planning should account for the desk’s scale and multi-carton delivery. The reference packaged gross weight is 180 kg per set, with a packaging volume of 1 m³ and reference assembly time of 40 minutes per set; logistics data notes a 4-carton reference, while another package reference identifies 2 cartons, so buyers should confirm the actual packing configuration before arranging receiving, lift access, and installation. Site access should be checked against the largest carton, and suitable delivery handling and assembly support should be arranged.

L-Shaped Executive Office Desk with Integrated Side Storage Cabinet Specifications
