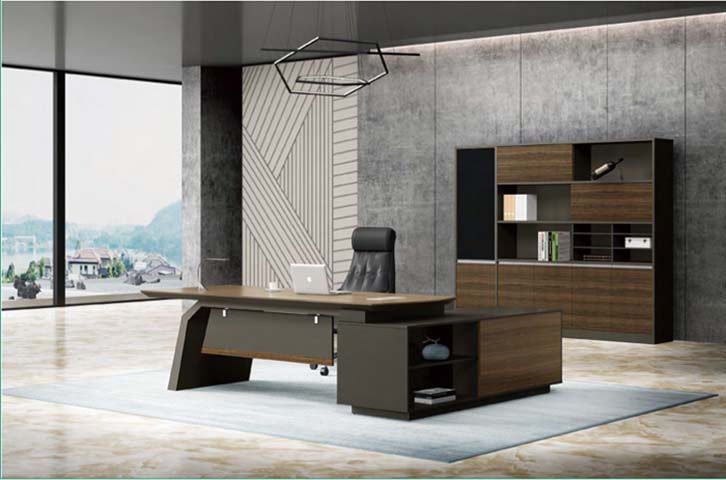

L-Shaped Executive Office Desk with Side Storage Credenza (model EXD-L2400-WAL-DK) is listed under CEO Executive Desk, with overall dimensions of 2400 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 150 kg, tested for even distribution across full surface. Certifications: Modern,executive,style,L-shaped,workstation,integrated,side,storage. This page consolidates 5 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Main worktop static uniform load capacity | 150 kg, tested for even distribution across full surface | |
|---|---|---|
| Surface abrasion resistance | withstands 2000 cycles of 1 kg abrasive pad rubbing without visible finish wear | |
| Adjustable glide load rating | 200 kg per glide, allowing 10 mm height adjustment for uneven floors | |
| Worktop impact resistance | withstands 1 kg steel ball drop from 300 mm height without cracking or chipping | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm thick E1 grade particleboard core, walnut melamine laminate face, 2 mm PVC edge banding on all sides | |
|---|---|---|
| Structural support leg | 1.5 mm thick cold-rolled steel, matte dark grey powder-coated finish, angular geometric profile | |
| Modesty and front drawer panels | 18 mm thick E1 grade MDF core, matte dark grey melamine finish, matching PVC edge banding | |
| Return credenza body | 18 mm thick E1 grade particleboard, two-tone walnut and dark grey melamine finish, dowel and cam-lock assembly | |
| Drawer slides | full-extension cold-rolled steel with zinc plating, soft-close damping mechanism, 30 kg load rating | |
| Cable grommets | ABS plastic with brushed metal finish cover, 80 mm inner diameter, removable cap for cable access |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
|---|---|---|
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
| BS EN 527-1 | 2011 Office furniture - Work tables and desks - Part 1: Dimensions: applies to work height, clearance and ergonomic dimension requirements | |
|---|---|---|
| BS EN 527-2 | 2019 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements: applies to structural stability and load performance | |
| BS EN 14073-2 | 2004 Office furniture - Storage furniture - Part 2: Safety requirements: applies to integrated drawer and shelf storage safety |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Desk Products | applies to structural load, durability and stability testing for commercial office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | applies to panel construction, dimensional tolerance and finish quality | |
|---|---|---|
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels | requires E1 grade emission ≤0.124 mg/m³ | |
| GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables | applies to static load and impact performance testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: applies to panel construction, dimensional tolerance and finish quality; 2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: requires E1 grade emission ≤0.124 mg/m³; 3. GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables: applies to static load and impact performance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
