PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	120 kg
Credenza drawer payload per drawer	25 kg
Open shelf payload per level	30 kg
Workstation net weight	165 kg
Recommended seated user capacity	1 person
Hardware cycle rating - drawers and doors	50000 cycles
Edge impact and abrasion acceptance	2000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25 mm E1-grade wood-composite core with walnut-look melamine face and 2 mm PVC edge
Credenza and modesty panels	18 mm wood-composite panels with walnut woodgrain fronts and matte gray inset panels
Bookcase carcass	Walnut-look wood-composite outer frame with black or dark gray interior shelf surfaces
Decorative trim	Brushed silver metal or ABS accent strip across the gray modesty panel
Hardware and supports	Steel drawer slides, hinges, shelf pegs and adjustable leveling feet with zinc or black finish
Base and back construction	Recessed plinth base with panel floor contact and fitted back boards for racking resistance

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left floor-standing credenza provides enclosed filing and supply storage beside the seated work zone
Desktop cable management	Rear cable pass-through and under-top routing channel with 60 mm grommet capacity
Privacy and leg screening	Full-width gray and walnut modesty panel shields the user-side leg area from visitor view
Bookcase storage layout	Tall closed bay plus four open horizontal shelf columns for books, display objects and binders

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest desk carton size	2500 x 1100 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where the desk, visitor seating and storage wall form a complete work-and-meeting setting
Procurement configuration	Use as a desk-plus-storage suite with cable access, file storage and display shelving specified as one matched finish package

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and stability	EN 16139 non-domestic seating-adjacent worktable strength and stability reference
Storage furniture safety and strength	EN 14073office storage mechanical requirements
Storage furniture stability	EN 14073stability requirements and test methods
Formaldehyde wood-based panels	EN 13986 E1 classification for construction-use wood-based panels

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission acceptance	GB/T 39600 E1 limit for wood-based panel components
Wood furniture quality inspection	GB/T 3324 dimensional tolerance, edge bonding and structural integrity requirements
Furniture mechanical test - tables	GB/T 10357.5 static load and stability test method
Furniture mechanical test - storage units	GB/T 10357.4 shelf and cabinet strength test method

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission acceptance: GB/T 39600 E1 limit for wood-based panel components;
2. Wood furniture quality inspection: GB/T 3324 dimensional tolerance, edge bonding and structural integrity requirements;
3. Furniture mechanical test - tables: GB/T 10357.5 static load and stability test method;
4. Furniture mechanical test - storage units: GB/T 10357.4 shelf and cabinet strength test method;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDC-2400-EXEC-WS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDC-2400-EXEC-WS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDC-2400-EXEC-WSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

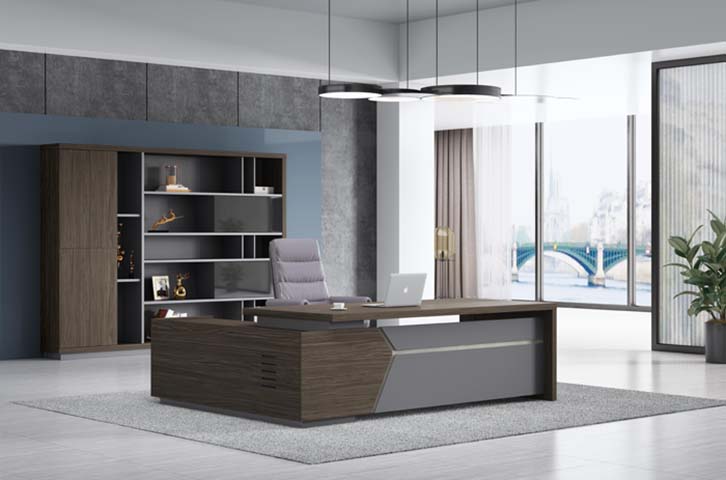

The EDC-2400-EXEC-WS is an unbranded executive desk suite presented as a coordinated desk, left-side storage credenza, and wall bookcase package. Its modern executive character comes from dark walnut-look wood-composite surfaces paired with matte gray lacquered modesty panels, brushed silver metal or ABS accent trim, and dark interior shelving. The layout places a floor-standing credenza beside the main seated work zone, while the tall bookcase provides a structured storage and display wall behind or adjacent to the desk. Together, these pieces create a resolved setting for focused work, brief meetings, and visitor reception. The desktop uses a 25 mm E1-grade wood-composite core with a walnut-look melamine face and 2 mm PVC edge, finished to a substantial 50 mm top thickness. Credenza and modesty components use 18 mm wood-composite panels with walnut woodgrain fronts and gray inset panels. The bookcase combines a walnut-look outer frame with black or dark gray interior shelf surfaces. Steel drawer slides, hinges, shelf pegs, and adjustable leveling feet are supplied in zinc or black finishes, while the recessed plinth base, panel floor contact, and fitted back boards contribute to a stable, built-out feel. The main support section is 80 mm with a 2 mm metal wall. Functionally, the suite is configured for one seated user. The left credenza offers enclosed filing and supply storage within easy reach, and the bookcase combines a tall closed bay with four open horizontal shelf columns for books, binders, and display objects. A full-width gray and walnut modesty panel screens the user’s leg area from visitors. Cable management includes a rear pass-through, under-top routing channel, and grommet capacity suited to office power and data leads; the stated cable opening is 80 mm in diameter with a 120 mm-deep cable tray. Effective knee clearance is 680 mm high and 900 mm wide at the main seat. The stated desktop distributed static load is 120 kg, with 25 kg payload per credenza drawer and 30 kg per open shelf level. Drawer and door hardware is rated for 50,000 cycles, and edge impact and abrasion acceptance is stated at 2,000 cycles. The net workstation weight is 165 kg. This suite is best suited to a private manager or executive office where the desk, visitor seating, credenza, and storage wall form a complete work-and-meeting environment. It is also suitable for high-end residential studies that require a commercial-style workspace. Procurement teams should specify the package as one matched finish suite, confirm access for carton handling, allocate time for assembly, and verify the separate packaging information with the supplier before ordering.

Executive Desk with Storage Credenza and Wall Bookcase Specifications
