PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2000 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop load	100 kg
Pedestal static load	40 kg
Suggested user weight allowance	150 kg
Product net weight	145 kg
Distributed worktop static load	120 kg
Concentrated worktop load	40 kg over 300 x 300 mm
Rear credenza top load	60 kg
Drawer or compartment shelf load	35 kg per compartment
Ball-bearing drawer slide load	35 kg per pair
Drawer slide durability	50000 open-close cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25 mm engineered wood-core panel with dark walnut-grain laminate and balanced backing
Worktop edge	2 mm silver-gray impact-resistant PVC or ABS edge band with rounded corners
Side support panels	Warm-gray painted engineered wood panels formed as tapered sculpted legs
Central cabinet body	18 mm gray painted engineered wood carcass with three wood-grain front panels
Storage fronts	18 mm walnut-grain laminated engineered panels with routed vertical divisions
Rear credenza body	25 mm warm-gray painted engineered panels with dark laminate inset surfaces

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed-height work surface	750 mm fixed desktop height for standard executive seating and 720 mm class task chairs
L-shaped work layout	2400 mm front desk combined with a 1600 mm rear return for computer, meeting and document zones
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-CRV-2400-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-CRV-2400-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-CRV-2400-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

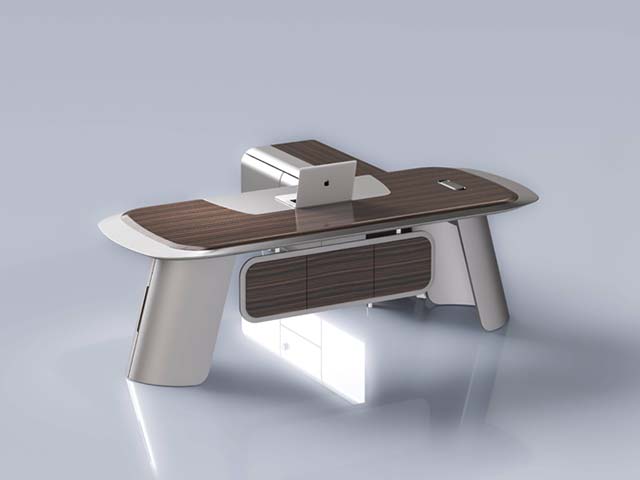

The Curved Executive Desk with Rear Credenza and Integrated Cable Management presents a refined modern executive solution through its flowing front profile, L-shaped layout, and coordinated warm-gray and dark walnut palette. Model EXD-CRV-2400-WG is offered unbranded, making it well suited to projects requiring a tailored interior appearance without prominent manufacturer identity. Visually, the desk combines a dark wood-grain laminate worktop with light gray painted support structures, a wood-grain modesty panel, and a central storage body featuring walnut-grain fronts. The side supports are formed as tapered sculpted legs, while rounded corners and a silver-gray impact-resistant edge band soften the substantial top. The front desk and rear return establish separate zones for computer work, meetings, documents, and storage, giving the workstation an organized, office-ready presence. Construction uses engineered wood-core panels throughout. The worktop is built on a 25 mm panel with dark walnut-grain laminate and balanced backing, finished with a 50 mm top thickness and a 2 mm PVC or ABS edge band. The central carcass uses 18 mm gray painted engineered wood with three wood-grain front panels and routed vertical divisions. Rear credenza panels are 25 mm warm-gray painted engineered wood with dark laminate inset surfaces. The 80 mm support section uses a 2 mm metal wall, while integrated workstation hardware and a metal cable cover complete the practical structure. The fixed-height desktop is set at 750 mm, suited to standard executive seating and 720 mm class task chairs. Each main seat position provides 680 mm of knee clearance height and 900 mm of width. An 80 mm cable opening connects to a 120 mm-deep tray with reference capacity for ten power or data cables and a tray load allowance of 10 kg, helping reduce visible cabling around monitors, power adapters, and desktop devices. Storage and load provisions make the desk appropriate for daily office use. The worktop supports a distributed static load of 120 kg, a distributed working load of 100 kg, and a concentrated load of 40 kg over a 300 by 300 mm area. The pedestal has a 40 kg static load allowance, the rear credenza top supports 60 kg, and the suggested user weight allowance is 150 kg. The net weight is 145 kg. This desk fits private executive offices, corporate meeting workspaces, premium home offices, consultancy suites, and managerial environments where surface space, concealed storage, and cable control are priorities. Procurement teams should plan for a substantial fixed-height installation, confirm access for carton delivery, and allow roughly 40 minutes for assembly. The supplied logistics references note packaging variations, with the product listing two cartons and additional packed dimensions referencing four cartons; buyers should verify final packing details with the supplier before scheduling installation. Main joints are referenced for five controlled assembly cycles, which is useful for offices anticipating limited relocation or reconfiguration.

Curved Executive Desk with Rear Credenza and Integrated Cable Management Specifications
