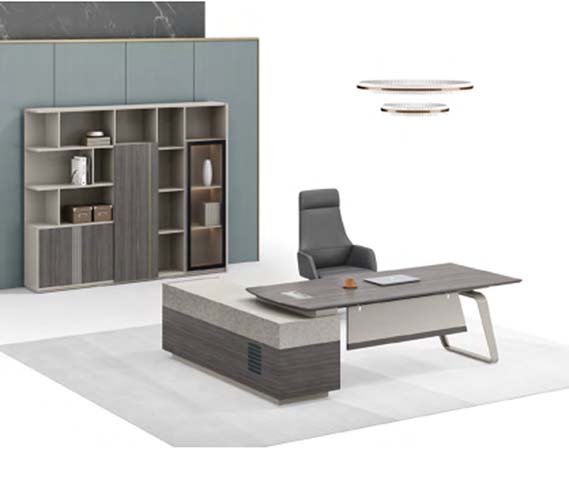

Modern L-Shaped Two-Tone Executive Office Desk with Left Storage Pedestal (model EXD-L2800-TT-01) is listed under CEO Executive Desk, with overall dimensions of 2800 × 2200 × 750 mm and main material of Particle‑board (PB). Load capacity: 181 kg. Certifications: Two-tone,dark,wood/light,matte,finish,L-shaped,fixed,pedestal,cantilever,metal,leg,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 2200 x 750 mm | |
|---|---|---|
| Main desktop thickness | 51 mm | |
| Edge band thickness | 2 mm | |
| Side return cabinet width | 1800 mm | |
| Side return cabinet depth | 600 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width | 1200 mm | |
| Cable grommet diameter | 80 mm | |
| Modesty panel height | 400 mm | |
| Cantilever steel leg wall thickness | 2 mm | |
| Drawer internal depth | 450 mm | |
| Side ventilation panel length | 200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 181 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 100000 cycles | |
| Net product weight | 121 kg | |
| Recommended user weight capacity | 159 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | 18mm particleboard substrate with high-pressure melamine laminate | |
|---|---|---|
| Storage cabinet panels | 18mm MDF with matte light gray melamine finish | |
| Support leg | Powder-coated matte silver cantilever steel frame | |
| Modesty panel | 15mm engineered wood with matching light matte finish | |
| Hardware | Soft-close steel drawer slides, concealed steel hinges | |
| Edge treatment | 2mm PVC edge banding with rounded beveled boat front edge |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Left-side fixed return cabinet with enclosed drawer/door storage | |
|---|---|---|
| Cable management | Underside cable tray with desktop grommets for power/data routing | |
| Ventilation | Louvered side panel on return cabinet for equipment airflow | |
| Installation | Freestanding floor-mounted assembly with adjustable leveling feet |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application | Private executive and manager offices, for single-user seated work | |
|---|---|---|
| Recommended configuration | Pair with matching lateral file/bookcase cabinet for full office suite |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for performance verification | |
|---|---|---|
| EN 12521:2015 | Furniture strength durability and safety for domestic and commercial tables | |
| EN 14749:2016 | Domestic and kitchen storage units worktops safety requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for office furniture performance testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for structural testing | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate quality verification | |
| GB/T 15102-2017 | Melamine faced boards for interior use, applicable for finish quality |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for structural testing; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate quality verification; 3. GB/T 15102-2017: Melamine faced boards for interior use, applicable for finish quality; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
