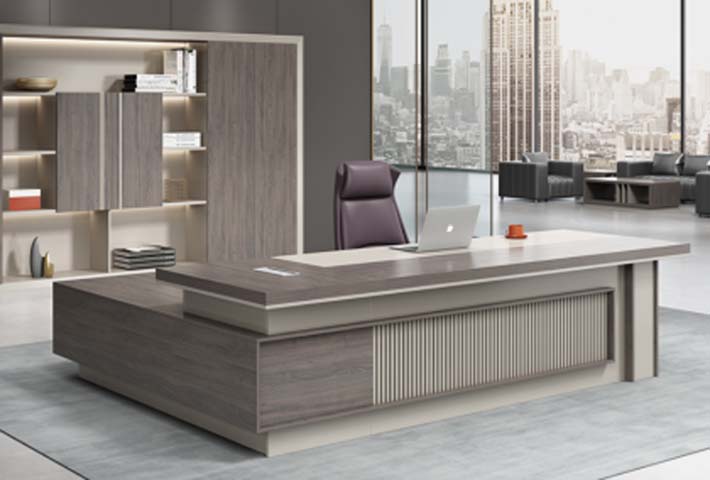

Dual-Tone L-Shaped Fixed-Height Executive Office Desk with Slatted Panel Base (model EXD-LSLT-GRY-2400) is listed under CEO Executive Desk, with overall dimensions of 2400 × 2000 × 760 mm and main material of Particle‑board (PB). Load capacity: 272 kg. Certifications: Modern,commercial,style,Fixed-height,L-shape,Integrated,storage,base,Matte,dual-tone,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2400 x 2000 x 760 mm | |
|---|---|---|
| Main worktop length | 2000 mm | |
| Main worktop depth | 900 mm | |
| Side return length | 1600 mm | |
| Side return depth | 750 mm | |
| Desktop thickness | 50 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width | 1200 mm | |
| Knee clearance depth | 600 mm | |
| Side cabinet height | 680 mm | |
| Cable grommet diameter | 80 mm | |
| Edge band thickness | 3 mm | |
| Slatted panel slat width | 20 mm | |
| Base plinth height | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load | 272 kg | |
|---|---|---|
| Drawer slide static load | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 100000 cycles | |
| Cable tray static load | 15 kg | |
| Leveling glide adjustment range | 15 mm | |
| Net product weight | 181 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop surface | Thermally fused melamine laminate over 25mm MDF core | |
|---|---|---|
| Edge trim | 3mm thick PVC edge banding | |
| Base cabinet frame | 18mm thick engineered wood particleboard | |
| Decorative front panel | Vertical slatted engineered wood panel | |
| Drawer components | Full-extension soft-close steel ball-bearing slides | |
| Cabinet hardware | Zinc alloy lock and handle set |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed work height | 760 mm seated work height | |
|---|---|---|
| Integrated storage | Left return base holds 2 lockable drawers and 1 enclosed cabinet | |
| Cable management | 80mm desktop grommet connects to under-desk cable tray | |
| Leveling support | Adjustable floor glides on base corners |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Fits CEO, director or senior manager workspaces with matching leather executive chair | |
|---|---|---|
| Corporate headquarters setting | Suitable for high-rise office environments with city views and adjacent lounge seating |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables – Safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office work tables – Mechanical safety requirements | |
| EN 13722:2004 | Furniture – Test methods for surface finishes |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products – Safety and performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units for Office Environments |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3327-2016 | Office desks and tables | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB/T 3327-2016: Office desks and tables; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
