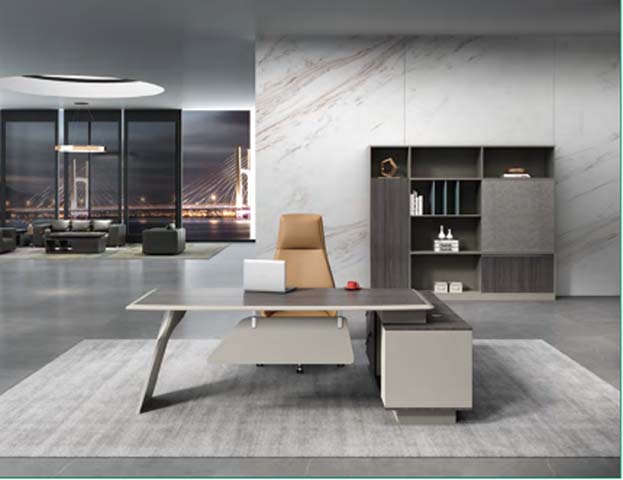

Two-Tone Grey L-Shaped Executive Office Desk with Right Side Storage Cabinet (model EXD-LZ-2200-GRY) is listed under CEO Executive Desk, with overall dimensions of 2200 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Fixed-height,L-shaped,configuration,integrated,side,storage,two-tone,grey,finish,Z-style,metal,leg. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2200 x 1800 x 750 mm | |
|---|---|---|
| Main work surface dimensions | 2200 x 900 mm | |
| Side return surface dimensions | 900 x 600 mm | |
| Desktop thickness | 50 mm | |
| Edge band thickness | 2 mm | |
| Seated knee clearance height | 660 mm | |
| Knee well width | 1600 mm | |
| Modesty panel height | 350 mm | |
| Side cabinet overall dimensions | 900 x 600 x 660 mm | |
| Cable grommet diameter | 80 mm | |
| Z-leg metal section thickness | 2 mm | |
| Storage drawer internal height | 150 mm | |
| Floor clearance under cabinet | 20 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled product weight | 110 kg | |
|---|---|---|
| Desktop static load capacity | 100 kg | |
| Drawer slide dynamic load rating | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Melamine surface abrasion resistance | 2000 cycles | |
| Limited warranty period | 36 months | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25mm melamine-faced particleboard | |
|---|---|---|
| Desktop surface finish | Scratch-resistant matte melamine laminate | |
| Left support leg | Powder-coated steel Z-frame | |
| Modesty panel | 18mm melamine-faced MDF | |
| Side cabinet construction | Melamine-faced engineered wood panels | |
| Hardware components | Zinc-plated steel cam locks, screws and slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Work surface layout | L-shaped fixed-height configuration with right-side return | |
|---|---|---|
| Storage configuration | Closed side cabinet with drawers and enclosed storage compartment | |
| Cable management | Desktop grommets with under-desk cable routing space | |
| Privacy feature | Full-width modesty panel below main desktop front edge |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for senior management individual daily workstation use | |
|---|---|---|
| Corporate open-plan management area | Provides extended work surface and integrated storage for high-document roles |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office work tables mechanical safety requirements, applicable to stability testing | |
| EN 13722:2004 | Furniture strength and durability of storage units, applicable to side cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard applicable to the integrated side cabinet |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel construction | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks, applicable to load and stability testing | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel construction; 2. GB/T 3327-2016: Performance requirements for office desks, applicable to load and stability testing; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
