PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-RCB-CPU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-RCB-CPU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-RCB-CPUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

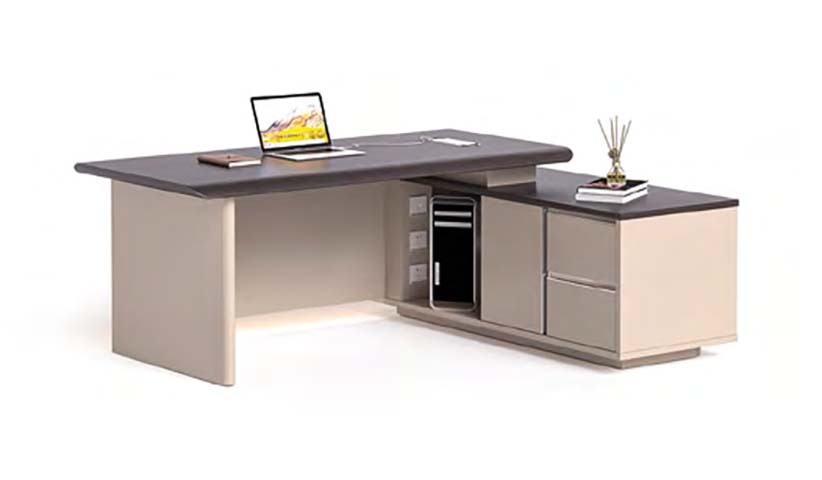

The L-Shaped Executive Office Desk with Right Return Storage and CPU Bay presents a structured two-tone appearance, pairing a dark wood-grain work surface with warm beige lacquered panels. Its right-hand return creates an expansive corner layout with a distinct main work zone, storage pedestal, and dedicated CPU compartment. The finished top is 50 mm thick, while primary panels are specified at 25 mm, with a 40 mm composite build-up available for load-bearing top areas. Edges use 2 mm edge banding, and the support structure relies on an 80 mm main leg section with 2 mm cold-rolled steel wall thickness. Main connectors reference M6 to M8 hardware with at least two fixing points per support, contributing to a solid, contract-oriented build. Functionally, the desk combines an executive writing surface with a right-side storage cabinet, drawers on metal slides, and an integrated CPU bay that helps keep the main desktop clear. Cable management is built into the layout through an 80 mm cable opening and a 120 mm deep tray, with reference capacity for ten power or data cables and a tray load reference of 10 kg. The reference static load capacity for the top is 150 kg uniformly distributed. Drawer slides are rated for 45 kg per pair and 50,000 cycles, while the hinge opening acceptance target is 80,000 cycles. The finish-system acceptance target is 4,000 abrasion cycles or an equivalent finish-system test. Each main seating position provides 680 mm of knee clearance height and 900 mm of width. The design suits private executive offices, managerial workspaces, open-plan supervisory positions, professional suites, and larger home offices where storage, technology placement, and a substantial visual presence are required. It is particularly appropriate when work needs to be divided between computer tasks, paperwork, and meetings or reference materials within reach. Buyers should confirm the handed configuration before ordering, as the storage return is positioned to the right. Finish selection should also be checked against the interior scheme; the specification references six top finishes and three frame colors, although the supplied product description identifies a dark wood-grain and warm beige palette. Procurement planning should account for assembly, installation access, and receiving logistics. Reference guidance lists one set across two cartons, while separate packaged logistics information records four cartons, a packaged gross weight of 180 kg, and 1 cubic meter of packaging volume per set; the main top package dimension is 2500 by 1050 by 350 mm, with the return and pedestal packed separately. Assembly time is referenced at 40 minutes per set. Reassembly guidance indicates main joints should support five controlled assembly cycles. Recommended warranty terms are five years for the structure, three years for hardware, and two years for the finish. Specifiers should verify final packaging, finish availability, warranty terms, and local delivery conditions at the point of purchase.

L-Shaped Executive Office Desk with Right Return Storage and CPU Bay Specifications
