PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Cabinet top point load	35 kg
Single shelf load	20 kg per shelf
Recommended occupant capacity	1 person
Net weight range	145 kg
Drawer/door daily use rating	50,000 cycles
Floor load	58 kg/m2
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Black matte engineered-wood panel, 36 mm thick, with rounded edge banding
Storage cabinet	Black matte wood-based panel case with three flush front panels
Interior structure	18 mm cabinet-grade panels with adjustable shelf holes proposed
Support frame	Black rigid panel or steel support with taupe painted rounded beam
Connector plate	Silver/white metal or high-pressure laminate bridge plate with cable cut-out
Hardware	Three circular metal-finish controls or locks and concealed hinges/slides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main desk and perpendicular storage return create separate primary work and reference zones
Integrated storage support	Left floor-standing cabinet supports the return while providing three enclosed front bays
Cable management	Rectangular grommet on the return routes monitor and power cables toward the cabinet/beam
Storage access	Flush doors or drawer fronts are specified with soft-close hardware and a 50,000-cycle acceptance target

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Cabinet carton size	1450 x 650 x 800 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where the cabinet return supports documents, peripherals, and seated work at 750 mm height.
Project workstation	Suitable for procurement projects requiring a high-width black desk with enclosed storage and cable routing rather than a simple open-leg table.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-LSH-2400-BLK-CAB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-LSH-2400-BLK-CAB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-LSH-2400-BLK-CABOpen Export Tool

Quick Actions

Post an RFQ

Product Description

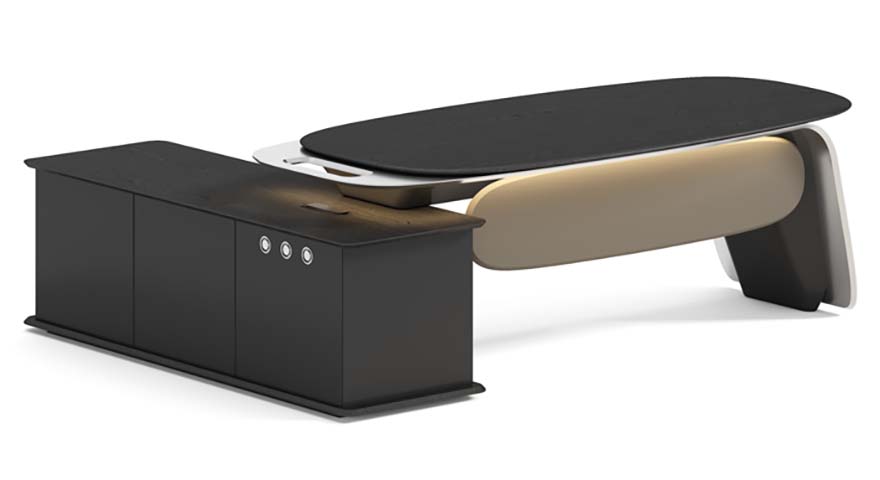

The Black L-Shaped Executive Desk with Integrated Storage Cabinet presents a structured, high-width workspace formed by a main desk and a perpendicular storage return. Its black matte finish gives the desk a consistent executive appearance, while the rounded edge banding and taupe painted rounded beam soften the angular layout. The return is supported by a floor-standing cabinet on the left, creating distinct zones for primary seated work and document or peripheral placement. The cabinet front uses three flush panels for a clean visual line, complemented by circular metal-finish controls or locks and concealed hinges or slides. Construction combines a black engineered-wood work surface, wood-based cabinet panels, and a rigid painted panel or steel support structure. The finished top is 50 mm thick, with the stated work surface panel specified at 36 mm. The support uses an 80 mm main section with a 2 mm metal wall, and the connector bridge is offered in silver or white metal or high-pressure laminate with a cable cut-out. Inside the cabinet, 18 mm cabinet-grade panels and proposed adjustable shelf holes provide adaptable enclosed storage. The desk has an effective knee clearance of 680 mm in height and 900 mm in width for the main seat and is intended for one occupant. Practical functions are centered on storage and cable organization. The cabinet provides three enclosed front bays, with flush doors or drawer fronts and soft-close hardware accepted to a 50,000-cycle daily-use target. An 80 mm diameter rectangular grommet on the return routes monitor and power cables toward the cabinet or beam, where cable-management hardware and a 120 mm-deep cable tray help keep services controlled. Rated capacities include a distributed desktop static load of 100 kg, a cabinet top point load of 35 kg, and 20 kg per individual shelf. This model is well suited to private manager offices and project-based workstations that need enclosed storage and cable routing rather than a basic open-leg table. It is appropriate where documents, peripherals, and focused work must share one coordinated footprint. Procurement teams should plan for a substantial installation: the net weight is listed as 145 kg, reference packaged gross weight is 180 kg per set, and packaging information indicates separate cartons for the top and return or pedestal. Reference assembly time is 40 minutes per set, and buyers should verify the exact carton count and support finish when ordering, as the supplied logistics reference both a two-carton set and a four-carton packing description. Floor loading is listed at 58 kg per square meter.

Black L-Shaped Executive Desk with Integrated Storage Cabinet Specifications
