PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static desktop load capacity	120 kg
Recommended user capacity	1 person
Net weight reference	180 kg
Floor loading	2.4 kPa at gross package weight
Door and drawer cycle target	50,000 operating cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25 mm wood-composite panel with 50 mm visual laminated edge profile
Desktop surface	Taupe melamine or laminate finish with smooth low-sheen appearance
Storage cabinet panels	18 mm gray and taupe wood-composite panels with square edge banding
Back modesty panel	18 mm gray composite panel spanning the central knee bay
Hardware	Lock cylinder, drawer pulls or recessed slots, hinges and drawer slides in black or dark metal
Support structure	Two floor-standing cabinet pedestals with low plinth bases carry the desktop

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Left pedestal provides two doors; right pedestal provides one lockable drawer, one lower drawer and two side doors
Cable routing	Rear horizontal cable port routes laptop and monitor cables into the concealed under-desk cavity
Seated work bay	Central open knee space provides a 1200 mm wide chair position between fixed storage supports
Privacy screening	Solid rear modesty panel shields the under-desk area from the visitor side

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	210 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suitable for managers requiring a large computer work surface, visitor-side presentation area and concealed file storage
Open management workstation	Can be placed in a supervisor area where lockable drawers, cable control and a modesty panel are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2800-DUAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2800-DUAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2800-DUALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

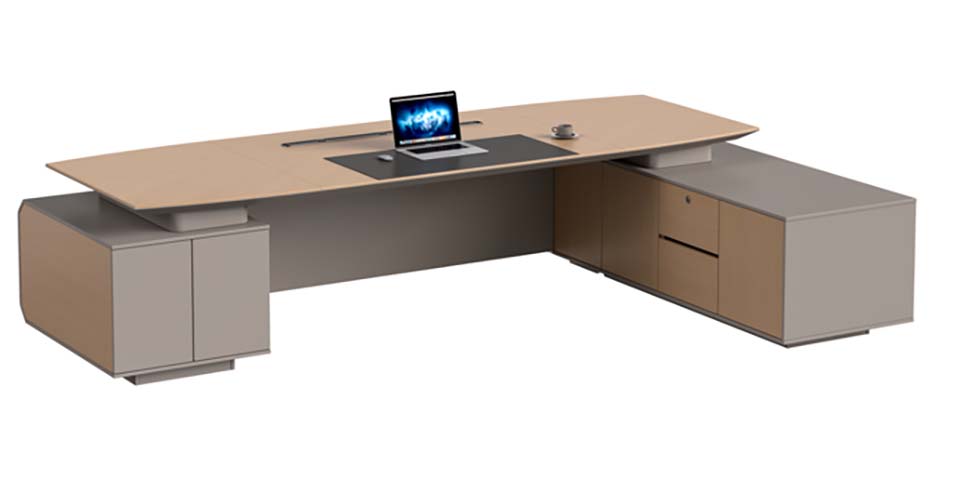

The L-Shaped Executive Desk with Dual Storage Pedestals, model ED-L2800-DUAL, is an unbranded executive workstation designed for one user. Its modern, floor-standing form combines a broad main work surface with a return configuration and two supporting cabinet pedestals, creating a substantial management desk with a central open knee bay and storage on both sides. The arrangement presents a clean visitor-facing elevation while keeping files and equipment within easy reach of the seated user. The desktop uses a 25 mm wood-composite substrate with a taupe melamine or laminate surface and a smooth low-sheen appearance. Its 50 mm visual laminated edge profile gives the top a substantial look, while PVC edge banding protects the desk top and cabinet panels. Storage cabinets are made with 18 mm gray and taupe wood-composite panels and square edge banding. A matching 18 mm gray modesty panel spans the central knee bay, and black or dark metal hardware includes the lock cylinder, drawer pulls or recessed slots, hinges, and slides. The pedestals sit on low plinth bases and carry the desktop; the main support section is 80 mm with a 2 mm metal wall. Function is organized around private work and controlled storage. The left pedestal contains two doors. The right pedestal provides one lockable drawer, one lower drawer, and two side doors, supporting concealed filing and personal or supervisory storage. Drawer slides are rated for 45 kg per pair with a 50,000-cycle target, and doors and drawers share that 50,000 operating-cycle target. The central seated position offers 680 mm of knee height and 900 mm of width at the main seat, with a 1200 mm chair position between the fixed supports. Cable management is integrated into the layout. An 80 mm diameter rear horizontal cable port routes laptop and monitor cables into a concealed under-desk cavity served by a 120 mm deep cable tray. This helps maintain a neat presentation surface and reduces visible clutter around monitors and docking devices. The solid modesty panel also screens the under-desk area from the visitor side. The desk is suited to private executive offices where a manager needs a large computer work surface, a visitor-side presentation area, and lockable file storage. It is also appropriate for an open supervisor or management workstation requiring cable control and privacy screening. Static desktop load capacity is 120 kg, with a 150 kg uniformly distributed top static load reference. Procurement planning should account for the 180 kg net weight, 210 kg gross weight, two-carton set packing, and 40-minute assembly reference. Site teams should verify access and floor loading, with floor loading stated as 2.4 kPa at gross package weight.

L-Shaped Executive Desk with Dual Storage Pedestals Specifications
