PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2200 × 760 mm
Main work surface depth	900 mm
Left return cabinet dimensions	1200 x 500 x 650 mm
Tabletop thickness	80 mm
Seated knee clearance height	650 mm
Seated knee clearance width	1600 mm
Right support leg cross-section	100 x 100 mm
Modesty panel height	500 mm
Edge band thickness	2 mm
Metal trim thickness	1.2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	150 kg
Drawer slide rated load	45 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	100000 cycles
Cable grommet diameter	80 mm
Product net weight	260 kg
Recommended user weight capacity	150 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	E0-grade engineered wood panel
Tabletop finish	Matte dark walnut wood grain melamine veneer
Cabinet and modesty panel finish	Matte light beige textured paint finish
Edge banding	2 mm thick PVC/PUR edge banding matched to finish
Support leg and trim	1.2 mm thick brushed gold-toned stainless steel
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Cabinet hinges	Soft-closing cold-rolled steel cabinet hinges
Accent lighting	Embedded LED strip in right support leg
Leveling feet	Nylon and steel adjustable leveling feet
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left fixed return pedestal with integrated file and supply drawers
Cable management	Desktop cable grommet routed to under-desk cable tray
Ambient lighting	Built-in warm white LED accent light in right support leg
Modesty panel	Full-width textured front modesty panel for seated privacy
Drawer operation	Soft-closing full-extension drawers with integrated handleless pulls
Leveling adjustment	Adjustable feet on base to compensate for uneven floor surfaces
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suitable for chairman, president or senior manager private offices
High-end corporate workspace	Designed for Class A office buildings with premium interior finishes
Paired furniture configuration	Compatible with matching high-back leather executive chairs and full-wall background storage cabinets
Seated document and computer work	Supports full desktop computer, document, and office supply placement for daily executive work
Client meeting use at desk	Wide surface accommodates small group discussions across the desk with visiting clients

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk strength and stability	EN 527:2002
Office furniture safety requirements	EN 1335:2020

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Panel formaldehyde emission	GB/T 39600E0 grade, ≤0.05 mg/m³
Surface coating adhesion	GB/T 4893.4Grade 1
Surface hardness	GB/T 4893.9≥3H
Hardware salt spray resistance	GB/T 1012548h neutral salt spray no corrosion

Standardized tender description text

This product must meet the following technical requirements:
1. Panel formaldehyde emission: GB/T 39600E0 grade, ≤0.05 mg/m³;
2. Surface coating adhesion: GB/T 4893.4Grade 1;
3. Surface hardness: GB/T 4893.9≥3H;
4. Hardware salt spray resistance: GB/T 1012548h neutral salt spray no corrosion;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FYA08-261B

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FYA08-261B

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FYA08-261BOpen Export Tool

Quick Actions

Post an RFQ

Product Description

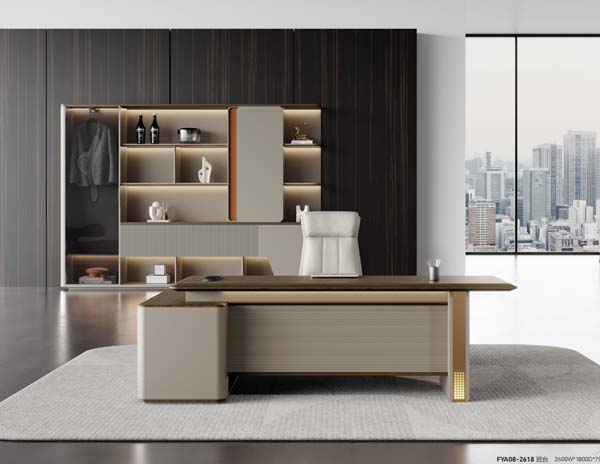

This L-shaped executive office desk features a light luxury aesthetic defined by a balanced two-tone finish and refined metallic accents. The layout pairs a generous main work surface with a fixed left return cabinet, creating a clear, functional zone separation between primary work and storage spaces. A textured full-width modesty panel spans the front of the main desk, while a squared right support leg anchors the open end of the configuration, complemented by slim gold-toned trim that outlines key edges of the piece for a polished, cohesive look.
The desk is constructed with an E0-grade engineered wood core. The main tabletop is finished in matte dark walnut wood grain melamine veneer, while cabinet surfaces and the modesty panel carry a matte light beige textured paint finish. All edges are sealed with finish-matched 2mm thick PVC/PUR edge banding. Structural trim and the right support leg are formed from 1.2mm thick brushed gold-toned stainless steel, with an embedded warm white LED strip in the support leg for soft ambient lighting. Cold-rolled steel ball-bearing full-extension drawer slides and soft-closing cold-rolled steel hinges support storage components, while nylon and steel adjustable leveling feet at the base stabilize the unit on uneven floors.
Functional design elements support daily executive workflow. The left return pedestal integrates file and supply drawers with handleless pulls and soft-close operation, keeping frequently used materials within easy reach. A desktop cable grommet routes cords to an under-desk cable tray, which accommodates power and data cables to maintain a clean, uncluttered work surface. The spacious tabletop supports full desktop computer setups, documents, and office supplies, while its wide expanse allows small in-desk discussions with visiting clients. The integrated modesty panel provides seated privacy during work and meetings, and the built-in LED accent light adds subtle, welcoming illumination to the workspace.
This desk is well suited for private executive offices for chairmen, presidents, and senior managers, as well as high-end corporate workspaces in premium Class A office buildings. It pairs seamlessly with matching high-back leather executive chairs and full-wall background storage cabinets to create a coordinated, high-end office suite.
Procurement teams should note the unit ships in separate cartons, with a standard assembly time of 40 minutes per set. Buyers should plan for appropriate delivery handling, as the unit has a substantial net weight and requires sufficient clear floor space to accommodate its full L-shaped footprint. It is also important to confirm access routes and entry dimensions can accommodate the large main tabletop packaging prior to delivery to avoid installation delays.

Light Luxury L-Shaped Executive Office Desk with Left Storage Return and Illuminated Support Leg Specifications
