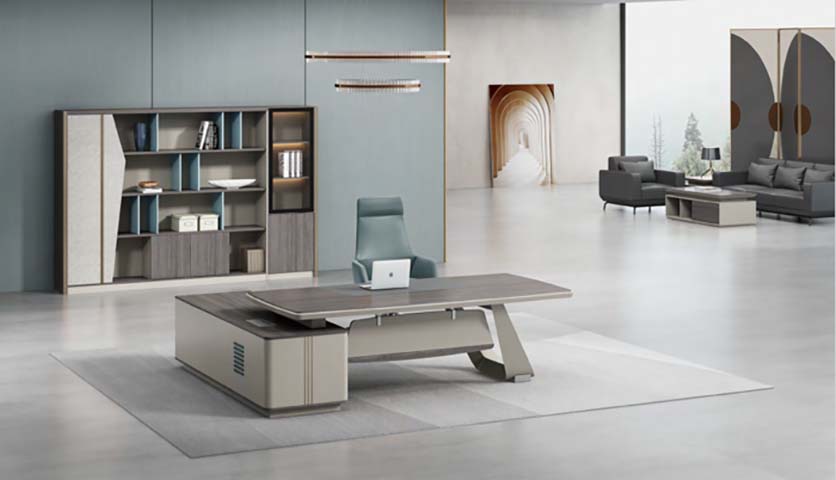

Modern Two-Tone L-Shaped Executive Office Desk with Left Storage Return (model EXEC-L2400-DWLG) is listed under CEO Executive Desk, with overall dimensions of 2400 × 2000 × 760 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modern,executive,style,L-shaped,fixed,return,cantilevered,curved,worktop,under-desk,cable,management,enclosed,storage,pedestal. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 2000 x 760 mm | |
|---|---|---|
| Desktop thickness | 50 mm | |
| Main worktop depth | 900 mm | |
| Left storage return width | 1200 mm | |
| Left storage return depth | 600 mm | |
| Knee clearance width | 1600 mm | |
| Knee clearance height | 660 mm | |
| Modesty panel height | 350 mm | |
| Cable grommet diameter | 80 mm | |
| Curved edge radius | 50 mm | |
| Support leg base width | 150 mm | |
| Pedestal vent slat width | 5 mm | |
| Edge band thickness | 2 mm | |
| Metal support leg wall thickness | 3 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Drawer slide dynamic load per drawer | 30 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge open/close cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Total product net weight | 110 kg | |
| Recommended maximum user weight per seat position | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop core | E1-grade engineered wood particleboard with honeycomb reinforcement | |
|---|---|---|
| Worktop surface | High-pressure dark wood grain melamine laminate | |
| Storage cabinet body | 18mm thick MDF with matte light gray PU coating | |
| Support leg | Powder-coated light gray steel with welded structural frame | |
| Drawer slides | Cold-rolled steel full-extension soft-close slides | |
| Cable management components | ABS plastic grommets and cold-rolled steel cable tray |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left fixed pedestal with lockable file drawer and 2 adjustable storage shelves | |
|---|---|---|
| Cable management | Dual desktop grommets connected to under-desk cable tray | |
| Worktop design | Curved cantilevered right section with beveled edges | |
| Stability design | Single angled sculptural steel support leg and floor-mounted pedestal base |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Sized for CEO, director or senior manager workspace with adjacent office chair | |
|---|---|---|
| Managerial work area | Supports desktop computer, documents, and meeting materials for daily work |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements for commercial use | |
|---|---|---|
| EN 13722:2004 | Furniture strength, durability and stability requirements for storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for commercial office furniture | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for pedestal and cabinet components |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to all wood desk components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to all wood desk components; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
