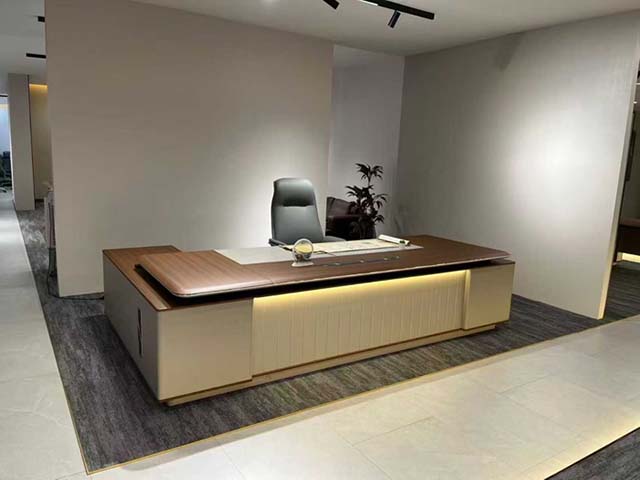

Product supplierL-Shaped Executive Office Desk with Integrated Ambient Lighting, Walnut wood veneer over 25mm MDF core with scratch-resistant matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 2200 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Pedestal drawer static load per drawer | 30 kg | |
| Product net weight | 240 kg | |
| Ambient LED strip service life | 30000 hours | |
| Recommended maximum user weight accommodation | 120 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main desktop | Walnut wood veneer over 25mm MDF core with scratch-resistant matte finish | |
|---|---|---|
| Cabinet body panels | Off-white matte painted 18mm MDF with vertical fluted front texture | |
| Edge trim and plinth | Brushed light champagne metal trim with protective polished finish | |
| Cable management system | Powder-coated cold-rolled steel cable tray with removable access cover | |
| Integrated lighting | 3000K warm white LED strip housed in recessed aluminum channel | |
| Storage drawer internals | 16mm particleboard drawer sides with soft-close ball bearing slides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Embedded central cable tray with desktop access grommets to route power and data cords | |
|---|---|---|
| Integrated storage | Left-side enclosed pedestal with file drawers and right-side closed cabinet for office supplies | |
| Ambient lighting | Recessed warm white LED strip along front under-desk panel for indirect workspace illumination | |
| Workspace layout | L-shaped extended work surface to separate primary computer work and secondary document signing zones |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 5 | |
|---|---|---|
| Shipping carton dimensions (largest panel) | 2900 x 950 x 150 mm | |
| Total shipping gross weight | 290 kg | |
| Total shipping volume | 1.2 CBM | |
| On-site assembly time | 120 minutes | |
| 20ft container loading capacity | 18 units |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for senior management individual workspaces requiring premium aesthetic and document storage | |
|---|---|---|
| Corporate headquarters workspace | Suitable for director-level and C-suite offices requiring formal, professional appearance |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standard for office desk dimensions, safety and strength requirements | |
|---|---|---|
| EN 13722:2004 | Applicable standard for storage units integrated into office workstations |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of wooden office furniture | |
|---|---|---|
| GB/T 4897.3-2003 | Applicable standard for particleboard used in furniture structural components | |
| GB 7000.204-2008 | Applicable safety standard for built-in LED lighting in furniture installations |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden office furniture; 2. GB/T 4897.3-2003: Applicable standard for particleboard used in furniture structural components; 3. GB 7000.204-2008: Applicable safety standard for built-in LED lighting in furniture installations; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
