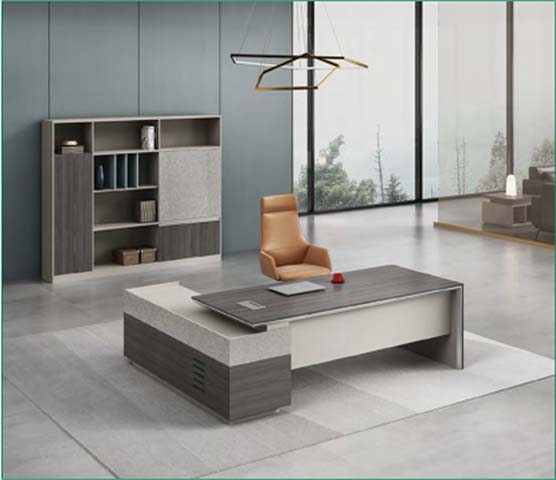

Two-Tone L-Shaped Executive Office Desk with Left Storage Return (model EXEC-L-2800-DWGY) is listed under CEO Executive Desk, with overall dimensions of 2800 × 1800 × 760 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modern,executive,style,L-shaped,fixed,layout,integrated,storage,return,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2800 x 1800 x 760 mm | |
|---|---|---|
| Main worktop length | 2200 mm | |
| Main worktop depth | 900 mm | |
| Left side return length | 1600 mm | |
| Left side return depth | 600 mm | |
| Worktop thickness | 50 mm | |
| Storage pedestal panel thickness | 36 mm | |
| Modesty panel thickness | 36 mm | |
| Edge banding thickness | 2 mm | |
| Under-desk knee clearance height | 700 mm | |
| Knee clearance width | 1600 mm | |
| Cable grommet cutout size | 80 mm diameter | |
| Right support leg cross-section | 100 x 100 mm | |
| Storage pedestal internal drawer height | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop distributed static load | 120 kg | |
|---|---|---|
| Drawer slide static load per drawer | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cable tray maximum load | 10 kg | |
| Desk net weight | 190 kg | |
| Seating capacity | 1 person | |
| Finish abrasion resistance | 2000 cycles | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E0-grade engineered wood board | |
|---|---|---|
| Worktop surface | Dark brown wood grain melamine laminate | |
| Upper return and modesty panel | Off-white matte melamine engineered wood | |
| Lower storage pedestal | Dark wood grain and textured light gray melamine | |
| Edge banding | 2 mm thick ABS plastic impact-resistant edging | |
| Support structure framing | Powder-coated steel internal reinforcement |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed top grommet with under-desk cable tray | |
|---|---|---|
| Storage configuration | Integrated left return pedestal with locking file drawers | |
| Pedestal ventilation | Horizontal vent slots on pedestal side panel | |
| Modesty panel | Full-width off-white front panel under main worktop |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Formal standalone workspace for senior management and leadership roles | |
|---|---|---|
| Corporate headquarters office suite | Premium matching set with tall storage cabinets for high-end office design |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office work tables: mechanical safety test methods | |
| EN 13722:2004 | Furniture: office storage units performance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: performance and safety standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: performance and safety standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2017: Performance test methods for office desks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
