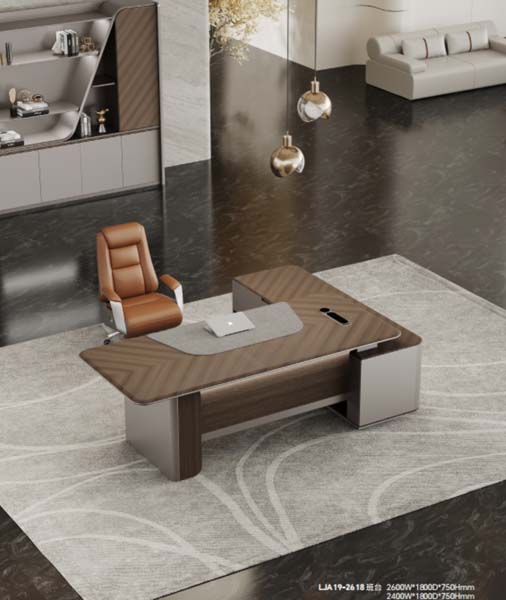

Product supplierL-Shaped Herringbone Veneer Executive Office Desk, Herringbone patterned natural wood veneer over E1 grade engineered wood core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2600 × 1800 × 750 mm | |
|---|---|---|
| Worktop thickness | 50 mm | |
| Edge banding thickness | 2 mm | |
| Front seated knee clearance height | 680 mm | |
| Front knee clearance width | 1200 mm | |
| Right-side return depth | 580 mm | |
| Cable grommet opening length | 180 mm | |
| Pedestal base wall thickness | 18 mm | |
| Rounded corner radius | 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide durability cycles | 50000 | |
| Storage door hinge durability cycles | 80000 | |
| Product net weight | 150 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 1 person | |
| Standard manufacturing warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | Herringbone patterned natural wood veneer over E1 grade engineered wood core | |
|---|---|---|
| Worktop edge treatment | Soft rounded edges with 2mm thick matching PVC edge banding | |
| Pedestal vertical support panels | Brushed silver metallic finish panels with matching dark wood grain trim | |
| Internal pedestal structural frame | 1.2mm thick cold-rolled steel reinforcement frame | |
| Drawer construction | 16mm thick engineered wood drawer boxes with soft-close slides | |
| Cable grommet | ABS plastic recessed cable grommet with brush insert | |
| Pedestal base leveling feet | Nylon-padded adjustable steel leveling feet | |
| Internal cable tray | 0.8mm thick powder-coated steel under-desk cable management tray | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed worktop grommet with brush seal and under-desk steel tray routes power/data cables | |
|---|---|---|
| Storage configuration | Dual closed box pedestals accommodate file drawers, supply drawers and concealed CPU compartment | |
| Worktop adjustment | Fixed 750mm ergonomic seated work height with no height-adjustment mechanism | |
| Hardware operation | Soft-close drawer slides and self-closing hinges operate without audible slam | |
| Surface protection | Scratch-resistant matte veneer finish resists daily office wear and liquid spills | |
| Floor protection | Adjustable leveling feet compensate for uneven flooring, prevent floor scuffing | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Serves as primary workstation for CEO, director or senior manager in corporate settings | |
|---|---|---|
| High-end reception work area | Functions as formal manager workspace adjacent to company reception zones | |
| Commercial furniture procurement | Suitable for corporate office renovation and bulk commercial furniture projects | |
| Luxury home office | Installed in large home office spaces for executive remote work use | |
| Matching office layout | Pairs with high-back leather executive chairs and matching lateral filing cabinets |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applies to structural performance validation | |
|---|---|---|
| EN 527-2:2002 | Office worktables dimensional ergonomic requirements, applies to seated work height clearance | |
| EN 13722:2004 | Office furniture storage units strength and durability, applies to pedestal cabinet components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and durability standard, applies to load and cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applies to pedestal drawer and hinge durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to worktop and pedestal wood components | |
|---|---|---|
| GB/T 3327-2016 | Office desk dimensional and stability performance requirements, applies to structural validation | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood products, applies to core board material | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applies to engineered wood core material specifications |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to worktop and pedestal wood components; 2. GB/T 3327-2016: Office desk dimensional and stability performance requirements, applies to structural validation; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood products, applies to core board material; 4. GB/T 4897.3-2003: Particleboard for furniture use, applies to engineered wood core material specifications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
