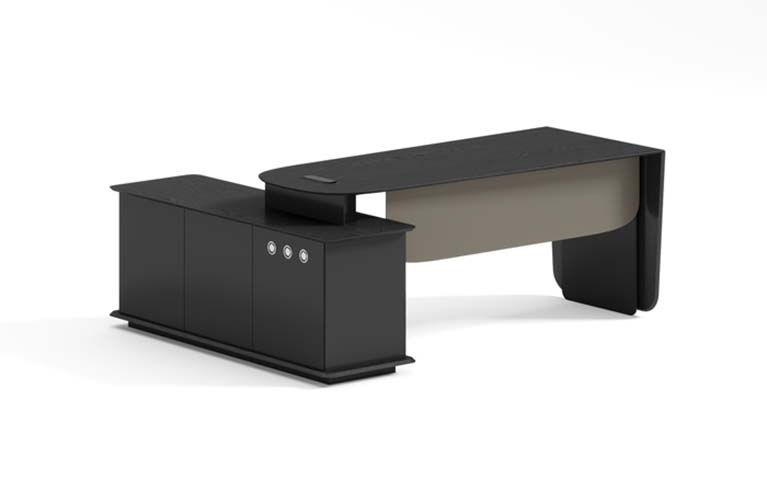

Black L-Shaped Executive Desk with Integrated Storage Credenza (model ED-L2400-BLK-CAB) is listed under CEO Executive Desk. Dimensions: 2400 × 1800 × 750 mm. Materials: Black matte engineered-wood top with impact-resistant edge banding and 50 mm built-up visible thickness. Load capacity: 80 kg. Product Features: black,matte,finish,L-shaped,executive,desk,integrated,storage,credenza,cable,grommets,panel,leg,support,modern,style. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | ED-L2400-BLK-CAB |
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | Overall configuration | 2400 x 1800 x 750 mm overall L-shaped footprint |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight | 145 kg | Distributed desktop load | 80 kg |
| Credenza top load | 60 kg | Single shelf internal load | 25 kg |
| Drawer or file bay load | 30 kg per moving bay | Recommended user size | One executive user with one guest consultation position |
| Grommet cable capacity | Three 60 mm openings, each suitable for 6 power or data cables | Floor pressure distribution | Four cabinet base corners and two right panel feet share the floor load |
| Durability acceptance target | 50,000 drawer cycles for moving storage hardware and 100,000 door/drawer open-close cycles for heavy-use hardware | Top Static Load Reference | 150 kg uniformly distributed |
| Desktop construction | Black matte engineered-wood top with impact-resistant edge banding and 50 mm built-up visible thickness | Storage cabinet panels | 25 mm black wood-based panel carcass with matte vertical faces and continuous base trim |
| Privacy panel | Taupe matte panel with rounded lower corners mounted beneath the rear work surface | Support structure | Black vertical panel legs with rounded lower edges and no exposed metal base |
| Cable management hardware | Three circular 60 mm grommets with silver or light-gray bezels set into the cabinet face | Handle and hardware | Flush black elongated desktop recess and concealed panel handles with production hardware expected inside the bays |
| L-shaped work layout | The long rear top handles computer work while the left credenza return provides storage-side writing, meeting, or printing space | Storage access | Three front cabinet bays provide a planned door, drawer, or file compartment layout behind the black panel fronts |
| Cable routing | Three 60 mm grommets allow power and data cables to pass from the work surface into the cabinet or floor outlet zone | Modesty and leg screening | The taupe curved panel screens the user's leg area from the front while the black right panel forms a side privacy cheek |
| Carton count | 4 flat-packed cartons | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive office | Suited to a private manager office where the long computer surface, side storage, and leg-screening panel support focused daily work | Senior meeting workstation | Appropriate for confidential discussions or laptop-side consultation with one visitor across the return surface |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| Overall configuration | 2400 x 1800 x 750 mm overall L-shaped footprint | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 145 kg | |
|---|---|---|
| Distributed desktop load | 80 kg | |
| Credenza top load | 60 kg | |
| Single shelf internal load | 25 kg | |
| Drawer or file bay load | 30 kg per moving bay | |
| Recommended user size | One executive user with one guest consultation position | |
| Grommet cable capacity | Three 60 mm openings, each suitable for 6 power or data cables | |
| Floor pressure distribution | Four cabinet base corners and two right panel feet share the floor load | |
| Durability acceptance target | 50,000 drawer cycles for moving storage hardware and 100,000 door/drawer open-close cycles for heavy-use hardware | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop construction | Black matte engineered-wood top with impact-resistant edge banding and 50 mm built-up visible thickness | |
|---|---|---|
| Storage cabinet panels | 25 mm black wood-based panel carcass with matte vertical faces and continuous base trim | |
| Privacy panel | Taupe matte panel with rounded lower corners mounted beneath the rear work surface | |
| Support structure | Black vertical panel legs with rounded lower edges and no exposed metal base | |
| Cable management hardware | Three circular 60 mm grommets with silver or light-gray bezels set into the cabinet face | |
| Handle and hardware | Flush black elongated desktop recess and concealed panel handles with production hardware expected inside the bays |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | The long rear top handles computer work while the left credenza return provides storage-side writing, meeting, or printing space | |
|---|---|---|
| Storage access | Three front cabinet bays provide a planned door, drawer, or file compartment layout behind the black panel fronts | |
| Cable routing | Three 60 mm grommets allow power and data cables to pass from the work surface into the cabinet or floor outlet zone | |
| Modesty and leg screening | The taupe curved panel screens the user's leg area from the front while the black right panel forms a side privacy cheek |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 4 flat-packed cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suited to a private manager office where the long computer surface, side storage, and leg-screening panel support focused daily work | |
|---|---|---|
| Senior meeting workstation | Appropriate for confidential discussions or laptop-side consultation with one visitor across the return surface |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety, strength, and durability requirements applicable to the desk structure and storage-attached workstation. | |
|---|---|---|
| EN 527-2:2002 | Office work tables safety test methods, suitable for verifying stability, vertical loads, and long-term structural performance. | |
| EN 16139:2013+A1:2015 | Strength, durability, and safety standard for non-domestic seating-area furniture; not a desk standard but useful where visitor seating is bundled. | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction use characteristics, useful as a panel-material conformance reference where declared by the supplier. |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2024 | General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing, stability, and panel workmanship of the desk and credenza. | |
|---|---|---|
| GB/T 3325-2017 | Test method for wooden furniture, suitable for strength, durability, drawer operation, and structural stability verification before acceptance. | |
| GB/T 3326-2016 | Furniture dimensional coordination, relevant when checking the 750 mm work height, knee clearance, and storage dimensions. | |
| GB 18584-2001 | Indoor decorative and refurbishing materials limit of formaldehyde emission for wood-based furniture, recommended for indoor office procurement. | |
| GB/T 39223-2020 | Product quality and technical documentation basis for furniture purchaser inspection, assembly instructions, and supplied hardware checks. |
This product must meet the following technical requirements: 1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing, stability, and panel workmanship of the desk and credenza.; 2. GB/T 3325-2017: Test method for wooden furniture, suitable for strength, durability, drawer operation, and structural stability verification before acceptance.; 3. GB/T 3326-2016: Furniture dimensional coordination, relevant when checking the 750 mm work height, knee clearance, and storage dimensions.; 4. GB 18584-2001: Indoor decorative and refurbishing materials limit of formaldehyde emission for wood-based furniture, recommended for indoor office procurement.; 5. GB/T 39223-2020: Product quality and technical documentation basis for furniture purchaser inspection, assembly instructions, and supplied hardware checks.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
