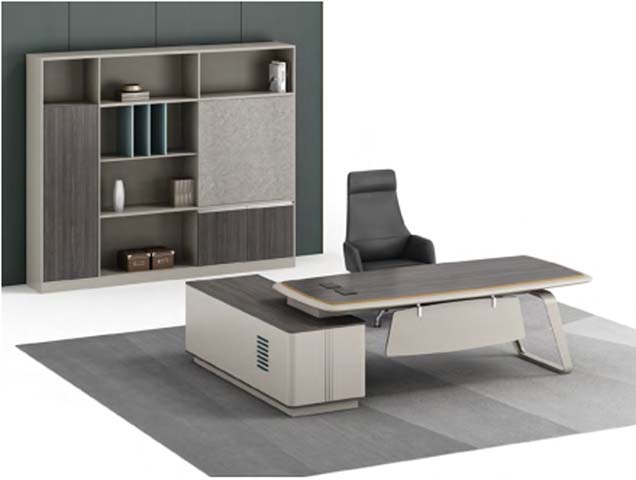

Two-Tone L-Shaped Executive Office Desk with Left Side Return Storage (model EXEC-L220-DWOFFW) is listed under CEO Executive Desk, with overall dimensions of 2200 × 1800 × 760 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: modern,two-tone,finish,L-shaped,configuration,fixed-height,integrated,storage,cable,ventilation. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2200 x 1800 x 760 mm | |
|---|---|---|
| Main work surface depth | 900 mm | |
| Left side return length | 1800 mm | |
| Side return depth | 600 mm | |
| Worktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Knee clearance height under main desk | 650 mm | |
| Knee clearance width between return and leg | 800 mm | |
| Cantilever metal leg wall thickness | 2 mm | |
| Modesty panel height | 350 mm | |
| Cable vent opening size on return | 80 x 150 mm | |
| Drawer interior depth (file drawer) | 500 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 120 kg | |
|---|---|---|
| Drawer slide cycle life | 50000 cycles | |
| Net product weight | 85 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Adjustable foot leveling range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25mm melamine-coated MDF with dark wood grain finish, 2mm PVC rounded bevel edges | |
|---|---|---|
| Base cabinetry | 18mm matte off-white laminated particleboard with sealed edge banding | |
| Desk legs | 2mm thick powder-coated light grey steel, splayed cantilever design | |
| Cable vent grilles | ABS plastic slotted ventilation panels on side return cabinet | |
| Drawer hardware | Cold-rolled steel full-extension ball-bearing slides | |
| Leveling feet | 25mm diameter nylon-tipped steel adjustable screw feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Slotted ventilation vents on return cabinet for CPU/cable airflow, compatible with desk grommets | |
|---|---|---|
| Storage configuration | Left return cabinet with enclosed storage and file drawer space for office supplies and documents | |
| Front modesty panel | Full-width panel under main work surface to conceal leg area and wiring | |
| Leveling adjustment | Adjustable feet on base to compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private offices | Provides large L-shaped workspace for managers with integrated side storage | |
|---|---|---|
| Corporate manager workspaces | Pairs with matching high-back executive chairs and storage bookcases for full suite setup |
EU Market Access Requirements* EN Standards
| EN 527-2:2002 | Office work tables safety and strength requirements, applicable to static load and stability | |
|---|---|---|
| EN 15372:2016 | Office furniture storage units safety and strength requirements, applicable to return cabinet | |
| EN 12521:2015 | Furniture durability resistance for work surfaces, applicable to finish wear performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable to load and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to drawer and cabinet testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction and finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to cabinet panel substrate requirements | |
| GB/T 11718-2009 | Medium density fiberboard for furniture, applicable to worktop substrate requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and finish quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to cabinet panel substrate requirements; 3. GB/T 11718-2009: Medium density fiberboard for furniture, applicable to worktop substrate requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
