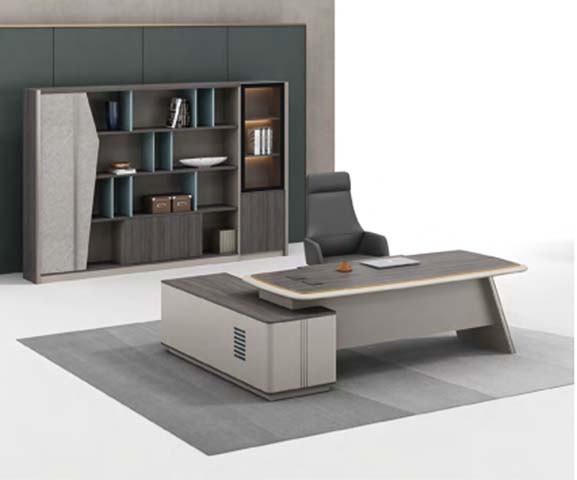

Two-Tone L-Shaped Executive Office Desk with Left Side Return Cabinet (model EXEC-L2000-LG-DW) is listed under CEO Executive Desk, with overall dimensions of 2000 × 1800 × 760 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modern,design,L-shaped,configuration,built-in,storage,cabinet,fixed,height. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall L-shaped footprint | 2000 x 1800 x 760 mm | |
|---|---|---|
| Main work surface dimensions | 2000 x 900 x 760 mm | |
| Left side return cabinet dimensions | 1600 x 500 x 620 mm | |
| Desktop thickness | 50 mm | |
| Edge banding thickness | 2 mm | |
| Under-desk knee clearance height | 650 mm | |
| Under-desk knee clearance width | 1200 mm | |
| Cable grommet diameter | 80 mm | |
| Metal support leg wall thickness | 2 mm | |
| Return cabinet top thickness | 25 mm | |
| Interior drawer internal height | 280 mm | |
| CPU compartment internal clearance | 480 mm | |
| Modesty panel height | 420 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 120 kg | |
|---|---|---|
| Single drawer slide load rating | 35 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Product net weight | 105 kg | |
| Recommended user weight capacity | 150 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and cabinet panels | 18mm MDF core with dark wood grain melamine laminate, light gray cabinet finish | |
|---|---|---|
| Support legs | Powder-coated matte light gray steel, angular cantilever design | |
| Edge banding | 2mm PVC matching desktop trim, rounded beveled edges | |
| Return cabinet vent panel | Perforated steel slat grille for CPU compartment ventilation | |
| Drawer hardware | Cold-rolled steel ball-bearing full-extension slides | |
| Cabinet hinges | Soft-close concealed steel hinges with 110-degree opening angle |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left return includes locking file drawer, open storage shelf, and ventilated CPU compartment | |
|---|---|---|
| Cable management | Desk-top cable grommets paired with under-desk removable cable tray for wire routing | |
| Locking storage | Central drawer lock secures file and utility drawers for document security | |
| Fixed height design | Static 760mm work surface height optimized for standard executive office chairs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for senior management workspaces, providing ample work surface and integrated storage | |
|---|---|---|
| Corporate management suites | Pairs with matching high-back executive chairs and background bookcase storage as coordinated office set |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 15372:2016 | Office furniture storage units durability and safety, applicable to cabinet components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to desktop load and stability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and cabinet structural performance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to engineered wood panel substrate quality | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet structural performance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to engineered wood panel substrate quality; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
