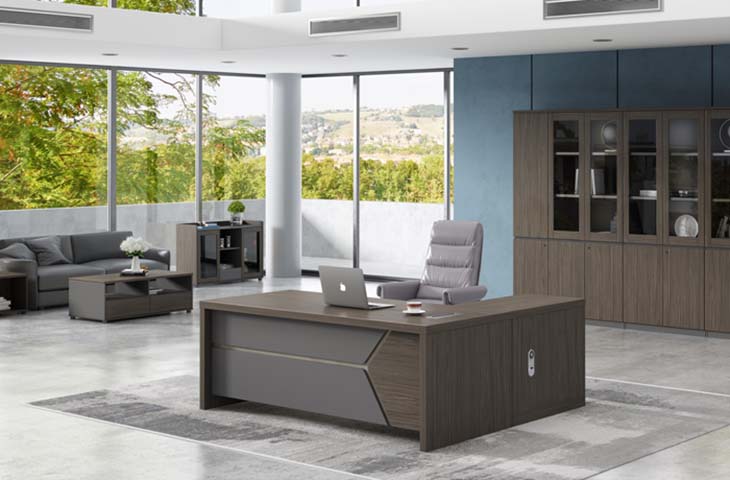

Contemporary Wood Veneer Executive Desk with Geometric Modesty Panel (model ED-WG2400-N) is listed under CEO Executive Desk. Dimensions: 2400 x 1000 x 750 mm. Materials: 25 mm engineered wood board with wood-grain melamine or veneered face and sealed 2 mm edge banding. Load capacity: 100 kg. Product Features: contemporary,executive,style,rectangular,panel,desk,floor-standing,case,support,wood-grain,finish,mixed-tone,front. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-WG2400-N |
| Overall dimensions | 2400 x 1000 x 750 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Desktop distributed static load | 100 kg |
| Concentrated monitor-bridge load | 40 kg | Side case top load | 50 kg |
| net weight | 145 kg | Suggested user weight environment | 150 kg |
| Drawer slide endurance target | 50000 cycles | Edge impact acceptance | 20 kg drop at 100 mm |
| Leveling adjustment | 10 mm per foot | Warranty target | 5 years |
| Color option count | 2 finishes | Desktop substrate | 25 mm engineered wood board with wood-grain melamine or veneered face and sealed 2 mm edge banding |
| Front privacy panel | Matte gray engineered-board panel with angular seams and contrasting black reveal lines | Side support case | Vertical wood-grain engineered-board panels forming a floor-standing box support |
| Edge and corner treatment | Black impact-resistant PVC or ABS edge trim with mitered front corners | Cable fitting | Brushed zinc-alloy or ABS cable grommet with rectangular brushed-metal faceplate |
| Base structure | Integrated panel legs with concealed corner blocks and cam-and-bolt joinery | Cable management | Rectangular rear grommet routes laptop and monitor cables into the right service cavity; a second outlet should be specified for dual-monitor use. |
| Privacy design | Full-width geometric modesty panel conceals the user's legs and under-desk equipment from visitors. | Floor-standing support | Two full-depth panel cases transfer loads directly to the floor without separate metal legs, improving lateral stiffness. |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | Carton count | 3 cartons |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Executive office | Suited to a 35square-meter manager or director office where a laptop, monitors, guest seating and secure storage are used together. |
| Open-management touchdown area | Can be placed in a glazed executive zone because the high modesty panel provides privacy while retaining a low-profile contemporary silhouette. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1000 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load | 100 kg | |
|---|---|---|
| Concentrated monitor-bridge load | 40 kg | |
| Side case top load | 50 kg | |
| net weight | 145 kg | |
| Suggested user weight environment | 150 kg | |
| Drawer slide endurance target | 50000 cycles | |
| Edge impact acceptance | 20 kg drop at 100 mm | |
| Leveling adjustment | 10 mm per foot | |
| Warranty target | 5 years | |
| Color option count | 2 finishes |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25 mm engineered wood board with wood-grain melamine or veneered face and sealed 2 mm edge banding | |
|---|---|---|
| Front privacy panel | Matte gray engineered-board panel with angular seams and contrasting black reveal lines | |
| Side support case | Vertical wood-grain engineered-board panels forming a floor-standing box support | |
| Edge and corner treatment | Black impact-resistant PVC or ABS edge trim with mitered front corners | |
| Cable fitting | Brushed zinc-alloy or ABS cable grommet with rectangular brushed-metal faceplate | |
| Base structure | Integrated panel legs with concealed corner blocks and cam-and-bolt joinery |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Rectangular rear grommet routes laptop and monitor cables into the right service cavity; a second outlet should be specified for dual-monitor use. | |
|---|---|---|
| Privacy design | Full-width geometric modesty panel conceals the user's legs and under-desk equipment from visitors. | |
| Floor-standing support | Two full-depth panel cases transfer loads directly to the floor without separate metal legs, improving lateral stiffness. | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 3 cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suited to a 35square-meter manager or director office where a laptop, monitors, guest seating and secure storage are used together. | |
|---|---|---|
| Open-management touchdown area | Can be placed in a glazed executive zone because the high modesty panel provides privacy while retaining a low-profile contemporary silhouette. |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks, safety, strength and durability requirements for the intended seated workstation | |
|---|---|---|
| EN 527-2:2002 | Office worktables dimensional safety requirements, supporting the 750 mm working-height specification | |
| EN 15372:2016 | Commercial furniture strength, durability and stability requirements for non-domestic storage desks | |
| EN 717-1:2004 | Wood-based panel formaldehyde emission classification, recommended for project indoor-air acceptance | |
| EN 12521:2015 | Strength, durability and safety requirements for indoor furniture used in non-domestic environments |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel dimensions, edge quality and stability inspection | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable if metal drawer slides, locks or support plates are supplied | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, recommended as panel procurement acceptance criteria | |
| GB/T 10357.5-2011 | Furniture surface mechanical test for strength and durability, suitable for desktop load and impact verification | |
| GB/T 4893.4-2022 | Surface abrasion and film-adhesion test method for laminated or veneered desk surfaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge quality and stability inspection; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if metal drawer slides, locks or support plates are supplied; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended as panel procurement acceptance criteria; 4. GB/T 10357.5-2011: Furniture surface mechanical test for strength and durability, suitable for desktop load and impact verification; 5. GB/T 4893.4-2022: Surface abrasion and film-adhesion test method for laminated or veneered desk surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
