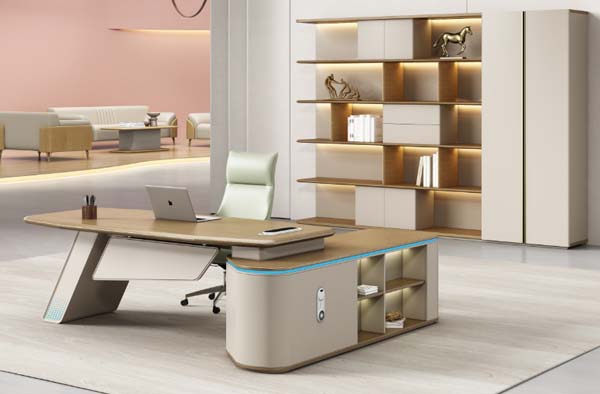

Product supplierL-Shaped Curved Executive Office Desk with LED Accent Trim and Integrated Storage Return, E1-grade engineered wood core with walnut wood veneer top
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2200 × 750 mm | |
|---|---|---|
| Overall desk dimensions | 2800 x 2200 x 750 mm | |
| Desktop thickness | 50 mm | |
| Main work surface depth | 900 mm | |
| Side return width | 1600 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width | 1200 mm | |
| Edge band thickness | 2 mm | |
| V-cantilever support wall thickness | 3 mm | |
| Open storage cubby inner dimensions | 350 x 350 x 300 mm | |
| Integrated cable grommet diameter | 80 mm | |
| Modesty panel height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 250 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 100000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended user weight limit | 150 kg | |
| Unit net weight | 180 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1-grade engineered wood core with walnut wood veneer top | |
|---|---|---|
| Base and side cabinet cladding | Beige polyurethane leather wrap over MDF substrate | |
| Left support leg | 3mm thick powder-coated steel V-cantilever frame | |
| Edge trim | 2mm thick anti-collision PVC edge banding | |
| Storage cubby shelves | 18mm thick engineered wood with walnut finish | |
| Integrated power module | ABS housing with universal AC sockets and USB charging ports | |
| LED accent strip | Low-voltage 5050 SMD blue LED strip | |
| Modesty panel | 25mm thick engineered wood with beige matte finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Ambient LED accent lighting | Edge-mounted blue LED strip illuminates return edge for ambient office effect | |
|---|---|---|
| Open storage cubbies | Six illuminated open shelves on side return for display and document storage | |
| Cable management system | 80mm grommets and under-desk cable tray route cords from surface to floor | |
| Rounded anti-collision edges | All desk and cabinet corners feature soft rounded profiles to reduce impact injury | |
| Fixed-height work surface | 750mm standard office work height aligned for ergonomic seated task use | |
| Cantilever leg design | Left V-shaped steel support provides unobstructed leg room without center posts | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Sized for CEO, president or senior manager use in corporate headquarters settings | |
|---|---|---|
| Corporate board support space | Works as a side workspace adjacent to meeting rooms for senior staff | |
| High-end home office | Suitable for luxury residential executive workspaces with matching storage furniture | |
| Matching furniture configuration | Pairs with illuminated back wall bookcase and executive leather office chair | |
| Seated desktop work use | Designed for laptop, monitor and document tasks at standard seated office height |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial desk use | |
|---|---|---|
| EN 527-2:2016 | Office work tables, mechanical safety and dimensional requirements for ergonomic use | |
| EN 13722:2004 | Furniture strength and durability requirements for storage components integrated into desks |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, stability and durability testing of office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for integrated cabinet, shelf and drawer performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for structural and finish acceptance | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks, applicable for load and stability verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for E1-grade material compliance | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable for veneer wear verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for structural and finish acceptance; 2. GB/T 3327-2017: Performance test methods for office desks, applicable for load and stability verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1-grade material compliance; 4. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable for veneer wear verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
