PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2400 x 1800 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Drawer assembly static load	25 kg per drawer
Pedestal cabinet top load	60 kg
Single-user work capacity	1 person
Side meeting capacity	2 persons
Seated knee load zone	680 mm high x 1100 mm wide x 600 mm deep
Product net weight	165 kg
Suggested adjustable floor contact	4 to 6 levelers
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25 mm thick wood-based panel with wood-grain melamine face and 2 mm matching edge banding
Dark work-surface inlay	Dark grey matte panel or leatherette writing surface inset into the wood top
Storage cabinet exteriors	Wood-grain melamine panels with vertical grain on drawer and door fronts
Dark side panels	Dark grey matte panels on exposed pedestal sides and return end panel
Edge treatment	Impact-resistant PVC or ABS edge banding on desktop and exposed cabinet edges
Drawer hardware	Full-extension side-mounted ball-bearing drawer slides with concealed front handles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated work configuration	Central open knee bay provides 680 mm clear height and 1100 mm width for an executive task chair
Drawer storage	Two vertically stacked drawers on the right pedestal provide locked or lockable office supply storage, using full-extension slides
Closed cabinet storage	Left box pedestal and right side cabinet provide door-enclosed storage for CPU units, files or personal items
Cable routing	Rear desktop grommet routes monitor and power cables into the rear cabinet or floor outlet zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	185 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suited to a private manager office where the 2400 mm main desk and 1800 mm return support computer work, documents and short meetings
Administrative or finance workstation	Suitable for users requiring locked drawer storage, cabinet filing space and central cable routing at a seated workstation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-WG-DP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-WG-DP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-WG-DPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

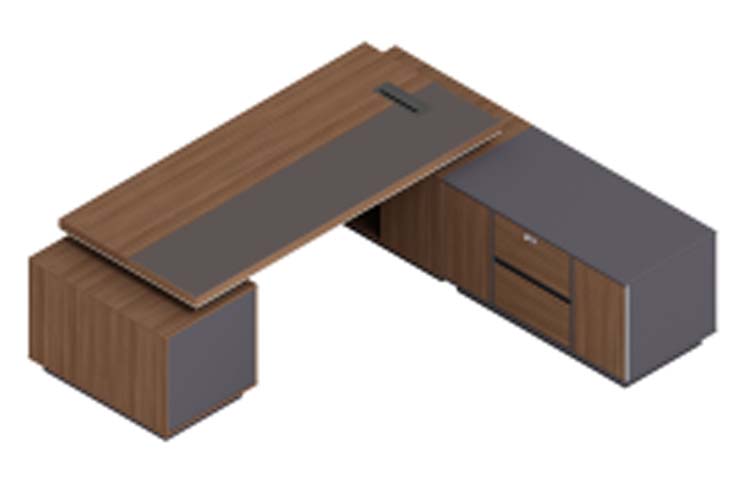

The L-Shaped Executive Desk with Dual Storage Pedestals and Cable Port presents a substantial corner-office layout with a broad main work surface and integrated return. Model ED-L2400-WG-DP is an unbranded executive desk designed for one seated user, while the side return can accommodate two people for brief discussions. Its appearance balances wood-grain melamine cabinetry with dark grey matte accents, including an inset work-surface area and exposed side panels, producing a structured, professional visual suitable for management and administrative settings. The desk is built from wood-based panels finished in wood-grain melamine. The desktop substrate is 25 mm thick with matching 2 mm edge banding, and the finished top is 50 mm thick. The main support section is 80 mm with a 2 mm metal wall. Desktop and exposed cabinet edges use impact-resistant PVC or ABS edge banding. Drawer and door fronts feature vertical wood grain, while the pedestal sides and return end panel use dark grey matte panels. The inset writing area is specified as dark grey matte panel or leatherette. Storage is organized across both supports. The right pedestal contains two vertically stacked drawers on full-extension, side-mounted ball-bearing slides, with concealed front handles and locked or lockable storage for office supplies. Enclosed cabinet space is provided by the left box pedestal and right side cabinet for CPUs, files, or personal items. The central open knee bay gives a clear 680 mm height and 1100 mm width for an executive task chair, with effective knee clearance listed as 680 mm high and 900 mm wide per main seat. Cable management is integrated through an 80 mm diameter rear desktop grommet, directing monitor and power cables toward the rear cabinet or floor outlet area, supported by a cable tray with 120 mm depth. Rated capacities include 100 kg distributed static load on the desktop, 25 kg per drawer, and 60 kg on the pedestal cabinet top. This configuration is appropriate for private manager offices, executive rooms, and administrative or finance workstations requiring secure storage, filing space, and orderly cabling. Buyers should plan for the 2400 x 1800 x 750 mm footprint, 165 kg net weight, and assembly time of 40 minutes per set, while confirming packaging details and site access before delivery.

L-Shaped Executive Desk with Dual Storage Pedestals and Cable Port Specifications
