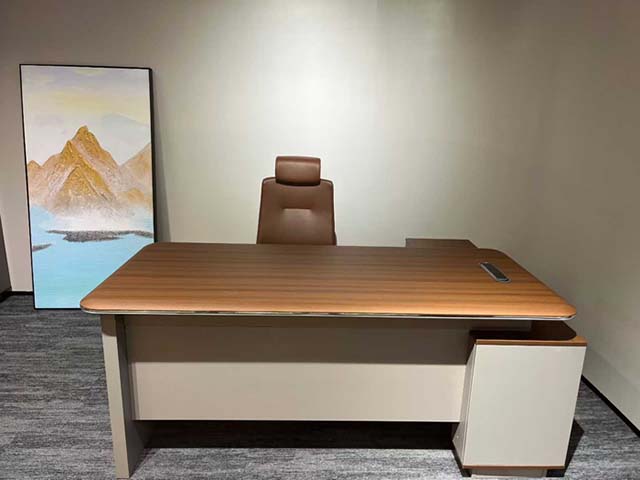

Product supplierL-Shaped Executive Office Desk with Right Side Storage Cabinet, Medium walnut wood grain melamine laminate, 25 mm particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desk product weight | 145 kg | |
|---|---|---|
| Worktop static load capacity | 120 kg | |
| Recommended user weight capacity | 150 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Edge impact resistance | 10 N·m | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | Medium walnut wood grain melamine laminate, 25 mm particleboard core | |
|---|---|---|
| Desk edge trim | Brushed stainless steel alloy, polished finish | |
| Modesty panel | Matte off-white thermofoil laminate, 18 mm MDF core | |
| Side storage cabinet | Matte off-white melamine laminate, 18 mm particleboard core | |
| Support legs | Matte light grey powder-coated steel, 1.5 mm wall thickness | |
| Cable grommet | Matte black ABS plastic with brush insert |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed grommet with brush seal to route power and data cables from worktop to under-desk area | |
|---|---|---|
| Storage configuration | Fixed right-side cabinet with internal adjustable shelf for office supplies and document storage | |
| Modesty panel | Full-width front panel to conceal under-desk wiring and leg area from front view | |
| Surface edge protection | Full-perimeter metal trim to prevent chipping and impact damage to worktop edges |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Designed for single-user management and senior staff workspaces, providing dedicated work and storage space | |
|---|---|---|
| Corporate management suite | Suitable for director and executive offices where professional appearance and functional storage are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to dimensional and safety requirements for office work desks, for ergonomic clearance verification | |
|---|---|---|
| EN 527-2:2016 | Applicable to mechanical performance requirements for office desks, including stability and load testing | |
| EN 13986:2004 | Applicable to wood-based panel specifications for desk substrate performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to performance requirements for desk products, including static and dynamic load testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Applicable to furniture sustainability criteria for material emissions and recycled content |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture, for desk panel structural integrity | |
|---|---|---|
| GB/T 3327-2017 | Applicable to performance requirements for office desks, including load and stability testing | |
| GB 18580-2017 | Applicable to formaldehyde emission limits for wood-based panels used in desk construction |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture, for desk panel structural integrity; 2. GB/T 3327-2017: Applicable to performance requirements for office desks, including load and stability testing; 3. GB 18580-2017: Applicable to formaldehyde emission limits for wood-based panels used in desk construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
