PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	120 kg
Side cabinet top load	60 kg
Drawer slide load per drawer	35 kg
Shelf load in matching bookcase	25 kg per shelf
Net weight of desk set	165 kg
Suggested user weight rating for workstation use	150 kg
Hardware durability	50,000 drawer cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and cabinet panels	18 mm moisture-resistant wood-composite core with light oak melamine face and matching PVC edge banding
Desktop build-up edge	50 mm laminated edge profile with matching melamine banding
Privacy modesty panel	18 mm light gray melamine composite panel with smooth matte finish
Storage pedestal front	Wood-grain drawer fronts with one light gray upper panel and angled decorative reveal
Support structure	Panel-leg construction with continuous floor plinth and adjustable 10 mm leveling feet
Drawer hardware	Cold-rolled steel side-mounted ball-bearing slides with zinc finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main 2400 mm desk and 1800 mm return provide separate computer, writing and meeting zones in one footprint
Integrated storage pedestal	Low side cabinet provides drawer and enclosed storage under the return while preserving the central knee bay
Cable routing	80 mm desk grommet routes laptop and monitor cables into the rear under-desk zone, with optional vertical raceway on the support panel
Equipment ventilation	Five horizontal ventilation slots on the pedestal side support airflow for a stored CPU or charging equipment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging carton count	4 flat-pack cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Suitable for managers and directors who need a computer zone, document work area and visitor-facing meeting surface
Commercial reception or supervisor room	Works in high-end administrative spaces requiring concealed storage, cable management and a formal wood-grain aesthetic

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety and dimensions	Applies to seated office work desks for stability, strength and dimensional safety
EN 527-2 mechanical safety and structure	Applicable standards and test results require confirmation
EN 15372 office storage strength and durability	Applies to the attached pedestal, drawers and shelving used in non-domestic environments
EN 717-1 formaldehyde release	Recommended test method and classification basis for wood-based panel substrates

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimension and structural integrity	Applies to wooden furniture dimensional tolerances, edge sealing, stability and assembly quality
GB/T 3325 metal furniture hardware	Applies when verifying steel slides, handles and structural hardware durability
GB 18584 formaldehyde emission	Recommended indoor wooden-furniture emission limit for panel substrates and laminate products
GB/T 10357.5 drawer strength and durability	Recommended test basis for drawer static load, impact and repeated operation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimension and structural integrity: Applies to wooden furniture dimensional tolerances, edge sealing, stability and assembly quality;
2. GB/T 3325 metal furniture hardware: Applies when verifying steel slides, handles and structural hardware durability;
3. GB 18584 formaldehyde emission: Recommended indoor wooden-furniture emission limit for panel substrates and laminate products;
4. GB/T 10357.5 drawer strength and durability: Recommended test basis for drawer static load, impact and repeated operation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-LS-2400-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-LS-2400-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-LS-2400-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

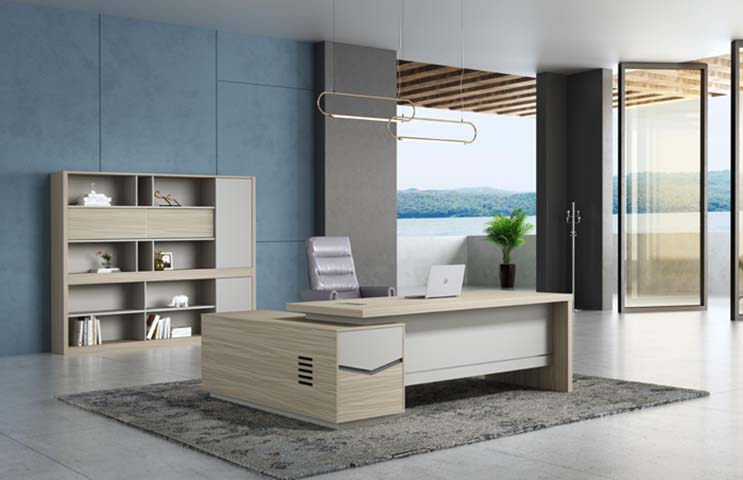

The L-Shaped Executive Office Desk with Side Storage Cabinet is a modern workstation designed for users who need a broad work surface, organized storage, and a formal office presence in one coordinated layout. Its light oak wood-grain melamine surfaces are paired with a light gray modesty panel, creating a balanced executive appearance that suits private offices and administrative suites. The desk uses an L-shaped plan, with the main desk and return forming distinct zones for computer work, writing, and visitor-facing discussion without consuming the central knee area. A low side cabinet sits beneath the return, combining drawer space with enclosed storage while maintaining open leg room at the primary seating position. Visual interest is added through wood-grain drawer fronts, one light gray upper panel, and an angled decorative reveal. Construction is based on wood-composite panels with moisture-resistant cores and matching PVC edge banding. The desktop and cabinet panels are 18 mm thick, while the desktop presents a 50 mm laminated build-up edge with matching melamine banding. Panel-leg construction, a continuous floor plinth, and adjustable leveling feet provide a structured base, and metal drawer hardware supports regular office use. The support section incorporates metal construction, and the light gray modesty panel has a smooth matte finish. Functional details support daily executive and administrative tasks. An 80 mm cable grommet directs laptop and monitor cables into the rear under-desk area, where a cable tray helps keep wiring separated from the user’s knee space. An optional vertical raceway can be fitted on the support panel for a neater cable path. The storage pedestal includes five horizontal ventilation slots, allowing airflow around a stored CPU or charging equipment. Cold-rolled steel, zinc-finished, side-mounted ball-bearing slides support the drawers. The workstation is appropriate for manager or director offices, reception offices, supervisor rooms, and high-end commercial workspaces that require concealed storage, cable control, and a polished wood-grain aesthetic. It can also serve refined residential studies where a substantial desk and integrated storage are preferred. Procurement planning should account for flat-pack delivery, assembly time, and the need to move multiple cartons into the room before installation. Buyers should review load requirements for the desktop, cabinet top, drawers, and any matching bookcase shelves, as well as site access, floor protection, leveling conditions, and whether the optional cable raceway is required. Confirming the final carton configuration and available entry clearance is advisable before purchase.

L-Shaped Executive Office Desk with Side Storage Cabinet Specifications
