PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	120 kg
Product net weight	145 kg
Recommended maximum user weight capacity	150 kg
Edge impact resistance rating	120 N
Surface abrasion resistance cycles	2000
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	18mm thick high-density particleboard
Work surface finish	Walnut woodgrain melamine laminate
Support panels and cabinet body	18mm thick engineered wood with light warm gray matte laminate
Front modesty panel	Fluted vertical groove engineered wood panel
Edge banding	2mm thick ABS matching walnut wood finish
Cable grommet	Black matte ABS plastic with brush insert

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Recessed oval grommet with brush seal on desktop, under-desk routing channel behind modesty panel
Integrated fixed storage	Right-side enclosed cabinet under side return for office supply and file storage
Dual-zone work surface	Combines main front work zone and right side return zone for multitasking and extended equipment placement
Modesty privacy panel	Full-height fluted front panel blocks view of under-desk leg area from front

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits director/manager private offices with ample work and storage space
Open office management workstation	Can be used as a dedicated workstation for senior staff in semi-open office layouts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance Reference \| \| AI ; Applicable standard recommendation; confirm against a test report
EN 527-2:2016	Office worktables dimensional safety and ergonomic requirements, applicable to work surface clearance Reference \| \| AI ; Applicable standard recommendation; confirm against a test report

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Standard for desk products, applicable to load, stability and durability testing Reference \| \| AI ; Applicable standard recommendation; confirm against a test report

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and structural strength Acceptance reference \| \| AI ; Applicable standard recommendation; confirm against a test report
GB/T 3327-2017	Performance requirements for office desks, applicable to load and stability testing Reference \| \| AI ; Applicable standard recommendation; confirm against a test report
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components Reference \| \| AI ; Applicable standard recommendation; confirm against a test report

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and structural strength Acceptance reference | | AI ; Applicable standard recommendation; confirm against a test report;
2. GB/T 3327-2017: Performance requirements for office desks, applicable to load and stability testing Reference | | AI ; Applicable standard recommendation; confirm against a test report;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components Reference | | AI ; Applicable standard recommendation; confirm against a test report;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L2200-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L2200-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L2200-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

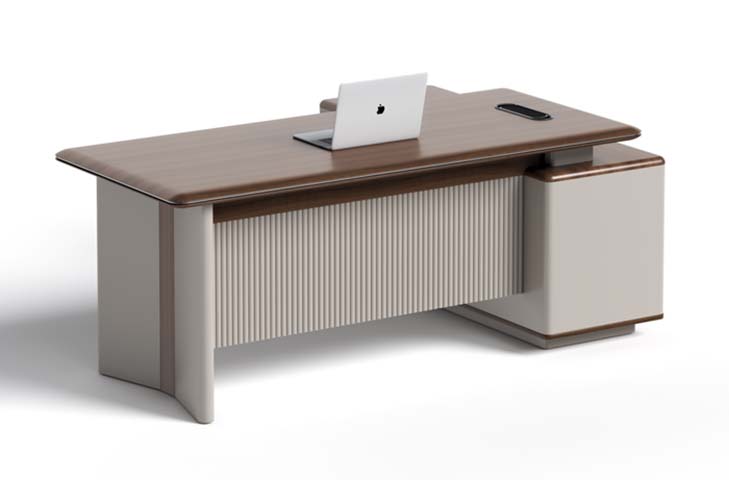

The L-Shaped Executive Office Desk with Integrated Side Storage Cabinet, model EXD-L2200-WG, is an unbranded fixed-height office workstation crafted for professional work environments, defined by a clean modern executive aesthetic that balances warm wood tones and neutral matte finishes. Its dual-zone layout pairs a wide front main work surface with a matching right-side return, creating distinct zones for core daily tasks and extended equipment placement or multitasking without crowding the primary work area. The desktop features a rich walnut woodgrain melamine finish, while support panels and the integrated cabinet body carry a light warm gray matte laminate, accented by a full-height fluted front modesty panel that delivers a tailored, polished look while blocking direct views of the under-desk leg area from the front for seated privacy. Built for long-term daily use, the desk’s work surface uses an 18mm thick high-density particleboard core with a 50mm finished top thickness, edged with 2mm thick walnut-matched ABS edge banding to resist routine impact. Structural supports rely on 80mm main section metal components with 2mm wall thickness, fitted with powder-coated hardware for durable, stable performance. All edges are sealed with precision-applied ABS banding, and the surface is engineered to withstand repeated abrasion from regular office use. The 120kg desktop static load capacity supports standard office equipment, with a 150kg uniformly distributed load reference for even weight placement across the surface. The recommended maximum user weight capacity is 150kg, with 680mm high and 900mm wide knee clearance at the main seat position for comfortable seated positioning. Functional design elements support seamless daily workflow: an 80mm diameter recessed oval cable grommet with a black matte ABS brush insert sits flush on the desktop, paired with an under-desk routing channel behind the modesty panel and a 120mm deep cable tray to keep cords organized and out of sight. The fixed enclosed cabinet built into the right-side return provides dedicated, enclosed storage for office supplies and physical files, eliminating the need for separate freestanding storage units adjacent to the desk. Drawer slides are rated to support 45kg per pair with a 50000-cycle service life for reliable access to stored items. This desk is ideally suited for private director or manager offices, where it provides ample work and storage space to support executive responsibilities, and also functions effectively as a dedicated senior staff workstation in semi-open office layouts. When planning procurement, note that each unit is shipped across multiple cartons, with a total packaged gross weight of 180kg and total packaging volume of 1m³ per set. Standard assembly requires 40 minutes per set, and teams should account for appropriate delivery access and installation support given the unit’s 145kg net weight and substantial packaged dimensions to ensure smooth deployment.
