PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	125 kg
Desktop distributed static load	80 kg
Pedestal top load	40 kg
Drawer-slide static load per drawer	25 kg
Recommended user capacity	1 person
Leveling adjustment per foot	10 mm
Panel screw pull-out resistance	60 kg per connector
Surface impact resistance	12 N·m
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Wood-grain melamine-faced particleboard or MDF panel, 50 mm thick composite edge build
Storage pedestal	Wood-grain laminate cabinet carcass with a light painted front panel
Modesty panel	Textured stone-look decorative laminate or fabric-look panel set in a recessed frame
Edge banding	Matching PVC or ABS edge banding on desktop and cabinet exposed edges
Support structure	Panel-type fixed legs and floor-standing pedestal with concealed leveling feet
Hardware	Cam-lock connectors, hinges or drawer slides, tabletop joiners and adjustable levelers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	One 160 x 80 mm desktop grommet routes power and data cables from laptop position toward under-desk space
Work layout	L-shaped layout provides a main 1800 mm task surface and a 1200 mm return for storage, printer or document handling
Storage support	Left floor-standing return forms a fixed pedestal/credesa body suitable for drawers or door storage, with internal configuration to be selected
Seating access	Central open knee bay positions the user facing the laptop with the pedestal on the left and panel leg on the right

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1900 x 980 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where the 2200 mm L-shaped top supports a laptop, documents and meeting-side consultation space
Open-plan management workstation	Can be used as a senior staff workstation with printer, filing and personal storage consolidated on the left return

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desks and work tables safety, strength and durability requirements for commercial workplace use
EN 527-2:2011	Mechanical safety, strength and durability test methods applicable to desk structure and storage-attached workstation
EN 14073-2:2004	Storage furniture safety requirements applicable if the side pedestal contains drawers or filing storage
EN 14073-3:2004	Storage furniture stability and strength requirements relevant to the floor-standing return cabinet

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, edge treatment and workmanship inspection
GB/T 3325-2017	Metal furniture general technical requirements, applicable if metal connectors, levelers or support plates are supplied
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended for workspace panel-substrate acceptance
GB/T 10357.5-2017	Furniture surfacePhysical and chemicaltest method for coatings and laminated surfaces, applicable to abrasion and impact acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge treatment and workmanship inspection;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if metal connectors, levelers or support plates are supplied;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended for workspace panel-substrate acceptance;
4. GB/T 10357.5-2017: Furniture surfacePhysical and chemicaltest method for coatings and laminated surfaces, applicable to abrasion and impact acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2200-WP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2200-WP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2200-WPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

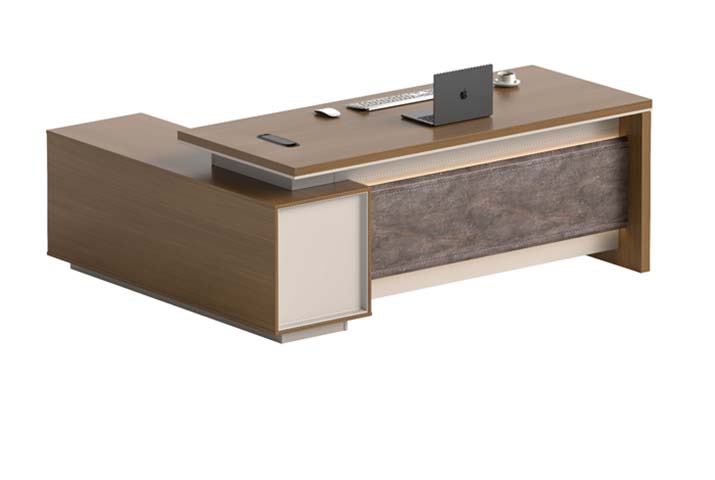

The ED-L2200-WP is an unbranded L-shaped executive desk designed for single-user management and senior-staff work environments. Its layout combines a primary task area with a side return, creating a structured workstation where focused laptop work, document handling, printing, and storage can be organized within one footprint. The user is positioned in a central open knee bay, with the floor-standing storage pedestal on the left and a panel-type support leg on the right. This arrangement gives the desk a formal executive appearance while keeping daily items within reach. Visually, the desk features a wood-grain laminate worktop and storage pedestal contrasted by a light painted pedestal front. The textured modesty panel is set within a recessed frame and offers a decorative stone-look laminate or fabric-look finish, adding a refined detail suitable for private offices. Exposed desktop and cabinet edges use matching PVC or ABS edge banding, while metal hardware, cam-lock connectors, hinges or drawer slides, tabletop joiners, and adjustable levelers support the fixed panel-leg construction. The work surface is 50 mm thick with a composite edge build. The main support section uses an 80 mm leg profile with a 2 mm metal wall, and each main seating position provides 680 mm of knee clearance height and 900 mm of width. The L-shaped top includes an 1800 mm main task surface and a 1200 mm return, while the overall 2200 mm L-shaped top provides room for a laptop, paperwork, and consultation-side use. The left return forms a fixed pedestal body suited to drawers or door storage, with the internal configuration selected to match filing or personal-storage needs. Integrated cable management is provided through a desktop grommet measuring 160 by 80 mm, routing power and data cables from the laptop area toward the under-desk space. A separate 80 mm cable opening and a 120 mm deep cable tray further support orderly cable containment. The leveling feet offer 10 mm of adjustment, helping the desk sit evenly on varied office floors. This model is well suited to a private manager office or an open-plan management workstation where printer placement, filing, and personal storage are consolidated on the return. Procurement teams should confirm the selected pedestal interior, finish options, site access, and assembly planning. The product is supplied as a kit, with packaging presented across multiple cartons and a listed assembly reference of 40 minutes per set. Weight capacity should also be matched to intended equipment, particularly for desktop devices, pedestal contents, and drawer loading.

L-Shaped Executive Desk with Side Storage Pedestal and Cable Port Specifications
