PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1800 × 780 mm
Overall footprint	3200 x 1800 x 780 mm
Main work surface depth	900 mm
Desk top thickness	40 mm
Side return cabinet top thickness	40 mm
Knee clearance height	620 mm
Modesty panel thickness	18 mm
Side cabinet panel thickness	18 mm
PVC edge band thickness	2 mm
Cable grommet diameter	80 mm
Leveling glide height adjustment	15 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desk top static load capacity	150 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	100000 cycles
Finish abrasion resistance	2000 cycles
Net product weight	240 kg
Recommended user capacity	1 person
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desk top substrate	High-density MDF core with wood veneer finish
Cabinet body substrate	High-density particleboard with matte cream melamine finish
Front modesty panel	Carved MDF with 3D wavy textured cream finish
Edge sealing	2mm PVC edge banding with rounded profile
Structural support frame	Powder-coated steel internal reinforcement frame
Hardware components	Hydraulic soft-close hinges and ball-bearing drawer slides
Cable management covers	ABS plastic sliding grommet and box covers
Base accent lighting	Low-voltage LED strip lights recessed into support bases
Leveling glides	Nylon base adjustable height glides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left return pedestal with 2 cabinet doors and file drawer space
Right support pedestal	Closed end support with integrated accent lighting recess
Cable management system	Sliding desktop cable grommets and under-desk cable tray
Drawer operation	Soft-close hydraulic damping for all drawers and cabinet doors
Storage security	Mechanical combination lock option for personal file drawer
Floor stability adjustment	15mm adjustable nylon glides at all base contact points
Modesty panel coverage	Full-width wavy panel conceals under-desk leg area from front view
Accent lighting operation	Warm white recessed LED strips operated by touch switch on base
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Designed for CEO, director or senior manager dedicated workspaces
High-end corporate workspace	Suitable for Class A office buildings and luxury corporate headquarters
Seated computer and document work	Optimized for laptop, monitor, and document processing with deep work surface
Client meeting side configuration	Wide desk top supports small in-desk client meetings across the work surface
Matching office suite setup	Coordinates with matching back bookcase and executive office seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables - Part 1: Dimensions, applicable for ergonomic desk height and clearance requirements
EN 527-2:2016	Office work tables - Part 2: Safety, strength and durability requirements, applicable for structural performance
EN 13722:2004	Furniture - Work tables - Test methods for stability, strength and durability
EN 71-3:2019+A1:2021	Safety of furniture - Migration of certain elements, applicable for finish safety compliance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products standard, applicable for structural load, durability and safety performance testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural performance and finish quality
GB/T 4897-2015	Particleboard specification, applicable for cabinet substrate material performance
GB/T 11718-2021	Medium density fiberboard specification, applicable for desk top substrate material performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable for indoor air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance and finish quality;
2. GB/T 4897-2015: Particleboard specification, applicable for cabinet substrate material performance;
3. GB/T 11718-2021: Medium density fiberboard specification, applicable for desk top substrate material performance;
4. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for indoor air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-L-WAVE-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-L-WAVE-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-L-WAVE-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

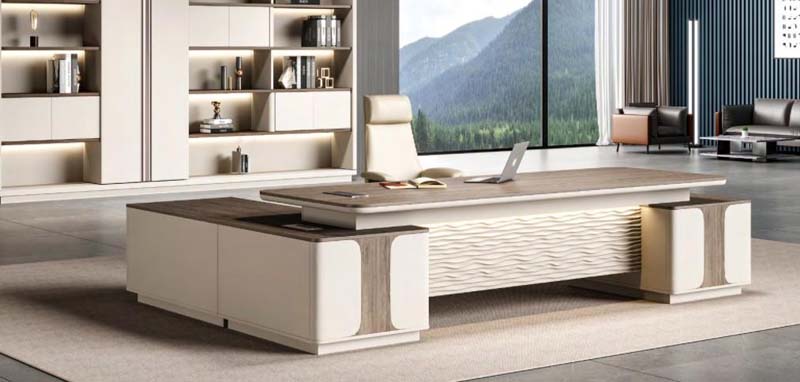

The Two-Tone L-Shaped Executive Office Desk with Left Storage Return and Wavy Modesty Panel, model EXEC-L-WAVE-3200, is a contemporary unbranded work surface solution defined by its balanced, streamlined silhouette. The design pairs a light wood grain main work surface with matte cream cabinetry, anchored by a textured, 3D wavy front modesty panel that delivers subtle visual depth. Soft rounded corners trim all exposed edges, while low-voltage LED strip lights recessed into the support bases cast a refined ambient glow. The left-positioned fixed return integrates seamlessly with the main desk to form the L-shaped layout, with a full-width modesty panel that conceals the under-desk leg area from front view. The desk holds an overall footprint of 3200 x 1800 x 780 mm, with a 900 mm deep main work surface, 40 mm thick work and return cabinet tops, 620 mm of knee clearance, and 2 mm PVC edge banding along all contact points. Constructed for long-term commercial use, the desk features a high-density MDF core with wood veneer for the work surface, paired with high-density particleboard cabinetry finished in matte cream melamine. The carved MDF wavy modesty panel is reinforced internally by a powder-coated steel frame, with 18 mm thick modesty and side cabinet panels. Hardware includes hydraulic soft-close hinges rated for 100,000 cycles and ball-bearing drawer slides rated for 50,000 cycles; the abrasion-resistant finish supports 2,000 abrasion cycles, and the work surface holds a 150 kg uniformly distributed static load. All base contact points are fitted with 15 mm adjustable nylon leveling glides for stable placement on uneven floors. Practical features include a left return pedestal with two cabinet doors and dedicated file drawer space, with an optional mechanical combination lock for the personal file drawer. Sliding ABS plastic desktop cable grommets and an under-desk cable tray keep work surfaces free of cord clutter, while soft-close damping ensures quiet, gentle operation of all drawers and doors. The closed right support pedestal houses the recessed accent lighting, and the wide work surface supports both individual focused work and small informal client meetings across the desk edge. This desk is engineered for single-user placement in private executive offices for CEOs, directors, and senior managers, as well as high-end corporate workspaces including Class A office buildings and luxury corporate headquarters. It is optimized for seated computer and document work using laptops, monitors, and paper materials, and coordinates seamlessly with matching back bookcases and executive office seating for a cohesive suite setup. Procurement teams should note the desk ships across multiple cartons, with a net product weight of 240 kg, 1 m³ total packaging volume per set, and a 40-minute reference assembly time per unit. Adjustable leveling glides are included, and the optional file drawer lock can be specified during ordering to match workspace security needs.

Two-Tone L-Shaped Executive Office Desk with Left Storage Return and Wavy Modesty Panel Specifications
