PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Side cabinet width	1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	165 kg
Distributed worktop load	100 kg
Concentrated desktop load	40 kg
Side cabinet vertical load	60 kg
Recommended user weight at workstation	150 kg
Surface abrasion acceptance target	30,000 cycles
Edge impact acceptance target	10 kg dropped from 150 mm
Hardware cycle target	40,000 operations
Warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	18 mm E1-grade wood-composite core with 50 mm built-up edge appearance
Worktop finish	Light oak-look melamine or laminate surface with straight edge banding
Cabinet carcass	18 mm warm grey wood-composite panels with matching edge banding
Back and modesty panels	18 mm grey panel board with horizontal recessed decorative lines
Decorative side panel	Grey stone-look laminated or veneered composite panel in a framed inset
Hardware and supports	Powder-coated metal connectors, cam fittings, leveler glides and ventilation grille

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main 2200 mm desk and 1800 mm return create separate computer, writing and meeting zones
Fixed side storage support	The left return cabinet supports the worktop and provides file or CPU storage space
Cable and equipment ventilation	Six horizontal side slots allow heat dissipation when a computer or power strip is housed inside
Privacy and leg screening	Full-width front modesty panel conceals wiring and the seated user's legs while retaining 680 mm knee height

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a manager or director room where the main top handles computing and the return supports document review or visitor discussion
Administrative and consulting workspace	Suitable for supervisors, sales consultants and administrative staff needing storage, printer space and a meeting side within one footprint

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements, applicable to this executive workstation
EN 527-2:2002	Office work tables dimensional safety requirements, relevant to work height and clearances
EN 15372:2016	Durability and stability requirements for non-domestic storage furniture, applicable to the side cabinet

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk products standard, suggested for desk load, stability and durability acceptance
ANSI/BIFMA X5.9-2019	Storage units standard, suggested for the integrated fixed side cabinet if used for filing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing and structural stability
GB/T 3325-2017	Metal furniture general technical requirements, applicable if metal supports or hardware are included
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended as panel procurement acceptance criterion
GB/T 10357.5-2011	Furniture strength and durability test methods, applicable to desk load and stability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing and structural stability;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if metal supports or hardware are included;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended as panel procurement acceptance criterion;
4. GB/T 10357.5-2011: Furniture strength and durability test methods, applicable to desk load and stability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2200-WG-FIX

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2200-WG-FIX

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2200-WG-FIXOpen Export Tool

Quick Actions

Post an RFQ

Product Description

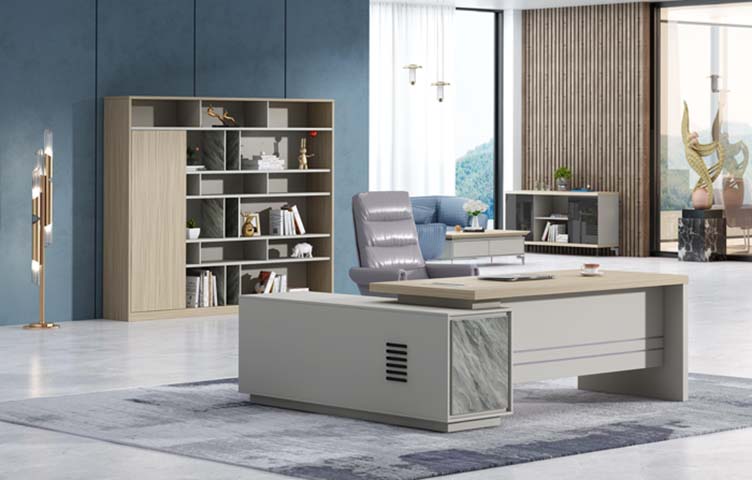

The L-Shaped Executive Office Desk with Fixed Side Storage Cabinet combines a substantial corner work surface with integrated support storage, giving private offices a structured, contemporary workspace. Model ED-L2200-WG-FIX is presented without a brand label and uses a light oak-look top, warm grey cabinet finishes, a grey stone-look decorative side panel, and metal hardware for a refined material contrast. Its L-shaped layout pairs a main desk with a return, producing distinct areas for computer work, writing, document review, and brief meeting use. The fixed cabinet is positioned on the left return and supports the worktop while offering storage for files or a computer tower. A full-width front modesty panel screens wiring and the seated user’s legs, and horizontal recessed lines on the grey back and modesty panels add subtle visual texture. The stone-look panel is set within a framed inset, strengthening the executive appearance of the side elevation. Construction uses wood-composite panels throughout. The worktop has an 18 mm E1-grade composite core with a light oak-look melamine or laminate surface, straight edge banding, and a built-up edge with a 50 mm visual thickness. Cabinet surfaces use 18 mm warm grey composite panels with matching edge banding, while the back and modesty sections use 18 mm grey panel board. Powder-coated metal connectors, cam fittings, leveler glides, and a ventilation grille complete the hardware specification. The support section incorporates a metal leg component with an 80 mm section and 2 mm wall thickness. Functionally, the desk supports a main seating position with 680 mm high and 900 mm wide knee clearance. Cable management includes an 80 mm opening and a cable tray with 120 mm depth, helping keep power and data leads separated from the work area. Six horizontal side slots provide ventilation when a computer or power strip is kept inside the cabinet. The 1200 mm wide side cabinet also helps consolidate office storage within the desk footprint. This configuration is well suited to manager or director offices, particularly where the main top handles computing and the return is used for paperwork or visitor discussion. It is also appropriate for supervisors, sales consultants, and administrative staff who require storage, printer space, and a meeting side in one coordinated arrangement. Buyers should plan for a substantial panel-built workstation with a net weight of 165 kg and packaged gross weight of 180 kg. Delivery documentation references two cartons per set, while the packaging specification also records a four-carton configuration, so receiving teams should verify the actual shipment count. The main top package is listed separately from the return or pedestal, and assembly time is referenced at 40 minutes per set. Rated loads include 100 kg distributed across the worktop, 40 kg concentrated on the desktop, 60 kg vertically on the side cabinet, and a recommended user weight of 150 kg. These limits should be matched to intended equipment and storage use, while level access and floor protection should be considered before installation.

L-Shaped Executive Office Desk with Fixed Side Storage Cabinet Specifications
