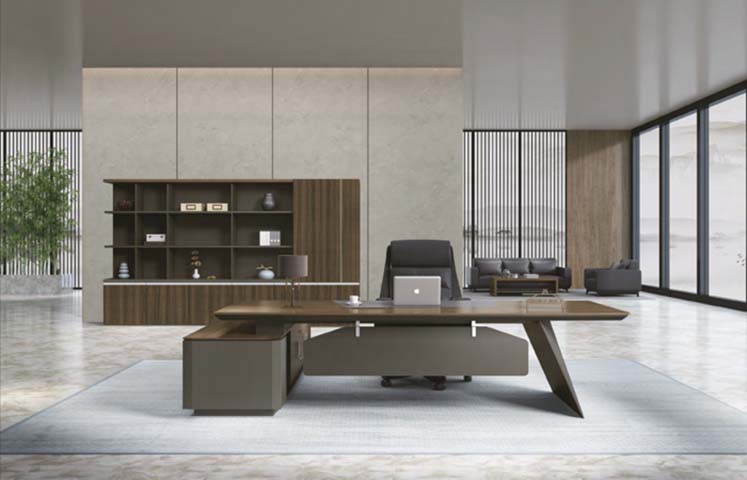

Modern L-Shaped Executive Office Desk with Left Side Return Storage (model EXD-L3200-WG) is listed under CEO Executive Desk, with overall dimensions of 3200 × 2200 × 760 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: Modern,luxury,design,Fixed-height,work,Left,storage,return,Integrated,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 3200 x 2200 x 760 mm | |
|---|---|---|
| Main work surface thickness | 25 mm | |
| Main work surface depth | 900 mm | |
| Left return cabinet width | 1200 mm | |
| Left return cabinet depth | 600 mm | |
| Knee clearance height | 620 mm | |
| Knee clearance width | 1600 mm | |
| Modesty panel height | 350 mm | |
| Edge band thickness | 2 mm | |
| Right support leg base width | 700 mm | |
| Drawer front height | 120 mm | |
| Leveling foot adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide dynamic load rating | 45 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Product net weight | 180 kg | |
| Recommended maximum user weight for integrated seating | 150 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop core | E0-grade engineered wood panel | |
|---|---|---|
| Worktop finish | Walnut wood veneer with matte PU coating | |
| Cabinet panels | Medium-density fiberboard with taupe matte lacquer | |
| Right support leg | 2mm thick powder-coated steel | |
| Edge trim | 2mm thick PVC edge banding | |
| Hardware components | Zinc-alloy handles and steel cam locks |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left return pedestal with 2 utility drawers, 1 lockable file drawer, open CPU shelf | |
|---|---|---|
| Cable management | Rear cable channel with 2 desktop grommets and under-desk cable tray | |
| Leveling adjustment | Adjustable feet on cabinet base and leg support | |
| Assembly structure | Knock-down cam-lock assembly |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for CEO, director or senior management private workspaces with visitor seating area | |
|---|---|---|
| Medium to large office layout | Requires minimum 4m x 3.5m floor space to accommodate desk, chair and guest seating |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for commercial desk performance | |
|---|---|---|
| EN 13722:2004 | Furniture storage units strength and durability requirements, applicable to side return cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, recommended for commercial office durability validation | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to integrated pedestal drawers |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel and veneer desk construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E0 grade recommended for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel and veneer desk construction; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E0 grade recommended for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
