Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 3200 x 2200 x 760 mm | |
|---|---|---|
| desktop thickness | 50 mm | |
| edge banding thickness | 2 mm | |
| main work surface depth | 1100 mm | |
| side return length | 1800 mm | |
| knee clearance height | 680 mm | |
| knee clearance width | 1200 mm | |
| toe kick recess depth | 50 mm | |
| toe kick recess height | 100 mm | |
| cable grommet diameter | 80 mm | |
| base panel thickness | 25 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| desktop static load capacity | 150 kg | |
|---|---|---|
| drawer slide load rating | 45 kg | |
| drawer slide cycle rating | 50000 cycles | |
| hinge cycle rating | 100000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| recommended user weight capacity | 150 kg | |
| product net weight | 180 kg | |
| warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| desktop substrate | 50mm thick MDF/MCF engineered wood | |
|---|---|---|
| desktop finish | Dark walnut wood-grain veneer/melamine | |
| base panel substrate | 25mm thick MDF panel | |
| base panel finish | Matte light grey lacquer/powder coating | |
| edge trim | Brushed metallic alloy trim | |
| edge sealing | 2mm PVC/ABS edge banding | |
| hardware components | Steel alloy hinges, slides and connectors | |
| ambient light strip | LED flexible strip, 3000K warm white | |
| toe kick trim | Brushed metal base molding | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

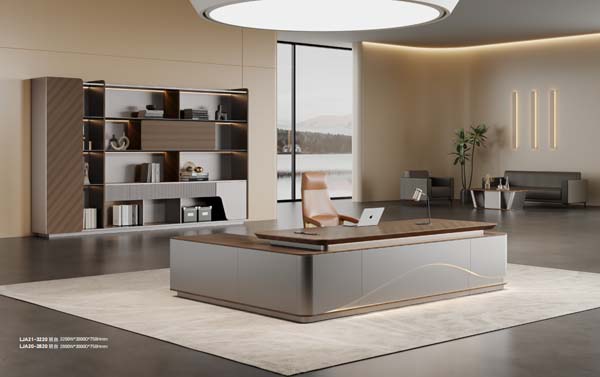

| L-shaped work layout | Dual-zone layout separating main work and meeting/auxiliary surfaces | |
|---|---|---|
| enclosed modesty panel | Full front solid panel conceals under-desk area for privacy | |
| integrated under-base lighting | Warm LED strip illuminates floor perimeter for ambient atmosphere | |
| cable management system | Grommets and under-desk tray route power/data cables out of sight | |
| integrated pedestal storage | Lockable drawers and cabinet compartment built into plinth base | |
| soft-close hardware | Drawers and cabinet doors close silently without slamming | |
| plinth support structure | Floor-supported enclosed base eliminates visible legs for clean look | |
| rounded desktop corners | Softly radiused edges prevent impact injuries | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| private executive office | Primary use for CEO, director or senior manager daily work and meetings | |
|---|---|---|
| executive office suite | Pairs with matching open bookshelf and visitor seating for complete office setup | |
| high-end corporate workspace | Fits Class A office buildings and premium commercial interiors | |
| seated work orientation | Designed for use with high-back executive office chairs at seated work height | |
| client meeting use | Side return surface accommodates small in-desk meetings and document review |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for structural validation | |
|---|---|---|
| EN 15372:2016 | Office furniture, strength and durability requirements for storage components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for performance, safety and structural testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer, hinge and load testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for panel substrate performance | |
| GB 18584-2001 | Formaldehyde emission limits for interior wooden furniture, mandatory safety requirement |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for panel substrate performance; 3. GB 18584-2001: Formaldehyde emission limits for interior wooden furniture, mandatory safety requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
