PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Distributed desktop load capacity	100 kg
Recommended user capacity	1 person
Work surface edge impact design	2 mm protective edge band
Drawer slide cycle rating	50000 cycles
Leveling adjustment range	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25 mm wood-composite substrate with light oak-tone laminate and 50 mm built-up edge
Cabinet carcass	18 mm taupe-gray wood-composite panels with matching edge banding
Writing surface	Black rectangular leather-grain or laminated desk mat set into the main work zone
Support panels	Taupe laminated panel legs with shaped floor-contact ends and rear modesty panel
Drawer and door hardware	Metal drawer slides, recessed black pull slot, hinge hardware, and one keyhole-style lock position
Cable management hardware	Recessed desktop cable slot with brush or cover strip and internal rear routing space

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Primary work configuration	L-shaped layout provides a 2800 mm main desk and an 1800 mm right return for computing, writing, and side storage
Seated access and privacy	Central open knee bay allows chair entry while the left modesty panel shields the user's leg area
Storage organization	Right return combines at least one drawer, one lockable front compartment, and a side cabinet door for files and equipment
Cable routing	Rear desktop slot feeds laptop and monitor cables toward the under-desk rear channel and storage-side equipment zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where laptop work, document review, and secure side storage occur at one workstation
Commercial workstation configuration	Pairs with an executive task chair and monitor arm for users needing a long main surface and L-shaped meeting side

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk dimensions	Use for work-surface height, seating clearance, and safety dimensional requirements
EN 527-2 office desk mechanical safety	Use for desktop strength, stability, and structural test methods before acceptance
EN 15372 office storage strength	Use for the attached pedestal, doors, drawers, shelves, and locking storage components
EN 13722 furniture surface assessment	Use as a basis for laminate panel surface quality, impact, and finish inspection

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use for desk load, stability, leg strength, and durability acceptance in commercial installations
ANSI/BIFMA X5.9 storage units	Use for drawers, doors, locks, shelves, and pedestal structural performance verification
ANSI/BIFMA e3 sustainability credits	Use only if the supplier declares materials, recycled content, adhesives, and emissions documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural basis	Apply to wooden furniture dimensional tolerances, appearance, and structural inspection of cabinet-supported desk components
GB/T 3325 wooden furniture quality basis	Apply to desk and cabinet panel durability, edge finishing, hardware operation, and acceptance inspection
GB/T 39600 formaldehyde emission basis	Use E1 emission classification as the procurement requirement for wood-based panels and laminated components
GB/T 4893.4 surface wear test	Use for laminate desktop abrasion resistance where the purchaser requires documented surface-durability testing
GB/T 10357.5 furniture strength test	Use for table load, shelf, and structural strength acceptance of the desktop and storage cabinet

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural basis: Apply to wooden furniture dimensional tolerances, appearance, and structural inspection of cabinet-supported desk components;
2. GB/T 3325 wooden furniture quality basis: Apply to desk and cabinet panel durability, edge finishing, hardware operation, and acceptance inspection;
3. GB/T 39600 formaldehyde emission basis: Use E1 emission classification as the procurement requirement for wood-based panels and laminated components;
4. GB/T 4893.4 surface wear test: Use for laminate desktop abrasion resistance where the purchaser requires documented surface-durability testing;
5. GB/T 10357.5 furniture strength test: Use for table load, shelf, and structural strength acceptance of the desktop and storage cabinet;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2800-EXEC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2800-EXEC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2800-EXECOpen Export Tool

Quick Actions

Post an RFQ

Product Description

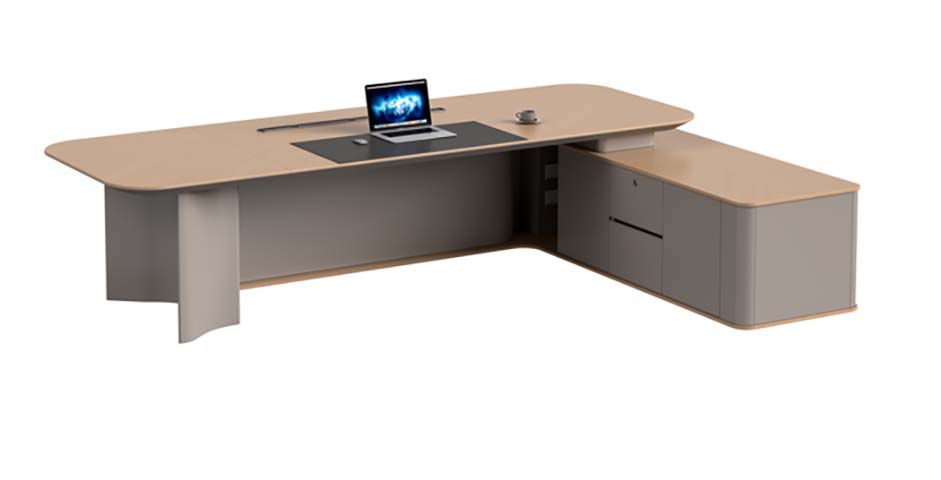

The L-Shaped Executive Office Desk with Integrated Side Storage Pedestal presents a substantial two-tone workstation defined by a long main desk and a right-hand return. Its light oak-tone work surfaces contrast with taupe-gray cabinetry, while a black rectangular writing mat set into the main work zone reinforces the executive character. Rounded desktop corners, panel-style supports, and a rear modesty panel give the layout a structured, enclosed appearance without making the knee area feel closed. The central open bay allows direct chair entry, and the left modesty panel provides visual screening for the user. The return extends the work surface while supporting storage and equipment placement, creating distinct zones for computing, writing, documents, and side tasks. Construction combines wood-composite panels, laminate finishes, and metal support hardware. The desktop uses a 25 mm wood-composite substrate with light oak-tone laminate and a 50 mm built-up edge. Taupe-gray 18 mm wood-composite panels form the cabinet carcass with matching edge banding, and taupe laminated panel legs with shaped floor-contact ends support the desk alongside a rear modesty panel. The support section incorporates an 80 mm main section with 2 mm metal wall, while the work surface includes a 2 mm protective edge band. A leather-grain or laminated black desk mat is inset in the primary writing area. The configuration provides a 2800 mm main desk and an 1800 mm right return, planned for one user with 680 mm high and 900 mm wide knee clearance at the main seat. The return integrates at least one drawer, one lockable front compartment, and a side cabinet door suitable for files and equipment. Metal drawer slides, a recessed black pull slot, hinge hardware, and one keyhole-style lock position complete the storage pedestal. The drawer slides carry a 50,000-cycle rating. Practical load references include a 100 kg distributed desktop load capacity and a 150 kg uniformly distributed top static load reference; the desk net weight is 145 kg. Cable management is built into the layout through a recessed desktop slot fitted with a brush or cover strip. An 80 mm diameter cable opening routes laptop and monitor cables into the under-desk rear channel and toward the equipment zone on the storage side, where the internal cable tray offers 120 mm depth. Leveling adjustment of 10 mm helps adapt the desk to uneven floors. This model is well suited to a private manager office, executive suite, or commercial workstation where laptop work, document handling, meetings at the desk, and secure storage need to occur in one place. It pairs naturally with an executive task chair and a monitor arm. Procurement planning should account for the 180 kg packaged gross weight, two-carton set reference, separately packed return and pedestal, 40-minute assembly reference, and the need to coordinate delivery access, floor protection, and installation space.

L-Shaped Executive Office Desk with Integrated Side Storage Pedestal Specifications
