PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop load	80 kg
Pedestal drawer load per drawer	25 kg
Open shelf load	20 kg per shelf
Cabinet anti-tip stability	40 kg horizontal restraint rating
Product net weight	165 kg
Seating capacity	1 user at the desk with 2 guest chairs opposite
Panel fastener pull-out resistance	120 N per cam-confirmat connection
Leveling adjustment	10 mm per foot
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	18 mm moisture-resistant engineered wood board under a 50 mm built-up top, with wood-grain melamine face
Pedestal and side panels	18 mm wood-grain engineered wood panels with matching edge banding and black recessed plinth
Modesty panel	18 mm dark charcoal engineered wood panel with two horizontal decorative grooves
Edge protection	2 mm PVC edge banding on exposed desktop and cabinet edges
Hardware	Zinc-plated steel hinges, drawer slides, cam locks and confirmat screws
Leveling base	Injection-molded black plastic or powder-coated steel plinth pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Left fixed pedestal provides enclosed office storage with one file drawer and two utility drawers
Cable management	Rear desktop grommet routes power and data cables into the recessed under-desk zone
Modesty privacy	Dark rear panel shields the seated user's legs and conceals under-desk cabling
Floor leveling	Recessed base pads or adjustable glides stabilize the desk on carpet and hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits a director or manager office requiring computer work, meeting space and pedestal file storage
Managerial meeting room	Can be paired with guest seating for brief face-to-face discussions across the desktop

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-WG2200-1P

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-WG2200-1P

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-WG2200-1POpen Export Tool

Quick Actions

Post an RFQ

Product Description

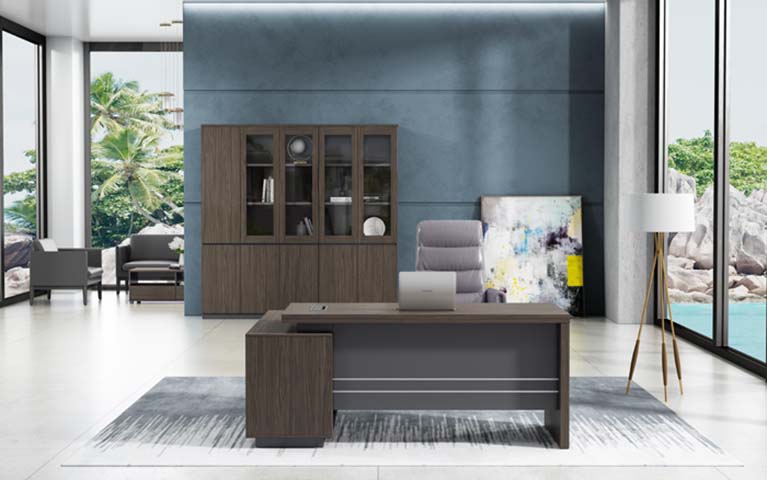

The Executive Office Desk with Left Storage Pedestal, model EXD-WG2200P, presents a structured, modern executive silhouette with an L-shaped work layout. Its wood-grain engineered wood surfaces create a refined office appearance, while dark charcoal modesty panels, black edge trim, and a black recessed plinth provide visual contrast. The desk is configured for one user at the main work position and can accommodate two guest chairs opposite for short meetings or managerial discussions. Construction centers on an 18 mm moisture-resistant engineered wood board beneath a 50 mm built-up desktop, finished with wood-grain melamine. The pedestal and side panels use matching 18 mm engineered wood with coordinated edge banding. Exposed desktop and cabinet edges are protected by 2 mm PVC edge banding, and the support uses an 80 mm main section with a 2 mm metal wall. Zinc-plated steel hinges, drawer slides, cam locks, and confirmat screws provide the primary hardware. A rear modesty panel includes two horizontal decorative grooves and contributes to the desk’s formal appearance. The fixed left pedestal combines enclosed office storage with one file drawer and two utility drawers, keeping documents and daily working items within reach. The desktop has an 80 mm cable opening that routes power and data cables into the recessed under-desk area, where a cable tray supports organization. The dark rear panel screens the seated user’s legs and helps conceal cabling. Recessed base pads or adjustable glides allow the desk to be stabilized on carpet or hard floors. Load provisions include an 80 kg distributed desktop capacity, 25 kg per pedestal drawer, and 20 kg per open shelf. The cabinet includes anti-tip stability provisions with a 40 kg horizontal restraint rating. This executive desk is suited to private director or manager offices that need computer workspace, meeting space, and pedestal file storage in one coordinated arrangement. It is also appropriate for managerial meeting rooms where brief face-to-face discussions take place across the desk. Procurement teams should plan for a substantial office installation, with the product net weight at 165 kg and packaged gross weight at 180 kg per set. Delivery and receiving details should be confirmed against the final shipment documentation, as the supplied packaging references indicate separate cartoning for the main top and return or pedestal. Planning should also include floor protection, access clearance, assembly labor, and placement of the left pedestal before cable setup. The effective knee clearance is 680 mm high and 900 mm wide per main seat, which should be checked against the intended executive chair.

Executive Office Desk with Left Storage Pedestal Specifications
