PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2400 x 1800 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Distributed desktop load	80 kg
Pedestal top load	40 kg
Storage cabinet shelf load	25 kg per shelf
Leveling adjustment	10 mm
Recommended user capacity	1 person
Edge impact design	2 mm PVC edge banding
Panel fastener pull-out value	120 N
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25 mm E1-class particleboard with wood-grain melamine surface and 2 mm PVC edge
Cabinet and modesty panels	18 mm light gray melamine-faced particleboard with matching edge banding
Accent fascia	12 mm stone-pattern laminate panel set into the return front
Support frame	Panel-leg construction with 50 mm thick laminated side supports
Leveling feet	Brushed silver metal adjustable feet with polymer base pads
Hardware and cable parts	Steel hinges, cam locks, dowels and black polymer cable cover

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Rectangular 120 x 80 mm desktop cable port routes laptop and monitor cables into the cabinet-side channel
Storage return	Fixed side cabinet provides enclosed under-desk storage and supports the return work surface
Ventilation	Five horizontal slots in the return end panel provide air movement for CPUs or charging equipment
Floor leveling	Metal screw feet provide 10 mm height compensation while lifting panels above floor moisture

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where the return supports computer work, writing and visitor discussion
Commercial procurement fit-out	Suitable for owner offices, directors' rooms and high-end administrative work areas requiring integrated cable and storage planning

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength	EN 527:2002
Office furniture dimensions	EN 527:2011
Formaldehyde panel emission	EN 13986:2004+A1:2015 E1

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk strength and durability	ANSI/BIFMA X2021
Formaldehyde emissions	ANSI/BIFMA e2019Furniture Sustainability Standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission	GB/T 39600E1 limit
Panel furniture physical property	GB/T 3324
Furniture mechanical safety	GB 28007

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission: GB/T 39600E1 limit;
2. Panel furniture physical property: GB/T 3324;
3. Furniture mechanical safety: GB 28007;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2400-CAB-OAK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2400-CAB-OAK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2400-CAB-OAKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

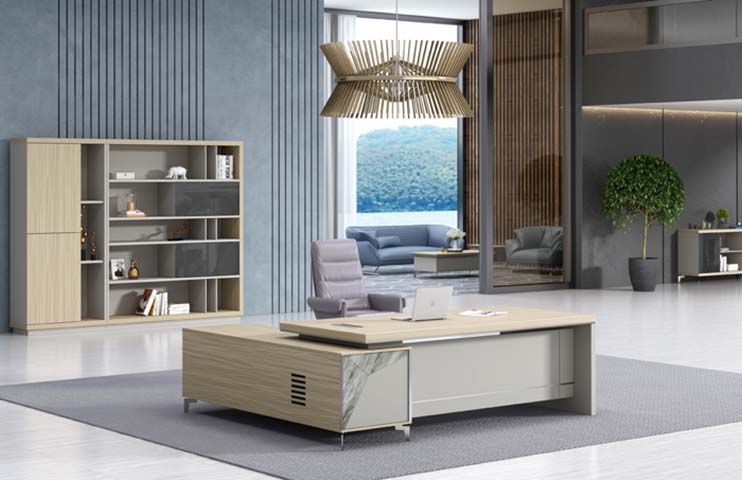

The Executive L-Shaped Office Desk with Side Storage Cabinet presents a structured, modern executive workspace with a broad main desk and a connected return. Its overall footprint is 2400 x 1800 x 750 mm, arranged to give one user a primary work zone and a side surface that supports computer tasks, paperwork, and informal discussion. The desk combines warm wood-grain melamine on the main top with light gray cabinet and modesty panels, while a stone-pattern accent fascia set into the return front adds a refined visual contrast. The layout is anchored by substantial laminated panel legs and brushed silver leveling feet, giving the piece a clean, built-in appearance suited to private offices and professional interiors. Construction uses panel-based components rather than a tubular frame. The desktop substrate is 25 mm E1-class particleboard faced with wood-grain melamine, producing a finished top thickness of 50 mm and finished with 2 mm PVC edge banding. Cabinet and modesty panels are 18 mm light gray melamine-faced particleboard with matching edge treatment, and the accent fascia is a 12 mm stone-look laminate panel. The main support section is 80 mm with a 2 mm metal wall specification, while the 50 mm laminated side supports contribute to the desk’s substantial silhouette. Brushed silver metal screw feet include polymer base pads and provide 10 mm of leveling adjustment. Functionality is integrated directly into the L-shaped form. A rectangular 120 x 80 mm cable port on the desktop routes laptop and monitor cables toward the cabinet-side channel, which includes an 80 mm diameter cable opening and a cable tray with 120 mm depth. A black polymer cable cover helps maintain a tidy appearance. The fixed side cabinet supplies enclosed under-desk storage and supports the return work surface, while five horizontal ventilation slots in the return end panel encourage air movement for CPUs or charging equipment. The main seat position offers 680 mm high and 900 mm wide effective knee clearance. Rated load capacities include 80 kg distributed across the desktop, 40 kg on the pedestal top, and 25 kg per storage cabinet shelf. This model is well suited to owner offices, directors’ rooms, executive suites, and high-end administrative work areas where cable planning and storage should be part of the desk rather than added afterward. It also fits a residential office designed with a commercial-grade, executive aesthetic. Procurement teams should plan for a single-user workstation, 145 kg net weight, and multi-carton delivery; the supplied reference notes indicate one set packed across cartons, including a separately packed return or pedestal section. Installation planning should allow sufficient access, floor protection, and assembly time, with the reference assembly time listed as 40 minutes per set. Leveling feet help accommodate subtle floor variation, while the storage load limits should be reviewed against intended filing and equipment use.
