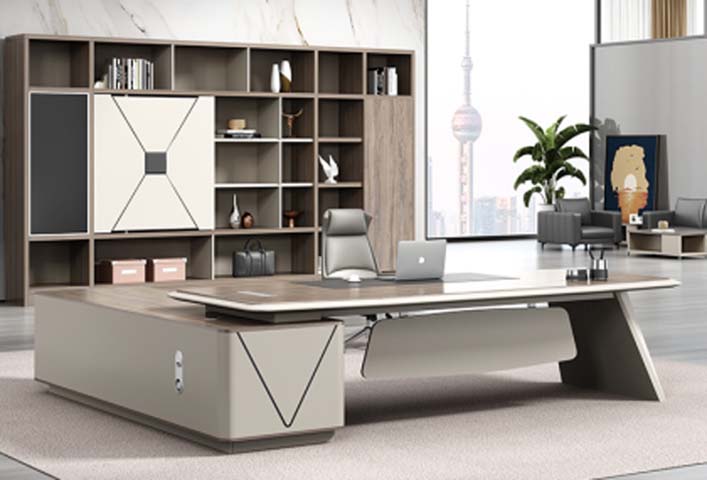

Modern Two-Tone L-Shaped Executive Office Desk with Left Storage Return (model EXD-L2400-TAU-GBL) is listed under CEO Executive Desk, with overall dimensions of 2400 × 1800 × 760 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: contemporary,geometric,style,L-shaped,fixed,return,cable,management,two-tone,taupe/off-white,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1800 x 760 mm | |
|---|---|---|
| Main desktop thickness | 50 mm | |
| Left storage return width | 1800 mm | |
| Main work surface depth | 900 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width | 1200 mm | |
| Edge band thickness | 2 mm | |
| Cable grommet diameter | 76 mm | |
| Modesty panel height | 350 mm | |
| Support leg wall thickness | 2 mm | |
| Integrated writing pad size | 1000 x 500 mm | |
| Storage cabinet internal shelf height | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 100000 cycles | |
| Cable tray load rating | 10 kg | |
| Net product weight | 127 kg | |
| Recommended user weight capacity | 150 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Limited warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | 18mm MDF with high-density particleboard reinforcement | |
|---|---|---|
| Surface finish | Matte thermally fused laminate in taupe and off-white | |
| Writing surface inlay | Faux leather padded writing pad | |
| Support frame | Powder-coated steel angled splayed legs | |
| Storage cabinet panels | 16mm melamine-faced engineered wood | |
| Hardware components | Black finished metal trim, soft-close hinges, ball-bearing slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Top-mounted 76mm grommet + undermount cable tray | |
|---|---|---|
| Storage configuration | Left fixed return with lockable file drawer and CPU compartment | |
| Privacy modesty panel | Fixed front panel below work surface | |
| Work surface layout | Dual-zone layout with primary writing zone and secondary meeting zone |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application | Private executive and CEO offices | |
|---|---|---|
| Recommended configuration | Paired with matching high-back ergonomic executive chair and coordinated background bookcase |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for structural load testing | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units performance requirements, applicable for return cabinet durability | |
| EN 717-1:2004 | Wood-based panels formaldehyde emission determination, applicable for indoor air quality compliance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable for load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable for return cabinet and drawer testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desktop and cabinet structural performance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core material structural integrity checks | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desktop and cabinet structural performance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core material structural integrity checks; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
