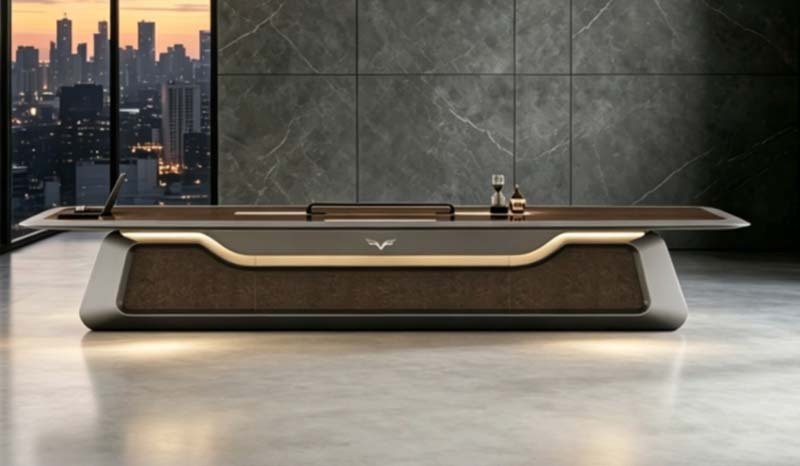

Product supplierLuxury Modern LED-Lit Executive Desk with Closed Low-Profile Base, E0-grade MDF and MFC board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 1100 × 760 mm | |
|---|---|---|
| Desktop thickness | 66 mm | |
| Front modesty panel height | 650 mm | |
| Knee clearance height under desktop | 640 mm | |
| Knee clearance depth under desktop | 600 mm | |
| Desktop writing pad inlay width | 1200 mm | |
| Desktop cable grommet diameter | 80 mm | |
| Rounded desktop edge radius | 30 mm | |
| Front LED light strip length | 2800 mm | |
| Lower base plinth height | 50 mm | |
| Gold accent trim width | 20 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 200 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Recommended maximum user weight for workstation use | 150 kg | |
| Product net weight | 260 kg | |
| Finish abrasion resistance rating | 1000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Core substrate | E0-grade MDF and MFC board | |
|---|---|---|
| Desktop surface | Walnut wood veneer with matte lacquer topcoat | |
| Outer frame and side panels | Matte gray polyurethane lacquer | |
| Desktop writing area inlay | Stain-resistant tech leather | |
| Accent trim strip | Brushed gold-finish metal | |
| Ambient lighting | Embedded SMD LED strip with diffused cover | |
| Cable management components | ABS plastic lift cable grommet and steel under-desk tray | |
| Hardware components | Cold-rolled steel soft-close slides and buffered hinges | |
| Edge banding | 1.5mm thick PVC/veneer matching edge seal | |
| Lower front panel insert | Textured dark brown leather-look laminate | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Ambient lighting system | Touch-controlled front and base LED strips with warm white output | |
|---|---|---|
| Cable management system | 80mm lift grommet connecting to under-desk steel cable tray | |
| Storage configuration | Matching side return cabinet with 3 soft-close drawers and lockable compartment | |
| Desktop work surface | Leather-inlaid writing zone with rounded chamfered edges for forearm comfort | |
| Locking mechanism | Fingerprint-activated digital lock for secure document storage drawer | |
| Power integration | Embedded power module with 3 AC sockets, 2 USB-A ports and 1 RJ45 data port | |
| Base design | Floor-mounted closed plinth base with no exposed legs for structural stability | |
| Seating clearance | 640mm high knee bay to accommodate standard executive office chairs with armrests | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Private CEO/president executive offices in high-rise commercial buildings | |
|---|---|---|
| Target user group | Senior executives, board members and senior management requiring a premium workstation | |
| Recommended matching furniture | Matching high-back executive chair, lateral filing cabinet and background wall bookcase | |
| Suitable office layout | Freestanding placement in the center of a private office, not placed against a wall | |
| Usage scenario | Daily administrative work, executive meetings and visitor reception at the workstation | |
| Recommended space size | Minimum 20 sqm private office to accommodate the 3.2m desk and circulation space |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011+A1:2016 | Office worktables safety and strength requirements, applies to structural performance verification | |
|---|---|---|
| EN 13722:2004 | Furniture test for surface resistance to cold liquids, applies to lacquer stain resistance | |
| EN 717-1:2004 | Formaldehyde emission determination for wood-based panels, applies to substrate emission limits |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer slide and hinge cycle durability testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to structural stability and panel quality | |
|---|---|---|
| GB/T 4893.1-2021 | Surface abrasion resistance test for furniture finishes, applies to lacquered desktop and frame surfaces | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applies to E0-grade MDF/MFC substrate materials | |
| GB/T 10357.1-2013 | Mechanical strength test for tables, applies to desktop static load and structural stability verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to structural stability and panel quality; 2. GB/T 4893.1-2021: Surface abrasion resistance test for furniture finishes, applies to lacquered desktop and frame surfaces; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applies to E0-grade MDF/MFC substrate materials; 4. GB/T 10357.1-2013: Mechanical strength test for tables, applies to desktop static load and structural stability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
