PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	95 kg
Distributed worktop load	80 kg
Pedestal drawer or shelf load	25 kg per storage level
Recommended user weight at workstation	120 kg
User capacity	1 person
Monitor and equipment capacity	30 kg
Hardware cycle target	50000 drawer cycles
Surface wear acceptance target	20000 abrasion cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25 mm thick wood-based panel with a 50 mm built-up edge
Worktop surface	Dark matte laminate or melamine face with rounded edge banding
Pedestal and modesty panels	18 mm grey wood-based panels with matching edge banding
Left side support	Dark 50 mm thick floor-standing panel with protective edge band
Internal drawer construction	Steel epoxy-coated slides with 15 mm panel drawer boxes
Hardware and cable port	Powder-coated steel or plastic cable grommet with brush or cover plate

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated workstation layout	Single-user 750 mm-high desk with a 900 mm central knee opening between the left support and right pedestal
Storage support	Right floor-standing pedestal provides a 450 mm-wide under-top storage zone suitable for drawers or a door compartment
Cable management	One 160 x 80 mm oval desktop port routes monitor and power cables toward the rear modesty-panel zone
Installation form	Floor-standing knockdown desk using panel supports and a fixed right pedestal, requiring on-site screw and cam-fit assembly

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office	Suits a manager or executive room where the 1800 mm top supports a laptop, monitor and documents while the right pedestal stores files
Meeting or supervisor workstation	Works as a consultation desk for one user plus one visitor because the central kneehole leaves the front area open

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Safety, strength and durability requirements for office work tables, applicable to the 750 mm work surface and storage pedestal
EN 527-2:2002	Office work table mechanical safety test methods, including stability, strength and durability verification
EN 15372:2016	Safety, strength and durability requirements for commercial storage furniture, applicable to the right pedestal
EN 717-1:2004	Formaldehyde release chamber test method for wood-based panel substrates

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, stability and workmanship
GB/T 3325-2017	Test methods for wooden furniture, applicable to strength, durability, stability and drawer hardware verification
GB 18580-2017	Formaldehyde emission limit for wood-based panels and finish materials used in the desk substrate
GB/T 10357.5-2011	Furniture surface mechanical test for assessing desktop resistance to impact, abrasion and household use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, stability and workmanship;
2. GB/T 3325-2017: Test methods for wooden furniture, applicable to strength, durability, stability and drawer hardware verification;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels and finish materials used in the desk substrate;
4. GB/T 10357.5-2011: Furniture surface mechanical test for assessing desktop resistance to impact, abrasion and household use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-RP-1800-800-750

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-RP-1800-800-750

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-RP-1800-800-750Open Export Tool

Quick Actions

Post an RFQ

Product Description

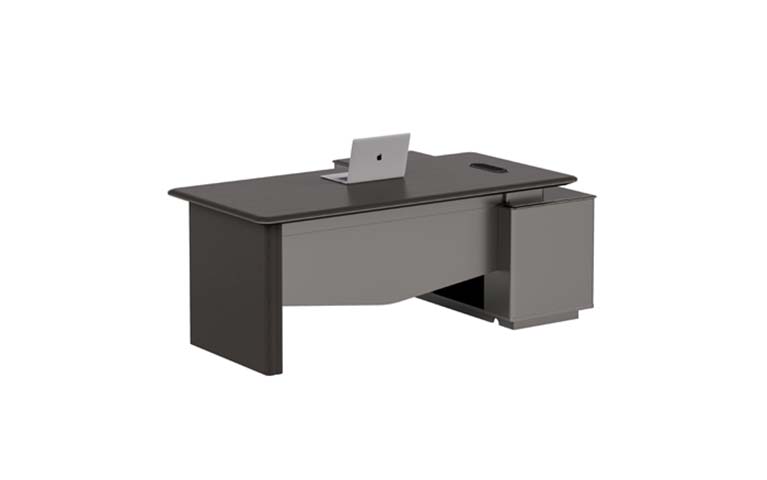

The Executive Desk with Right Storage Pedestal and Cable Port presents a structured, two-tone office profile suited to professional settings. Its 1800 x 800 x 750 mm form combines a dark wood-based worktop with a grey panel storage pedestal and matching modesty panel, creating a substantial single-user workstation with a clean front elevation. A central 900 mm-wide knee opening sits between the dark left floor-standing support and the fixed right pedestal, while the 680 mm knee clearance supports a conventional seated layout. The pedestal forms a 450 mm-wide under-top storage zone that can be configured with drawers or a door compartment. Construction uses panel supports, a built-up worktop edge, and knockdown joinery intended for on-site screw and cam-fit assembly. The worktop substrate is a 25 mm wood-based panel with a 50 mm built-up edge, finished in dark matte laminate or melamine with rounded edge banding. Pedestal and modesty panels are 18 mm grey wood-based panels with matching edge banding, and the left support is a dark 50 mm floor-standing panel with protective edge banding. The main support section is 80 mm with a 2 mm metal wall. Drawer boxes use 15 mm panels on steel epoxy-coated slides, with a hardware cycle target of 50000 drawer cycles. The cable fitting is a powder-coated steel or plastic grommet available with a brush or cover plate. Practical features focus on organised daily use. The desktop includes one 160 x 80 mm oval cable port that directs monitor and power cables toward the rear modesty-panel area, complemented by an 80 mm diameter cable opening and a cable tray depth of 120 mm. The worktop has a distributed load capacity of 80 kg and monitor or equipment capacity of 30 kg. Each pedestal drawer or shelf level supports 25 kg, and the workstation is rated for a 120 kg user. At 95 kg net weight, the desk balances visual presence with storage-based support. This model is appropriate for a private manager or executive office, where the broad top can hold a laptop, monitor, and documents while files are kept in the right-hand pedestal. It also serves as a supervisor or consultation desk for one user and one visitor, because the open central kneehole keeps the front area accessible. Procurement planning should allow for floor-standing assembly, a reference assembly time of 40 minutes per set, and separate packaging for the main top and return or pedestal. Logistics information lists one set across two cartons, with packaging dimensions and weight details to be confirmed against the final shipment configuration before ordering.

Executive Desk with Right Storage Pedestal and Cable Port Specifications
