PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Distributed desktop load	100 kg
Central knee-bay static load	60 kg
Side support panel lateral stability load	30 kg
Cable grommet cable capacity	6 cables
Recommended user weight for matching seating	150 kg
Panel fastener torque check interval	12 months
Warranty duration target	5 years
Color options for range planning	2 colors
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm E1-grade wood-composite substrate with walnut-look melamine face and 2 mm PVC edge banding
Total top build-up	50 mm thick molded or built-up work surface with impact-resistant edge profile
Front fascia and modesty panels	18 mm wood-composite panels in grey matte melamine with diagonal decorative joint lines
Side support panels	50 mm wood-grain laminate panel-end supports with recessed plinth base
Cable cover and hardware	80 mm silver-grey plastic or zinc-alloy grommet with brushed finish and black sealing insert
Connectors and leveling parts	Steel connector bolts, cam locks, corner brackets, and adjustable nylon leveling feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated work configuration	Fixed 760 mm high rectangular work surface supports laptop, keyboard, document, and monitor use in a central knee bay.
Cable management	One 80 mm side-panel grommet routes up to six power and data cables while concealing the desk-side connection point.
Privacy and structure	Full-width angular grey modesty panel conceals the user's leg area and ties the two side support panels together.
Installation form	Knockdown panel assembly uses connector bolts and cam locks, with two operators recommended for positioning the 145 kg desk.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping volume	0.58 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where the 2400 mm top, privacy panel, and side cable access support laptop and document work.
Meeting-ready director workspace	Fits high-end reception-adjacent offices or director suites needing one large desk with coordinated storage and visitor seating nearby.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Apply to safety, strength, and dimensional requirements for a non-domestic seated work desk.
EN 527-2 office desk mechanical tests	Use strength, durability, and stability test methods for desktop, supports, and knee-bay construction.
EN 717-1 formaldehyde release	Specify the chamber method and E1 acceptance target for all wood-based panels.
EN 15372 office furniture durability	Use as an additional commercial-furniture strength and durability reference.
EN 12521 furniture strength and durability	Use as supporting verification where table-like horizontal-surface loads are assessed.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use load, stability, leg-strength, and surface-performance tests adapted for the 2400 mm executive desk.
ANSI/BIFMA e3 furniture sustainability	Use as an optional procurement framework for panel materials, low-emission adhesives, and supplier documentation.
ANSI/BIFMA G1 ergonomic desk guidance	Use the 760 mm fixed height and central knee clearance as part of seated-workspace review.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensions and material acceptance	Apply to wooden office furniture dimensional tolerances, material labeling, and assembly quality at incoming inspection.
GB/T 3325 wooden furniture durability	Use for strength, stability, and durability acceptance of the wooden desk structure and storage-like support panels.
GB 18580 formaldehyde control	Applicable standards and test results require confirmation
GB/T 10357.5 surface coating test	Use for desktop resistance to abrasion, impact, dry heat, and common office liquids.
GB/T 28204 office desk adjustment	Refer to desk height, leg-room geometry, stability, and functional inspection requirements.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensions and material acceptance: Apply to wooden office furniture dimensional tolerances, material labeling, and assembly quality at incoming inspection.;
2. GB/T 3325 wooden furniture durability: Use for strength, stability, and durability acceptance of the wooden desk structure and storage-like support panels.;
3. GB 18580 formaldehyde control: Applicable standards and test results require confirmation;
4. GB/T 10357.5 surface coating test: Use for desktop resistance to abrasion, impact, dry heat, and common office liquids.;
5. GB/T 28204 office desk adjustment: Refer to desk height, leg-room geometry, stability, and functional inspection requirements.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDK-W2400-PANEL-GREY-WALNUT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDK-W2400-PANEL-GREY-WALNUT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDK-W2400-PANEL-GREY-WALNUTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

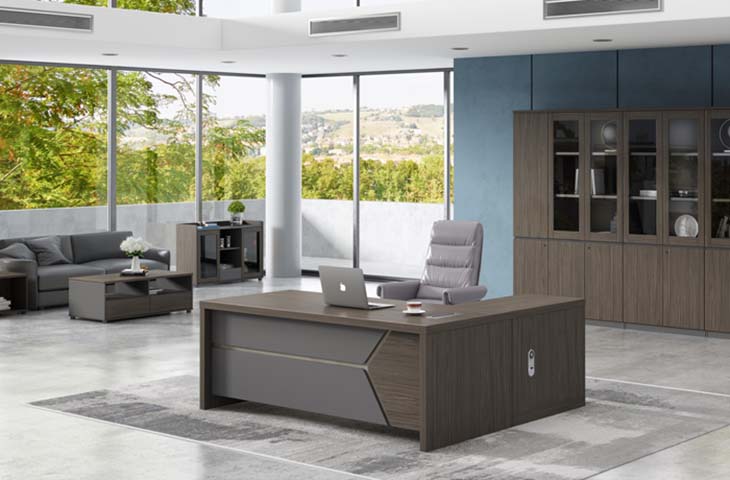

The Panel-Sided Executive Office Desk with Storage Panels presents a structured modern executive form with a broad rectangular work surface, enclosed panel-end supports, and a full-width angular modesty panel. Walnut-look wood grain defines the top and side support panels, while grey matte front fascia and modesty panels create a coordinated two-tone appearance. Diagonal decorative joint lines add subtle visual detail, and a recessed plinth base gives the desk a grounded, tailored profile. The central knee bay keeps the main seating position open, while the side cable grommet discreetly serves the work area. Its work surface uses a 25 mm E1-grade wood-composite substrate with a walnut-look melamine face and 2 mm PVC edge banding. The finished top has a 50 mm molded or built-up profile with an impact-resistant edge. Front fascia and modesty panels are 18 mm wood-composite panels finished in grey matte melamine, and the side supports are 50 mm wood-grain laminate panel ends. Construction relies on steel connector bolts, cam locks, corner brackets, enclosed panel supports, metal hardware, and adjustable nylon leveling feet. The 80 mm main support section has a 2 mm metal wall, and the silver-grey cable cover is supplied in plastic or zinc alloy with a brushed finish and black sealing insert. The fixed desk height is 760 mm, with 680 mm of knee clearance height and 900 mm of width at the main seat. It supports laptop, keyboard, document, and monitor use. The desktop is rated for a 100 kg distributed load, the central knee-bay static load is 60 kg, and each side support panel is rated for a 30 kg lateral stability load. One 80 mm grommet routes up to six power or data cables into a cable tray with 120 mm depth. The full modesty panel conceals the user’s leg area and links the two side supports for added structural integrity. Matching seating is recommended for users up to 150 kg. This desk is suited to private manager offices, director suites, and high-end reception-adjacent workspaces where a large 2400 mm desk, privacy panel, and side cable access support focused work and nearby visitor seating. It can be coordinated with storage panels for a unified office layout. Procurement planning should reflect the unbranded EDK-W2400-PANEL-GREY-WALNUT model, knockdown panel assembly, and 145 kg net weight; two operators are recommended for positioning. Reference assembly time is 40 minutes per set. Shipping information lists one set across two cartons with 0.58 m3 total volume, while alternate packaging reference data lists four cartons, 180 kg gross weight, and 1 m3 packaging volume, with the main top carton at 2500 by 1050 by 350 mm and the return or pedestal packed separately. Panel fasteners should be checked at 12-month intervals.

Panel-Sided Executive Office Desk with Storage Panels Specifications
