PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2000 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Main desktop distributed load	100 kg
Credenza top distributed load	60 kg
Drawer load per drawer	25 kg
Cupboard shelf load	30 kg per shelf
Seating capacity	1 person
Panel substrate thickness	18 mm
Worktop substrate thickness	45 mm
Suggested static stability verification	200 N horizontal force
Drawer slide durability target	50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	Dark matte engineered-wood slab with edge banding and rounded perimeter
Cabinet body	Taupe wood-based panels with smooth painted or laminate surface
Support structure	Floor-standing panel leg and credenza carcass share a rigid box-frame construction
Drawer hardware	Metal side-mounted or concealed slides with recessed horizontal pulls
CPU bay	Black framed vertical equipment compartment with ventilation-compatible front opening
Service and lighting parts	White socket plates, cable routing area, and warm-white LED strip under the rear work surface

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main desk supports forward computer work while the right credenza provides a side meeting, printing, or storage surface
Integrated storage	Right return combines two cupboard doors and two drawers for files, supplies, and personal items
CPU accommodation	Vertical open-front bay beside the knee space holds a tower computer and separates it from storage
Power and cable management	Rear service zone includes three visible socket plates and cable-passage space for laptop, lamp, and computer wiring

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2450 x 1050 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a manager or director office where computer work, signing documents, and side storage occur in one workstation
Private management or consultation room	Supports one user plus side placement for printer, reference books, or visitor-facing materials

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk dimensions	Use for work-surface height, clearance, and safety dimensional requirements
EN 527-2 mechanical safety	Use for desk strength, durability, and stability acceptance testing
EN 15372 office furniture strength	Apply durability and stability requirements for non-domestic storage and desk assemblies
EN 14073-2 storage safety	Use for strength and durability of office storage cabinets and drawer units
EN 14074 movable storage hardware	Use for locks, drawer slides, and interlock component evaluation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use load, stability, and fatigue tests for the desktop, panel supports, and return
ANSI/BIFMA X5.9 storage units	Use strength, drawer-cycle, and stability tests for the cabinet and drawers
BIFMA E1 furniture sustainability	Request material, energy, and recyclability information if sustainable procurement is required

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural guidance	Apply to wooden furniture dimensions, workmanship, and stability inspection
GB/T 3325 metal hardware guidance	Use for inspection of metal drawer slides, pulls, and associated furniture hardware
GB/T 3326 furniture dimensional verification	Use for consistent desk, clearance, and storage dimension measurement
GB 18580 formaldehyde control	Request board emission documentation for the engineered-wood worktop and cabinet panels
GB/T 10357 desk mechanical testing	Applicable standards and test results require confirmation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural guidance: Apply to wooden furniture dimensions, workmanship, and stability inspection;
2. GB/T 3325 metal hardware guidance: Use for inspection of metal drawer slides, pulls, and associated furniture hardware;
3. GB/T 3326 furniture dimensional verification: Use for consistent desk, clearance, and storage dimension measurement;
4. GB 18580 formaldehyde control: Request board emission documentation for the engineered-wood worktop and cabinet panels;
5. GB/T 10357 desk mechanical testing: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-CR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-CR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-CR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

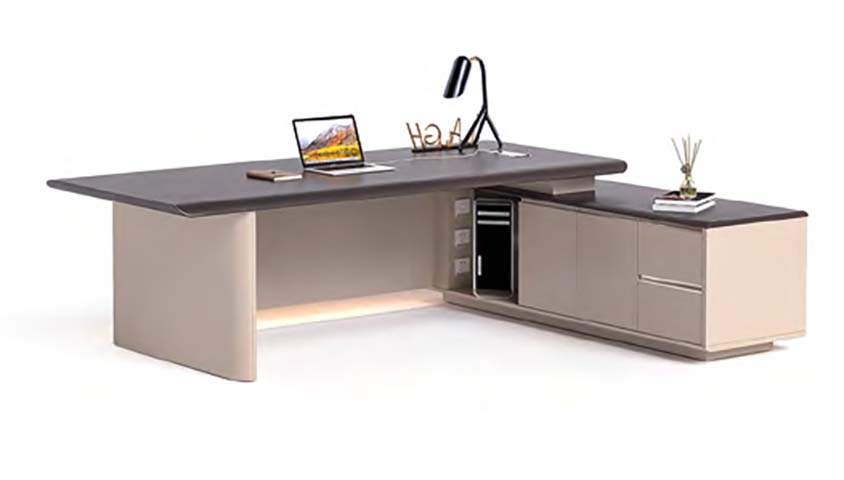

The ED-L2400-CR-01 is an unbranded L-shaped executive desk designed for a single user who needs a substantial computer workspace and integrated storage in one coordinated station. Its layout pairs a forward-facing main desk with a right-side storage credenza, creating an enclosed corner configuration that keeps daily work, reference materials, printing, and meeting-related items within reach. The visual character is warm and professional: taupe engineered-wood casework is combined with dark matte work surfaces, solid panel legs, recessed horizontal metal pulls, and a warm-white LED strip set beneath the rear work surface. The rounded desktop perimeter and edge banding give the worktop a finished, controlled appearance suited to private offices and management rooms. Construction is based on wood-based panels with an 18 mm substrate and a rigid box-frame structure shared by the floor-standing panel leg and credenza carcass. The main support section uses an 80 mm panel profile with a 2 mm metal wall, while the finished work surface is 50 mm thick. The dark engineered-wood slab provides the primary writing and computer area, and the taupe cabinet body uses a smooth painted or laminate finish. Drawers operate on metal side-mounted or concealed slides. The desk has a net weight of 145 kg, with rated distributed loads of 100 kg on the main desktop, 60 kg on the credenza top, 25 kg per drawer, and 30 kg per cupboard shelf. Functionally, the right return combines two cupboard doors and two drawers for files, supplies, and personal belongings. A separate black-framed vertical CPU bay beside the knee space accommodates a tower computer through an open, ventilation-compatible front, keeping equipment distinct from storage. The main seat position offers 680 mm of knee clearance height and 900 mm of width. The rear service zone includes three visible white socket plates, an 80 mm cable opening, a cable routing area with 120 mm tray depth, and integrated LED lighting, supporting tidy connection of a computer, laptop, and lamp. This desk is appropriate for executive, manager, or director offices, as well as private consultation or management rooms where one person works and also needs a side surface for a printer, reference books, documents, or visitor-facing materials. Procurement planning should account for the room footprint required by the L-shaped return, the two-sided workload, delivery as a multi-carton packaged set, and on-site assembly. Buyers should also confirm access routes, placement of power outlets, clearance for the open-front CPU compartment, and whether the storage configuration matches the intended filing and equipment layout.

L-Shaped Executive Desk with Integrated Right Storage Credenza and CPU Bay Specifications
