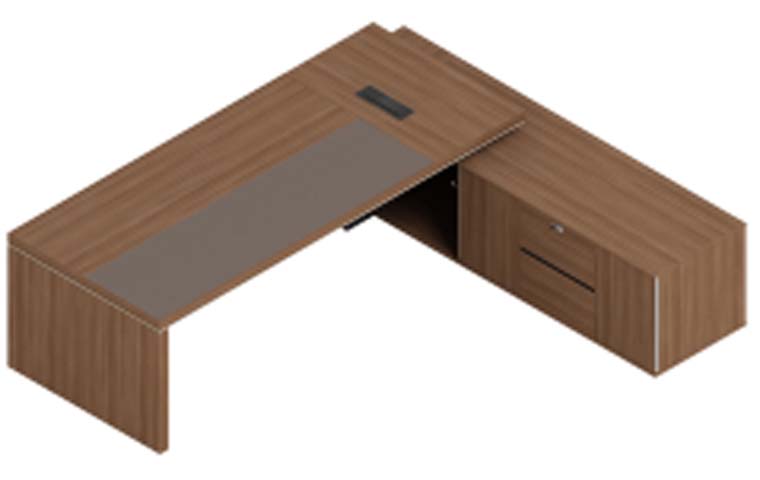

Walnut-Finish L-Shaped Executive Desk with Integrated Side Storage Cabinet (model EXEC-L-2400-WL-CAB) is listed under CEO Executive Desk. Dimensions: 2400 × 1800 × 750 mm. Materials: 25 mm E1-grade engineered wood board with walnut woodgrain melamine laminate and 2 mm edge banding. Load capacity: 80 kg. Product Features: walnut,woodgrain,finish,L-shaped,executive,configuration,integrated,storage,pedestal,panel-constructed,modern,style. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | EXEC-L-2400-WL-CAB |
| Cabinet door panel width | 380 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed desktop static load | 80 kg |
| Drawer rated load | 25 kg per drawer | Cabinet shelf static load | 30 kg per shelf |
| Recommended user weight at workstation | 120 kg | Product net weight | 115 kg |
| Seating capacity | 1 person | Worksurface distributed load test recommendation | 1.5 kPa |
| Drawer slide cycle life | 50000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Desktop substrate and finish | 25 mm E1-grade engineered wood board with walnut woodgrain melamine laminate and 2 mm edge banding |
| Side cabinet and panel construction | 18 mm laminated engineered wood panels with vertical walnut grain on exposed faces | Writing surface | Dark gray leatherette or vinyl desk pad bonded over a rigid backing |
| Cable access cover | Black rectangular plastic grommet with recessed frame | Drawer hardware | Epoxy-coated steel or zinc-plated full-extension side-mount slides with integrated lock cylinder |
| Drawer pull and trim | Horizontal recessed aluminum-look pull groove with narrow light-toned edge trim on cabinet end | L-shaped work configuration | Main desk and perpendicular storage return create a 2400 mm primary work zone plus an adjacent 1800 mm side surface for documents or meetings |
| Integrated storage | Side return combines a lockable drawer section with enclosed cabinet storage for files and personal office materials | Cable management access | Rear rectangular desktop grommet routes monitor and power cables into the under-desk area |
| Privacy and leg shielding | Left vertical modesty panel forms a solid side support and shields the seated leg area from side view | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive office application | Suitable for private manager and director offices where a 2400 mm work surface and adjacent files support computer work, document review, and short side discussions. | Administrative workstation application | Suitable for senior administrative roles requiring locked drawer storage, cable routing, and a separate return surface for printer or paperwork. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Cabinet door panel width | 380 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 80 kg | |
|---|---|---|
| Drawer rated load | 25 kg per drawer | |
| Cabinet shelf static load | 30 kg per shelf | |
| Recommended user weight at workstation | 120 kg | |
| Product net weight | 115 kg | |
| Seating capacity | 1 person | |
| Worksurface distributed load test recommendation | 1.5 kPa | |
| Drawer slide cycle life | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25 mm E1-grade engineered wood board with walnut woodgrain melamine laminate and 2 mm edge banding | |
|---|---|---|
| Side cabinet and panel construction | 18 mm laminated engineered wood panels with vertical walnut grain on exposed faces | |
| Writing surface | Dark gray leatherette or vinyl desk pad bonded over a rigid backing | |
| Cable access cover | Black rectangular plastic grommet with recessed frame | |
| Drawer hardware | Epoxy-coated steel or zinc-plated full-extension side-mount slides with integrated lock cylinder | |
| Drawer pull and trim | Horizontal recessed aluminum-look pull groove with narrow light-toned edge trim on cabinet end |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work configuration | Main desk and perpendicular storage return create a 2400 mm primary work zone plus an adjacent 1800 mm side surface for documents or meetings | |
|---|---|---|
| Integrated storage | Side return combines a lockable drawer section with enclosed cabinet storage for files and personal office materials | |
| Cable management access | Rear rectangular desktop grommet routes monitor and power cables into the under-desk area | |
| Privacy and leg shielding | Left vertical modesty panel forms a solid side support and shields the seated leg area from side view |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office application | Suitable for private manager and director offices where a 2400 mm work surface and adjacent files support computer work, document review, and short side discussions. | |
|---|---|---|
| Administrative workstation application | Suitable for senior administrative roles requiring locked drawer storage, cable routing, and a separate return surface for printer or paperwork. |
EU Market Access Requirements* EN Standards
| EN 527-1 applicability | EN 527applies to office desk safety, strength, and dimensional requirements for commercial worktables. | |
|---|---|---|
| EN 527-2 applicability | EN 527provides mechanical safety and test methods for office work surfaces and storage-integrated desks. | |
| EN 15372 applicability | EN 15372 covers durability, strength, and stability requirements for non-domestic storage furniture. | |
| EN 717-1 applicability | EN 717formaldehyde release testing is appropriate for laminated engineered wood panels. | |
| EN 16121 applicability | EN 16121 applies to storage furniture strength, durability, and stability in non-domestic office use. |
Standards applicable to China-market projects
| GB/T 3324 applicability | GB/T 3324 General Technical Requirements for Wooden Furniture applies to dimensional tolerances, materials, and workmanship of laminated case goods. | |
|---|---|---|
| GB/T 3325 applicability | GB/T 3325 Metal Furniture General Technical Requirements is relevant where metal drawer slides and structural hardware are supplied. | |
| GB 18580 applicability | GB 18580 applies to formaldehyde emission limits for engineered wood panels used in the desk and cabinet. | |
| GB/T 10357.5 applicability | GB/T 10357.5 provides table strength and durability test methods suitable for desktop load acceptance. | |
| GB/T 10357.7 applicability | GB/T 10357.7 covers table stability testing relevant to the freestanding L-shaped desk. |
This product must meet the following technical requirements: 1. GB/T 3324 applicability: GB/T 3324 General Technical Requirements for Wooden Furniture applies to dimensional tolerances, materials, and workmanship of laminated case goods.; 2. GB/T 3325 applicability: GB/T 3325 Metal Furniture General Technical Requirements is relevant where metal drawer slides and structural hardware are supplied.; 3. GB 18580 applicability: GB 18580 applies to formaldehyde emission limits for engineered wood panels used in the desk and cabinet.; 4. GB/T 10357.5 applicability: GB/T 10357.5 provides table strength and durability test methods suitable for desktop load acceptance.; 5. GB/T 10357.7 applicability: GB/T 10357.7 covers table stability testing relevant to the freestanding L-shaped desk.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
