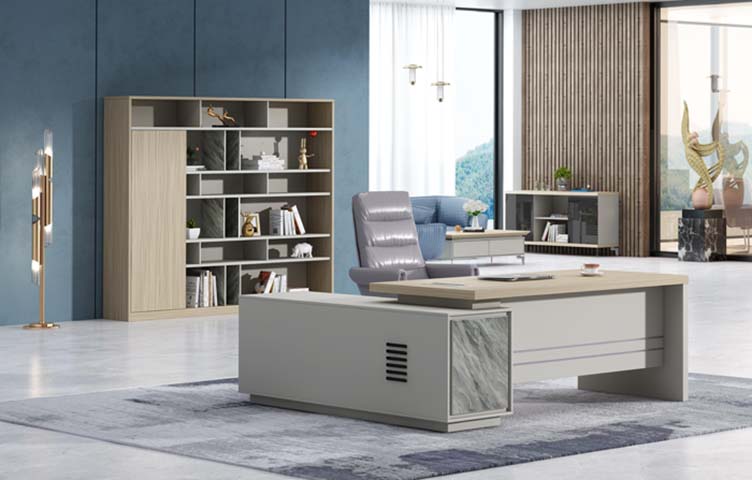

Light Oak and Warm Grey Executive Office Desk with Left Storage Credenza (model ED-LOAK-2400-LC) is listed under CEO Executive Desk. Dimensions: 2400 × 1800 × 760 mm. Materials: Engineered wood substrate with light oak woodgrain laminate or melamine face and 50 mm slab edge. Load capacity: 80 kg. Product Features: modern,executive,style,L-shaped,workstation,panel,construction,integrated,storage,credenza. This page consolidates 5 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-LOAK-2400-LC |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Distributed worktop static load | 80 kg | Pedestal drawer load per drawer | 25 kg |
| Lateral file drawer load | 35 kg | Suggested user weight at workstation | 120 kg |
| Product net weight | 145 kg | Recommended daily users | 2 users |
| Setup time | 90 minutes | Surface impact and load test target | 10 kg drop from 150 mm |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Worktop | Engineered wood substrate with light oak woodgrain laminate or melamine face and 50 mm slab edge | Carcass panels | Warm grey engineered wood panels with smooth matte painted or melamine finish |
| Decorative end panel | Grey stone-look laminate or veneered engineered panel set into the credenza end | Edge banding | Matching PVC or ABS edge banding on exposed worktop and cabinet edges |
| Drawer hardware | Side-mounted ball-bearing drawer slides with steel rails and plastic dampers | Base and support structure | Panel-type wood supports with recessed plinth and internal metal connecting hardware |
| Storage layout | Fixed left credenza provides three box drawers and one lateral file compartment for documents and office materials | Seated work configuration | Central knee opening allows an executive chair to face the room while the storage return occupies the user's left side |
| Cable management | Rear modesty panel and credenza body can conceal power and data cables; a 60 mm grommet is recommended on the top if powered devices are specified | Installation | Floor-standing knockdown panel assembly using cam locks, dowels, screws and connector brackets, with wall anchoring recommended for seismic or active offices |
| Carton dimensions | 2450 x 950 x 180 mm for the largest flat carton plus three hardware and panel cartons | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop static load | 80 kg | |
|---|---|---|
| Pedestal drawer load per drawer | 25 kg | |
| Lateral file drawer load | 35 kg | |
| Suggested user weight at workstation | 120 kg | |
| Product net weight | 145 kg | |
| Recommended daily users | 2 users | |
| Setup time | 90 minutes | |
| Surface impact and load test target | 10 kg drop from 150 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | Engineered wood substrate with light oak woodgrain laminate or melamine face and 50 mm slab edge | |
|---|---|---|
| Carcass panels | Warm grey engineered wood panels with smooth matte painted or melamine finish | |
| Decorative end panel | Grey stone-look laminate or veneered engineered panel set into the credenza end | |
| Edge banding | Matching PVC or ABS edge banding on exposed worktop and cabinet edges | |
| Drawer hardware | Side-mounted ball-bearing drawer slides with steel rails and plastic dampers | |
| Base and support structure | Panel-type wood supports with recessed plinth and internal metal connecting hardware |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Fixed left credenza provides three box drawers and one lateral file compartment for documents and office materials | |
|---|---|---|
| Seated work configuration | Central knee opening allows an executive chair to face the room while the storage return occupies the user's left side | |
| Cable management | Rear modesty panel and credenza body can conceal power and data cables; a 60 mm grommet is recommended on the top if powered devices are specified | |
| Installation | Floor-standing knockdown panel assembly using cam locks, dowels, screws and connector brackets, with wall anchoring recommended for seismic or active offices |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 2450 x 950 x 180 mm for the largest flat carton plus three hardware and panel cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
