PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2000 × 760 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	165 kg
Distributed desktop load	80 kg
Single cabinet drawer load	25 kg
Fixed shelf load	30 kg
Recommended user weight at workstation	120 kg
Desktop surface impact resistance	45 N
Edge wear rating	50000 abrasion cycles
Recommended load duration	8 hours daily
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25 mm engineered-wood core with dark wood veneer or melamine face and 50 mm built-up edge
Cabinet body panels	18 mm matte dark-gray engineered-wood panels with sealed exposed edges
Decorative fronts	Perforated composite or metal-effect panels with diamond and speckled cutout patterns
Support legs	Polished chrome-plated metal tube, 20 mm diameter and 150 mm exposed height
Accent trim	Brushed champagne-metal or metallic ABS trim around sculpted side cutouts
Hardware and rails	Steel drawer slides, hinges, and desktop connector plates with zinc or black finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Primary 2100 mm work side and 1500 mm return create separate computer and document zones
Cable management	550 mm recessed desktop slot routes monitor and laptop cables into the rear cabinet zone
Integrated storage	Left and right enclosed pedestals provide drawer or door storage beneath the work surface
Floor protection and leveling	Six elevated metal legs with concealed adjustable glides compensate for floor variation up to 10 mm

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits private manager and director offices where computer work, document review, and visitor discussion occur at one desk
High-end reception or management workspace	Fits premium corporate interiors requiring a dark sculpted reception-manager workstation with concealed files

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Applies to safety, strength, and dimensional requirements for office work tables and desks
EN 527-2:2002	Applicable standards and test results require confirmation
EN 717-1:2004	Applies to formaldehyde release determination by chamber method for wood-based panels
EN 15185:2011	Applies to abrasion resistance of furniture surfaces under rotary rubbing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Applies to desk strength, load, fatigue, drop, and stability testing for office tables
BIFMA E3-2023	Applies to furniture sustainability attributes, material transparency, and supply-chain criteria

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applies to dimensional tolerances, materials, finish, stability, and inspection of wooden office furniture
GB/T 3325-2017	Applies to metal furniture structural requirements and coating quality for the metal legs and trim
GB 18580-2017	Applies to formaldehyde emission limits for engineered-wood decking and board components
GB/T 10357.1-2089	Applies to table mechanical testing including strength and stability test methods

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applies to dimensional tolerances, materials, finish, stability, and inspection of wooden office furniture;
2. GB/T 3325-2017: Applies to metal furniture structural requirements and coating quality for the metal legs and trim;
3. GB 18580-2017: Applies to formaldehyde emission limits for engineered-wood decking and board components;
4. GB/T 10357.1-2089: Applies to table mechanical testing including strength and stability test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-DB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-DB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-DB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

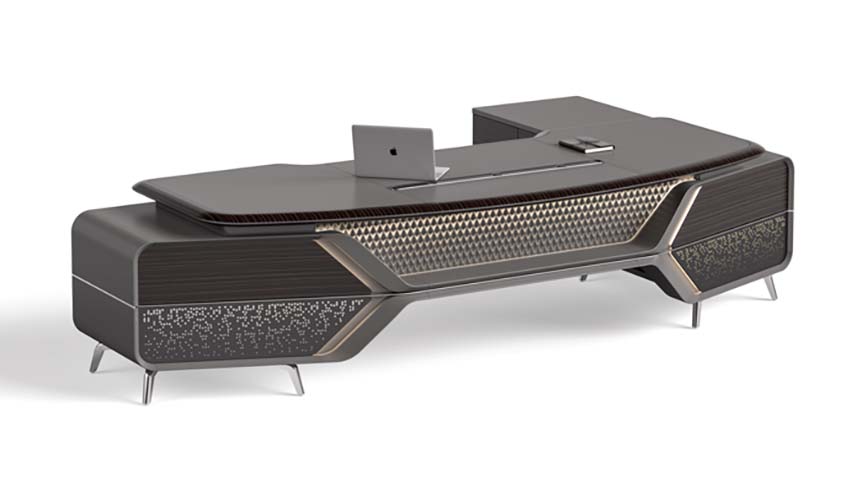

The Dark Brown L-Shaped Executive Desk with Integrated Storage Credenza, model ED-L2400-DB-01, offers a structured executive presence for premium work environments. Its unbranded design combines a dark wood-veneer or melamine desktop with a matte lacquered storage body, polished chrome-plated metal legs, and refined metallic accent trim. The L-shaped layout pairs a 2100 mm primary work side with a 1500 mm return, creating distinct zones for computer work, documents, and discussion while retaining a coordinated, contemporary silhouette. Visually, the desk balances substantial work surfaces with a sculpted storage base. Decorative perforated composite or metal-effect fronts use diamond and speckled cutout patterns, while brushed champagne-metal or metallic ABS trim outlines the side cutouts. The elevated legs keep the composition light and support a clean executive look. The desktop features a 25 mm engineered-wood core with a dark wood-veneer or melamine face and a 50 mm built-up edge. Cabinet body panels are 18 mm matte dark-gray engineered wood with sealed exposed edges, and the support system includes polished chrome-plated metal tube with zinc- or black-finished steel hardware, slides, hinges, and connector plates. Functionality is organized around integrated storage and cable control. Enclosed pedestals on the left and right provide drawer or door storage beneath the work surface for files and office materials. A 550 mm recessed desktop slot accepts monitor and laptop cables and directs them into the rear cabinet area through an 80 mm cable opening, with a cable tray depth of 120 mm. Six elevated metal legs include concealed adjustable glides that compensate for floor variation up to 10 mm. The effective knee clearance is 680 mm high and 900 mm wide at the main seat. The desk is suited to private manager and director offices where computing, paperwork, and short visitor discussions take place in one location. It also fits high-end reception or management workspaces requiring a dark, sculpted workstation with concealed file storage. Rated capacities include an 80 kg distributed desktop load, 25 kg per cabinet drawer, 30 kg per fixed shelf, and a 120 kg recommended workstation user weight. Procurement planning should account for a 165 kg net product weight, 40-minute reference assembly time, separate carton packing, and a packaged gross weight of 180 kg per set. The delivery information includes two cartons and four-carton packing references, so shipment configuration should be confirmed at order placement.

Dark Brown L-Shaped Executive Desk with Integrated Storage Credenza Specifications
