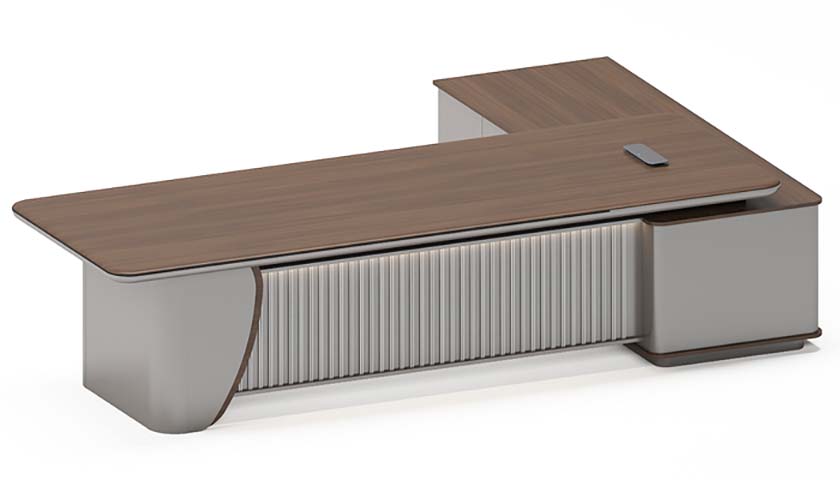

Contemporary L-Shaped Fluted Front Executive Office Desk with Return (model EXD-L-FLWG-2400) is listed under CEO Executive Desk, with overall dimensions of 2400 × 1850 × 750 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: Contemporary,style,L-shaped,configuration,enclosed,pedestal,storage,rounded,edge,profile,cable,grommet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1850 x 750 mm | |
|---|---|---|
| Main worktop width | 2200 mm | |
| Main worktop depth | 1000 mm | |
| Side return length | 1800 mm | |
| Side return depth | 600 mm | |
| Worktop thickness | 50 mm | |
| Under-desk knee clearance height | 630 mm | |
| PVC edge band thickness | 0.08 mm (3 mil) | |
| Cable grommet diameter | 80 mm | |
| Drawer internal usable height | 150 mm | |
| File drawer internal height | 280 mm | |
| Pedestal base plinth height | 20 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating per drawer | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Total product net weight | 177 kg | |
| Recommended user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E1-grade particle board | |
|---|---|---|
| Worktop finish | Walnut wood-grain thermoformed laminate | |
| Pedestal cabinet finish | Matte grey lacquer | |
| Front modesty panel | Vertical fluted engineered wood slats | |
| Edge banding | 3 mil PVC edge trim | |
| Hardware components | Zinc-plated steel hardware |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Surface grommet + under-desk cable channel | |
|---|---|---|
| Storage configuration | 3 utility drawers + 1 hanging file drawer + closed cabinet | |
| Drawer operation | Soft-close full-extension ball-bearing slides | |
| Return orientation | Fixed right-side return configuration |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for senior management and executive workspaces with premium aesthetic requirements | |
|---|---|---|
| Corporate director suite | Paired with matching executive seating and storage for high-end office environments |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance testing | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and mechanical safety, applicable to clearance and stability checks | |
| EN 13722:2004 | Furniture strength and durability of storage components, applicable to drawer and cabinet testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance acceptance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer, cabinet and shelf performance validation |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to quality inspection of desk structure | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to substrate compliance verification | |
| GB/T 4897.3-2003 | Particle board specifications for furniture use, applicable to worktop substrate acceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to quality inspection of desk structure; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to substrate compliance verification; 3. GB/T 4897.3-2003: Particle board specifications for furniture use, applicable to worktop substrate acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
