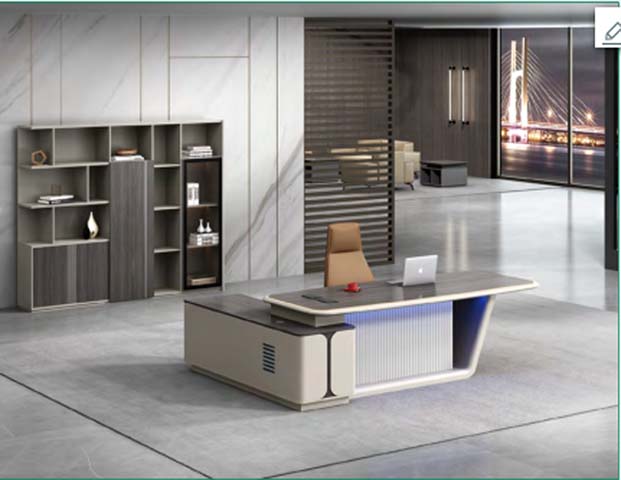

L-Shaped Executive Office Desk with Fixed Left Storage Return and Blue LED Accent Lighting (model EXD-L2800-FL-LBL) is listed under CEO Executive Desk, with overall dimensions of 2800 × 2200 × 760 mm and main material of Particle‑board (PB). Load capacity: 159 kg. Certifications: contemporary,luxury,style,L-shaped,fixed,return,integrated,storage,pedestal,fluted,front,panel,built-in,lighting. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint (main desk + left return) | 2800 x 2200 x 760 mm | |
|---|---|---|
| Main desktop work surface depth | 900 mm | |
| Desktop panel thickness | 25 mm | |
| ABS edge band thickness | 2 mm | |
| Central seated knee clearance width | 1800 mm | |
| Under-desk knee clearance height | 650 mm | |
| Left return storage pedestal width | 800 mm | |
| Left return storage pedestal depth | 600 mm | |
| Cable grommet diameter | 80 mm | |
| Front modesty panel height | 450 mm | |
| Fluted front panel slat width | 30 mm | |
| Storage pedestal ventilation slot size | 120 x 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 159 kg | |
|---|---|---|
| Desktop surface abrasion resistance rating | 2000 cycles | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Cabinet door hinge open/close cycle rating | 80000 cycles | |
| Net product weight (reference) | 85 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panel | E0-grade melamine laminated particleboard | |
|---|---|---|
| Edge trim | 2mm thick ABS impact-resistant edge banding | |
| Support frame | 1.5mm thick powder-coated steel inner frame | |
| Front decorative panel | Fluted melamine composite panel with matte finish | |
| Accent lighting | Low-voltage blue LED strip light assembly | |
| Storage hardware | Zinc-plated steel drawer slides and locking hinges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left fixed return with vented CPU compartment, 3 locking drawers, and open shelf | |
|---|---|---|
| Cable management | Desktop cable grommets paired with under-desk cable tray | |
| Accent lighting | Integrated blue LED strip behind front fluted panel | |
| Locking storage | Central keyed lock secures all drawers and cabinet door |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suitable for president, director, or senior manager private workspaces, with generous surface for monitors and documents | |
|---|---|---|
| Corporate headquarters setting | Matches contemporary luxury office design schemes with coordinated storage and accent lighting |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural load verification | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to pedestal drawer performance | |
| EN 312:2010 | Particleboard specifications for furniture use, applicable to panel materialAcceptance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and durability standard, applicable to structural and load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage units performance standard, applicable to drawer and shelf load testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E0-grade panel verification | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable to substrate materialAcceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel structural performance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E0-grade panel verification; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to substrate materialAcceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
