PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2200 x 1800 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	135 kg
Distributed desktop load	80 kg
Return top load	50 kg
Drawer load per drawer	25 kg
Recommended user capacity	1 person
Drawer slide durability	50,000 cycles
Panel screw pull-out strength	800 N
Edge impact resistance	20 N·m
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desk top substrate	25 mm E1-class particleboard or MDF core with walnut-look melamine surface and 50 mm built edge
Modesty panel	Walnut-grain melamine-faced wood-based panel with vertical grain and matching edge banding
Return cabinet carcass	18 mm dark grey melamine-faced wood-based panel with square edge banding
Drawer fronts	Walnut-look melamine-faced panel with recessed horizontal pull slots
Drawer hardware	Side-mounted ball-bearing steel slides with integrated drawer lock cylinder
Cable management fitting	Rectangular black plastic or brushed cable grommet set into the rear work surface

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work configuration	Main desk supports front-facing computer work while the right return provides lateral writing, meeting or printer space.
Integrated storage pedestal	Right return contains two visible drawers for documents and personal office supplies, with lockable front access.
Cable routing	Rear rectangular grommet directs monitor and power cables from the desktop into the under-desk void.
Privacy and leg screening	Left full-depth modesty panel shields the seated user and reduces cable visibility from the front.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packing volume	0.72 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Provides a primary computer zone, side meeting surface and concealed storage for managers and directors.
Supervisor and administrative workroom	Supports paperwork, printer placement and secure document storage in one linear footprint.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk suitability	EN 527should be specified for safety, dimensions and structural requirements of an office work desk.
EN 527-2 mechanical safety suitability	EN 527should be specified for mechanical strength and durability acceptance tests.
EN 15372 load and durability suitability	EN 15372 is suitable for non-domestic storage and desk furniture durability requirements.
EN 717-1 panel emission suitability	EN 717 may be specified for formaldehyde release testing of wood-based panels.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural suitability	GB/T 3324 is appropriate for dimensional tolerance, appearance and structural requirements of wooden office furniture.
GB/T 3325 desk acceptance suitability	GB/T 3325 should be specified for strength, stability and durability testing of metal-and-wood office desks.
GB 18580 emission testing suitability	GB 18580 should be specified for formaldehyde emission limits of the wood-based panels.
GB/T 10357.5 mechanical testing suitability	GB/T 10357.5 is suitable for desk strength and load performance verification before acceptance.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural suitability: GB/T 3324 is appropriate for dimensional tolerance, appearance and structural requirements of wooden office furniture.;
2. GB/T 3325 desk acceptance suitability: GB/T 3325 should be specified for strength, stability and durability testing of metal-and-wood office desks.;
3. GB 18580 emission testing suitability: GB 18580 should be specified for formaldehyde emission limits of the wood-based panels.;
4. GB/T 10357.5 mechanical testing suitability: GB/T 10357.5 is suitable for desk strength and load performance verification before acceptance.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2200-RC-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2200-RC-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2200-RC-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

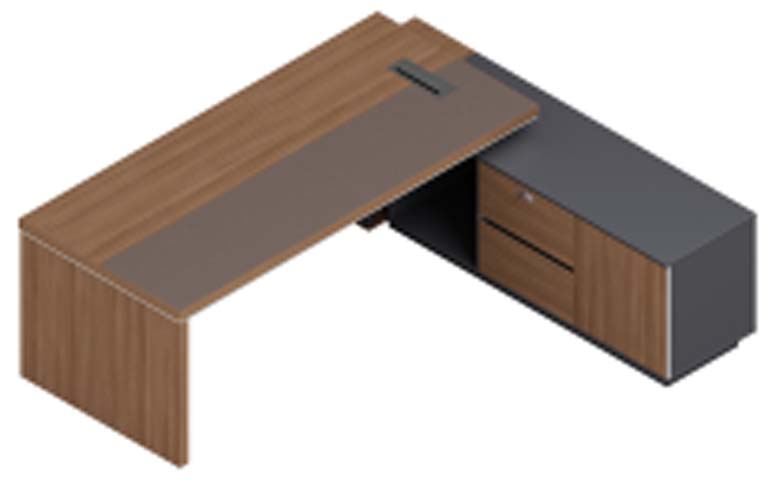

The L-Shaped Executive Desk with Right Return Cabinet and Cable Port, model ED-L2200-RC-WG, presents a formal two-tone workspace with a walnut-look work surface and dark grey matte storage and modesty panels. Its L-shaped layout places the main desk in a front-facing computer orientation, while the right return extends laterally to support writing, informal discussion, or printer placement. The drawer fronts continue the walnut finish and use recessed horizontal pull slots, creating a clean executive appearance without protruding handles. A full-depth walnut-grain modesty panel on the left screens the seated user and helps conceal cables from the front. The desk top and panels use wood-based substrates with walnut-look melamine surfaces and matching edge banding. The main top features a 50 mm finished built edge over a 25 mm E1-class particleboard or MDF core. The return cabinet carcass is built from 18 mm dark grey melamine-faced wood-based panel with square edge banding. Drawers operate on side-mounted ball-bearing steel slides and include an integrated lock cylinder for secure storage. The support section uses metal construction with a 2 mm wall, and the rear work surface incorporates a black plastic or brushed cable grommet set linked to cable routing beneath the desk. Functionally, the desk combines a primary computer zone, a side work surface, and an integrated two-drawer pedestal in the right return. The drawers provide lockable space for documents and personal office supplies, while the rear grommet directs monitor and power cables from the desktop into the under-desk area. The configuration is intended for one user and balances open work area with concealed storage and leg privacy. It is suited to private executive offices for managers and directors, as well as supervisor rooms and administrative workrooms where paperwork, printer placement, and secure document storage need to share one organized footprint. Buyers should plan for a substantial workstation: the net weight is 135 kg, the overall footprint is 2200 x 1800 x 750 mm, and the main seat offers 680 mm high and 900 mm wide effective knee clearance. Rated distributed load is 80 kg on the main desktop, 50 kg on the return top, and 25 kg per drawer. Delivery and installation planning should account for multi-carton packaging, a packaged gross weight of 180 kg per set, and a reference assembly time of 40 minutes per set.

L-Shaped Executive Desk with Right Return Cabinet and Cable Port Specifications
