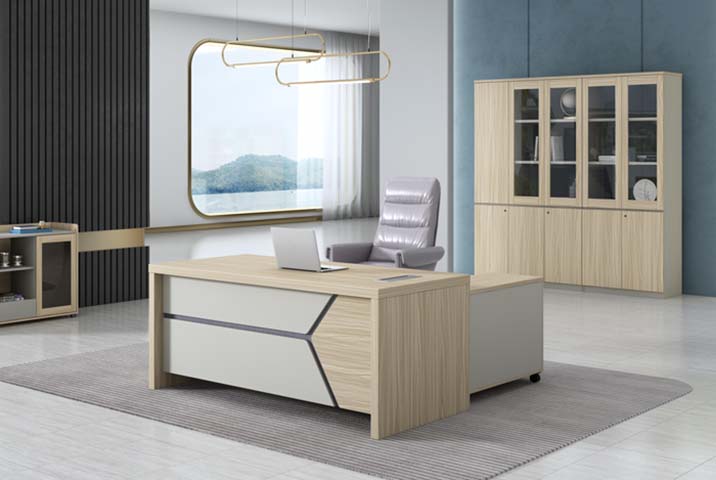

L-Shaped Executive Desk with Mobile Side Pedestal and Cable Port (model ED-L2200-MP) is listed under CEO Executive Desk. Dimensions: 2200 × 1800 × 750 mm. Materials: 25 mm engineered-wood board with light oak wood-grain decorative surface and 50 mm built-up edge appearance. Load capacity: 80 kg. Product Features: modern,executive,style,L-shaped,workstation,panel,construction,mobile,pedestal,cable,management. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-L2200-MP |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Net weight | 145 kg | Distributed desktop static load | 80 kg |
| Mobile pedestal top load | 40 kg | Internal drawer or shelf load | 25 kg per storage level |
| Caster load capacity | 40 kg per caster | User capacity | 1 primary user plus 2 visitor seats |
| Edge impact resistance target | 45 N impact, 10 cycles | Surface abrasion acceptance target | 350 cycles, 2 N force |
| Hardware cycle target | 20,000 drawer operations | Warranty target | 5 years structural, 2 years hardware |
| Desktop substrate | 25 mm engineered-wood board with light oak wood-grain decorative surface and 50 mm built-up edge appearance | Vertical cabinet panels | 18 mm light oak-grain and light grey engineered-wood panels with matching edgebanding |
| Edge protection | 2 mm PVC or ABS edgebanding on exposed desktop and cabinet edges | Front accent trim | Black PVC, aluminum or painted composite angular reveal strip |
| Support structure | Panel-leg construction with concealed cam-lock, dowel and metal bracket joints | Mobile pedestal hardware | 50 mm black nylon or polyurethane swivel casters with steel stems; two units should include brakes |
| L-shaped work layout | Front 2200 mm work zone and 1200 mm side return provide separate computer, writing and printer zones without sharing the same depth footprint. | Cable management | Rear-right 160 x 80 mm desk grommet routes laptop and monitor cables to the under-desk area; add a removable cable tray during procurement. |
| Privacy modesty panel | 520 mm high front panel shields the user's legs and under-desk area while retaining 680 mm knee height. | Mobile side storage | Return cabinet sits on casters and can be repositioned for cleaning, CPU placement or side-file access; two locking casters are recommended. |
| Largest carton dimensions | 2280 x 960 x 120 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Private executive office | Suits managers and directors requiring a laptop zone, side storage, visitor-facing front and concealed leg clearance. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 145 kg | |
|---|---|---|
| Distributed desktop static load | 80 kg | |
| Mobile pedestal top load | 40 kg | |
| Internal drawer or shelf load | 25 kg per storage level | |
| Caster load capacity | 40 kg per caster | |
| User capacity | 1 primary user plus 2 visitor seats | |
| Edge impact resistance target | 45 N impact, 10 cycles | |
| Surface abrasion acceptance target | 350 cycles, 2 N force | |
| Hardware cycle target | 20,000 drawer operations | |
| Warranty target | 5 years structural, 2 years hardware |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25 mm engineered-wood board with light oak wood-grain decorative surface and 50 mm built-up edge appearance | |
|---|---|---|
| Vertical cabinet panels | 18 mm light oak-grain and light grey engineered-wood panels with matching edgebanding | |
| Edge protection | 2 mm PVC or ABS edgebanding on exposed desktop and cabinet edges | |
| Front accent trim | Black PVC, aluminum or painted composite angular reveal strip | |
| Support structure | Panel-leg construction with concealed cam-lock, dowel and metal bracket joints | |
| Mobile pedestal hardware | 50 mm black nylon or polyurethane swivel casters with steel stems; two units should include brakes |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Front 2200 mm work zone and 1200 mm side return provide separate computer, writing and printer zones without sharing the same depth footprint. | |
|---|---|---|
| Cable management | Rear-right 160 x 80 mm desk grommet routes laptop and monitor cables to the under-desk area; add a removable cable tray during procurement. | |
| Privacy modesty panel | 520 mm high front panel shields the user's legs and under-desk area while retaining 680 mm knee height. | |
| Mobile side storage | Return cabinet sits on casters and can be repositioned for cleaning, CPU placement or side-file access; two locking casters are recommended. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 2280 x 960 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suits managers and directors requiring a laptop zone, side storage, visitor-facing front and concealed leg clearance. |
|---|
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks; use for safety, dimensional integrity and structural suitability of the seated workstation. | |
|---|---|---|
| EN 527-2:2002 | Mechanical safety requirements for office desks; include strength, durability and stability acceptance testing. | |
| EN 717-1:2004 | Wood-based panel formaldehyde determination by chamber method; request emission class documentation for the board supply. | |
| EN 12521:2015 | Furniture strength, durability and safety requirements for indoor tables; useful as a supplementary structural acceptance reference. |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture; use for panel dimensions, edge quality, flatness and workmanship inspection. | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements; applicable if metal brackets, caster stems or accent strips are supplied. | |
| GB/T 39600-2021 | Formaldehyde emission classification for wood-based panels; specify E1 or ENF panel documentation before bulk purchase. | |
| GB/T 10357.5-2011 | Furniture mechanical surface test for paint and decorative finishes; include abrasion and impact acceptance for the desktop. | |
| GB/T 10357.1-2013 | Table mechanical test for strength and stability; apply static load and stability checks to the desk and return. |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; use for panel dimensions, edge quality, flatness and workmanship inspection.; 2. GB/T 3325-2017: Metal furniture general technical requirements; applicable if metal brackets, caster stems or accent strips are supplied.; 3. GB/T 39600-2021: Formaldehyde emission classification for wood-based panels; specify E1 or ENF panel documentation before bulk purchase.; 4. GB/T 10357.5-2011: Furniture mechanical surface test for paint and decorative finishes; include abrasion and impact acceptance for the desktop.; 5. GB/T 10357.1-2013: Table mechanical test for strength and stability; apply static load and stability checks to the desk and return.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
