PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 1830 × 762 mm
Main work surface depth	800 mm
Side return width	1400 mm
Work surface thickness	25 mm
PVC edge band thickness	2 mm
Knee clearance height	600 mm
Knee clearance width	1200 mm
Modesty panel dimensions	1430 x 2 x 400 mm
Metal leg tube wall thickness	2 mm
Cable grommet diameter	80 mm
Open shelf interior height	350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	136 kg
Enclosed cabinet shelf static load	50 kg
Drawer slide load rating	45 kg
Drawer slide cycle rating	50000 cycles
Hinge cycle rating	80000 cycles
Surface abrasion resistance	2000 cycles
Net product weight	48 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1-grade engineered wood with matte grey high-pressure laminate
Edge trim	2mm thick matching matte PVC edge banding
Support frame	Powder-coated black steel
Outboard legs	Angled powder-coated steel with silver chrome finished tip
Storage cabinet panels	18mm thick matte black engineered wood with laminate finish
Modesty panel	18mm thick curved matte black engineered wood
Leveling glides	Nylon-base adjustable steel glides at leg bases
Cable grommet	ABS plastic recessed cable port
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed left storage return	Integrated side section combining lockable enclosed cabinet and two open shelves
Curved front modesty panel	Spans central knee opening to block thigh visibility for seated users
Recessed cable grommet	Routes monitor, laptop and power cables through desktop to under-desk space
Adjustable leveling glides	Rotates 10mm vertical travel to level desk on uneven carpet or hard floors
Lockable storage cabinet	Secures confidential files and office supplies with a keyed cam lock
Under-desk cable channel	Routes cables along modesty panel frame to eliminate floor tripping hazards
Open adjustable shelving	Supports two shelves for quick-access binders and office materials, 50mm shelf adjustment increments
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping volume	0.31 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Fits senior management workspaces with integrated storage for files and work materials
Home office for senior professionals	Provides sufficient work surface and storage for full-time remote executive work
Corporate open office manager workstation	Offers privacy via modesty panel and dedicated storage without reception-style height
Meeting room leader work position	Provides large surface for document review and laptop use during internal meetings
Recommended pairing	Pairs with high-back leather executive chairs and mobile filing pedestals for expanded storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for commercial use
EN 13722:2004	Office furniture, storage units strength and durability requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to static load and durability testing
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to cabinet and shelf performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk structural performance
GB/T 4897.3-2015	Particleboard for furniture use, applicable to engineered wood panel components
GB/T 17657-2013	Test methods for surface physical and chemical properties of wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural performance;
2. GB/T 4897.3-2015: Particleboard for furniture use, applicable to engineered wood panel components;
3. GB/T 17657-2013: Test methods for surface physical and chemical properties of wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-EXEC-1830-GRYBLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-EXEC-1830-GRYBLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-EXEC-1830-GRYBLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

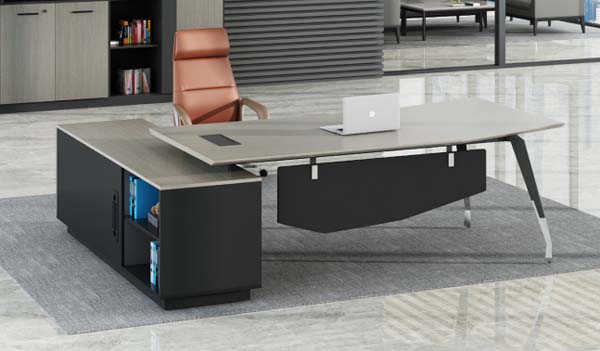

Introducing the L-Shaped Executive Office Desk with Fixed Left Storage Return, model L-EXEC-1830-GRYBLK, an unbranded modern executive workspace solution designed for professional office environments. The desk features a distinct corner configuration with a fixed left integrated storage return, forming a balanced L-shaped layout anchored by angled metal leg supports for a sleek, contemporary silhouette. A curved matte black modesty panel spans the central knee opening, creating a streamlined front profile while preserving seated user privacy, and outboard legs are finished with polished silver chrome tips for a refined visual accent.
Constructed for long-term daily use, the desk pairs a 25mm E1-grade engineered wood work surface with a matte grey high-pressure laminate top, finished with 2mm thick matching matte PVC edge banding to protect against impact and wear. The support frame is built from powder-coated black steel, while storage cabinet panels and the curved modesty panel use 18mm thick matte black engineered wood with a matching laminate finish. Nylon-base adjustable steel glides at each leg base enable stable placement on uneven carpet or hard floors, and the desk includes an ABS plastic recessed cable port paired with an under-desk cable channel routed along the modesty panel frame to organize power and device cords, eliminating floor tripping hazards.
Functional design elements support efficient executive work: the fixed left return integrates a key-locked enclosed cabinet to secure confidential files and supplies, alongside two adjustable open shelves with 50mm adjustment increments for quick-access binders and materials. The desktop supports 136 kg of static load, with enclosed cabinet shelves rated for 50 kg, drawer slides rated for 45 kg across 50000 open/close cycles, and hinges rated for 80000 cycles; the laminate surface resists abrasion across 2000 use cycles. The 1830 x 1830 x 762 mm desk offers 600 mm knee clearance height and 1200 mm knee clearance width, with an 800 mm deep main work surface and 1400 mm wide side return for ample task space.
This desk is suited for private executive offices for senior management, home offices for full-time remote senior professionals, corporate open office manager workstations, and dedicated leader work positions in meeting rooms, pairing seamlessly with high-back leather executive chairs and mobile filing pedestals for expanded storage. For procurement, note each unit ships across multiple cartons, requires 40 minutes of assembly per set, and carries a net product weight of 48 kg; plan for appropriate freight handling and installation scheduling to support smooth deployment.

L-Shaped Executive Office Desk with Fixed Left Storage Return Specifications
