PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	80 kg
Drawer static load per drawer	25 kg
Cabinet body static load	120 kg
Recommended user capacity	1 person
Net weight	145 kg
Top localized impact-bearing area	15 kg on a 300 x 300 mm area
Drawer slide durability	50,000 open-close cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25 mm engineered wood board with woodgrain melamine facing and a 50 mm built-up edge profile
Work zone surface	Dark grey laminate or leather-grain writing surface bonded to the main top
Cabinet exterior	Brown woodgrain melamine board on drawer fronts with dark grey laminate end panels
Edge banding	2 mm PVC or ABS edge banding in dark grey and light trim lines
Drawer hardware	Steel side-mount or concealed drawer slides with black recessed pull channels
Cable port	Black rectangular plastic or aluminum grommet with two small socket or retaining details

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main desk and perpendicular return create separate computer work, writing, and meeting-side zones
Storage support	Left box cabinet and right drawer credenza support the desktop while providing enclosed storage locations
Drawer organization	Right credenza provides two visible front-facing drawers plus adjacent cabinet compartments for files and stationery
Cable management	Rear rectangular port routes monitor and power cables from desktop to under-desk cavity

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a manager or director office where the long top supports a computer, documents, and printer while the return provides storage and meeting space.
Administrative workstation	Suitable for procurement, finance, or administrative staff requiring locking drawers, cable routing, and extended lateral work surface.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desk safety, strength, and durability requirements for a commercial workstation.
EN 527-2:2002	Mechanical test methods for office desks, applicable to static load and stability verification.
EN 15372:2016	Durability and strength requirements for non-domestic storage furniture used in the credenza.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk performance standard covering static load, stability, fatigue, and durability.
ANSI/BIFMA X5.9-2019	Storage cabinet performance standard applicable to drawers, locks, slides, and cabinet structure.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, and assembly stability.
GB/T 3325-2017	Metal furniture hardware test reference for drawer slides, handles, and load-bearing metal components.
GB/T 10357.1-2089	Table mechanical safety and strength tests, including tabletop static load and stability checks.
GB 18580-2017	Formaldehyde emission limit for wood-based panels used in the desk and cabinet substrates.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, and assembly stability.;
2. GB/T 3325-2017: Metal furniture hardware test reference for drawer slides, handles, and load-bearing metal components.;
3. GB/T 10357.1-2089: Table mechanical safety and strength tests, including tabletop static load and stability checks.;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels used in the desk and cabinet substrates.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L-2400-WG-DUAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L-2400-WG-DUAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L-2400-WG-DUALOpen Export Tool

Quick Actions

Post an RFQ

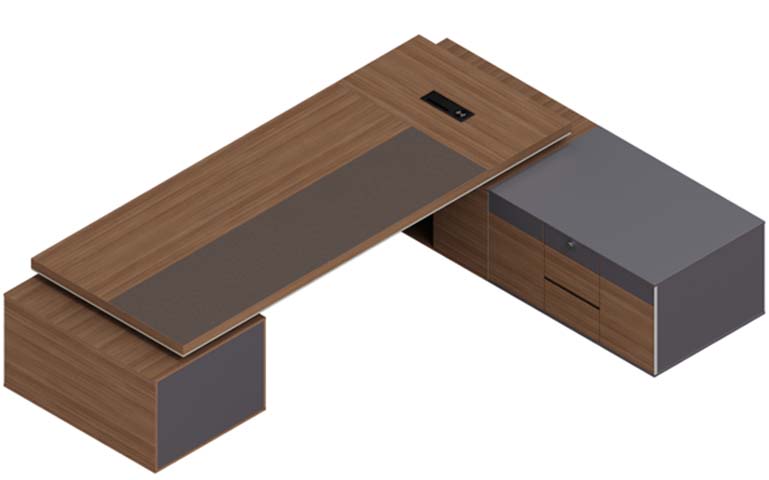

Product Description

The L-Shaped Panel Executive Desk with Dual Storage Credenzas and Cable Port is a substantial single-user workspace designed for offices that require broad surface area, integrated storage, and a structured executive appearance. Its L-shaped layout combines a main desk with a perpendicular return, creating distinct zones for computer work, writing, and meeting-side interaction. The visual character is defined by brown woodgrain melamine drawer fronts, dark grey laminate or painted panels, and a dark grey work-zone surface with a laminate or leather-grain finish. Dark grey edge banding with light trim lines gives the desk a composed, panel-built look appropriate for private offices and professional administrative settings. Construction centers on wood-grain melamine-faced engineered board, with a 25 mm engineered wood desktop substrate and a 50 mm built-up edge profile. The 50 mm finished top thickness contributes to the desk’s substantial visual profile, while integrated cabinet supports and an 80 mm main support section with a 2 mm metal wall provide structural support. Storage components form part of the desk structure: a left box cabinet and right drawer credenza support the top while supplying enclosed storage. The right credenza includes two visible front-facing drawers and adjacent cabinet compartments suited to files and stationery. Drawers operate on steel side-mount or concealed slides with black recessed pull channels, and the slide hardware is rated for 50,000 open-close cycles. PVC or ABS edge banding, black cable-management hardware, metal slides, and integrated supports complete the specified material package. Functionally, the desk separates tasks without requiring separate furniture pieces. The long top can accommodate a computer, documents, and a printer, while the return offers additional work or meeting space and nearby storage. A rear rectangular black plastic or aluminum cable port routes monitor and power cables from the desktop into the under-desk cavity, helping reduce visible clutter. The opening is 80 mm in diameter, with a cable tray depth of 120 mm and retaining details for cable organization. This model is well suited to a manager or director office, and also works as an enhanced workstation for procurement, finance, or administrative personnel who need extended lateral space, file storage, and cable routing. Residential use is most practical in a dedicated home office with room for the return and storage access. Procurement planning should account for the desk’s 145 kg net weight and multi-piece packaging. The listed logistics reference two cartons, while dimensional and gross-weight details reference four cartons, so buyers should confirm shipment configuration before delivery. Assembly time is referenced at 40 minutes per set. Rated capacities include an 80 kg distributed desktop static load, 25 kg per drawer, and 120 kg for the cabinet body, making load planning and professional placement advisable. The product is unbranded and supplied under model ED-L-2400-WG-DUAL.

L-Shaped Panel Executive Desk with Dual Storage Credenzas and Cable Port Specifications
