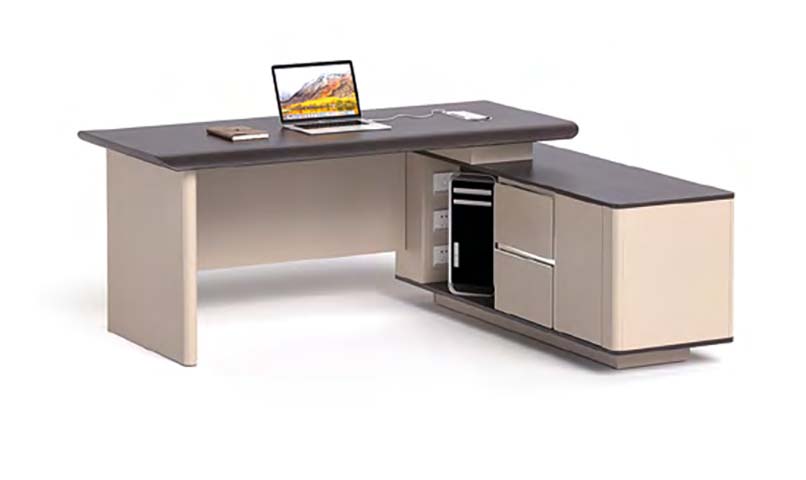

Product supplierL-Shaped Executive Office Desk with Integrated Side Storage Cabinet, Dark brown wood-grain high-pressure laminate or melamine face on engineered-wood substrate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1600 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 100 kg total, including laptop, documents, monitor, and telephone area | |
|---|---|---|
| Storage drawer static load | 15 kg per drawer for files and stationery | |
| Closed cabinet shelf load | 20 kg per horizontal storage level | |
| Suggested user weight allowance | 120 kg seated user for normal office-task use | |
| Desktop impact allowance | 25 kg concentrated point load on a 200 x 200 mm area | |
| Net weight reference | 95 kg for desk, panels, cabinet, hardware, and removable shelves | |
| Drawer slide operating life target | 50,000 open-close cycles as a procurement durability requirement | |
| Suggested seating capacity | 1 executive user plus 1 visitor at the side return | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | Dark brown wood-grain high-pressure laminate or melamine face on engineered-wood substrate | |
|---|---|---|
| Cabinet panels | Warm beige melamine-faced engineered-wood panels with 25 mm nominal thickness on main vertical faces | |
| Edge treatment | Dark PVC or ABS edge banding, 2 mm nominal thickness, with rounded front profile | |
| Drawer fronts and door | Beige laminate panel fronts with integrated horizontal metallic-looking pulls and soft square edges | |
| Drawer slides | Side-mounted ball-bearing metal slides, 45 mm nominal width and 400 mm nominal travel | |
| Fasteners and connectors | Cam-lock fittings, wood screws, metal brackets, and floor-leveler hardware, 15 mm nominal connector diameter |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | The right return combines a 280 mm CPU bay, two stacked drawers, and one full-height closed compartment for files and equipment | |
|---|---|---|
| Cable and power routing | Cables can route from desktop devices through the cabinet-side chase to three rear access plates in the CPU compartment | |
| CPU ventilation and access | The open tower bay provides front access and passive side ventilation for a standard mini-tower or small-form-factor computer | |
| Work zones | The 1800 mm main surface supports laptop or monitor work, while the 1200 mm return provides writing, filing, printer, or meeting-adjacent space |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 1850 x 850 x 160 mm for the main worktop and edge-protected panels | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suits a manager or director office where laptop work, document storage, and a CPU tower must be integrated in one L-shaped workstation | |
|---|---|---|
| Managerial meeting area | The return surface supports visitor discussions, signature documents, a printer, or temporary placement of meeting materials |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
